Remove/Install Seat Ventilation Motors On Front Seat Cushion - AR91.30-P-1952XG

Model 463

as of model year 2019

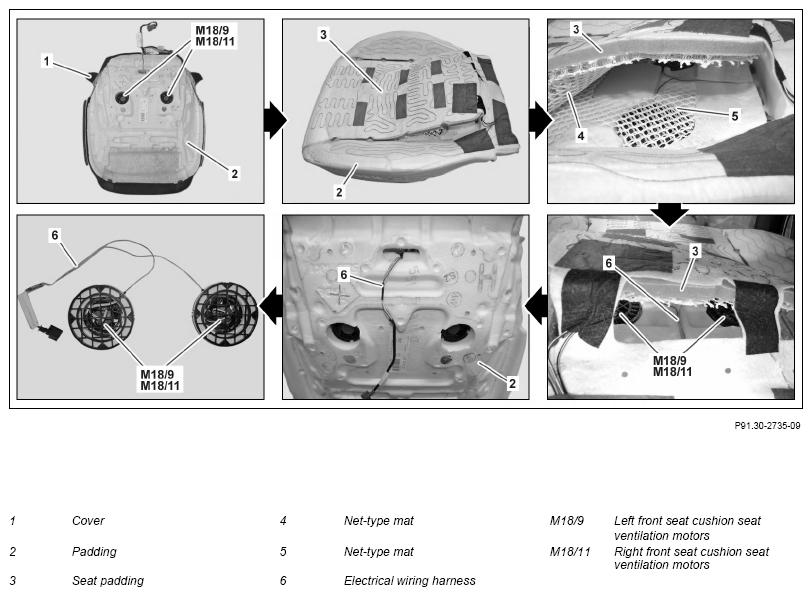

Fig 1: Seat Ventilation Motors On Front Seat Cushion Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover (1) from padding (2).		AR91.18-P-1801XG
2	Separate seat cushion (3) together with net-type mat (4) from padding (2).	In the area of the front left seat cushion seat ventilation motors (M18/9) or the front right seat cushion seat ventilation motors (M18/11).
3	Fold net-type mat (5) to one side.
4	Carefully release front left seat cushion seat ventilation motors (M18/9) or front right seat cushion seat ventilation motors (M18/11) from the padding (2).
5	Feed electrical wiring harness (6) through the padding (2).
6	Remove front left seat cushion seat ventilation motors (M18/9) or front right seat cushion seat ventilation motors (M18/11).	Note routing of electrical wiring harness (6).
7	Install in reverse order.
