Remove/Install Seat Adjustment Motor For Seat Inclination Adjustment - AR91.29-P-0005XG
Model 463
as of model year 2019

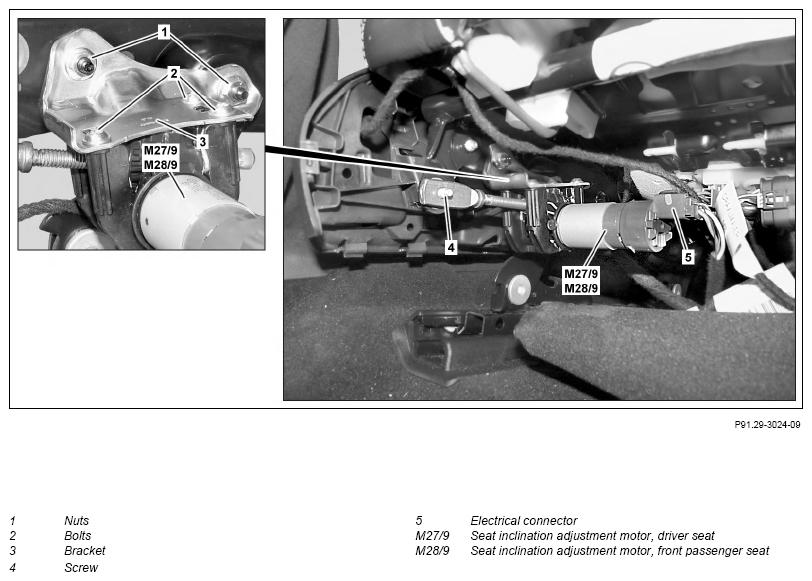

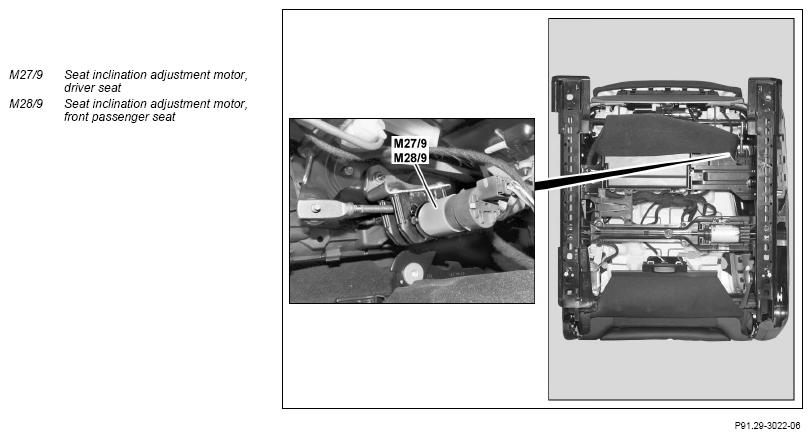

Fig 1: Seat Adjustment Motor For Seat Inclination Adjustment Components Location - Model 463 As Of Model Year 2019
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Move front seat all the way back and all the way up. | ||
| 2 | Switch off ignition and store transmitter key outside of transmitter range (at least 2 m). | ||
| 3 | Disconnect electrical connector (5). | ||
| 4 | Remove screw (4). | *BA91.29-P-1004-01B | |
| 5 | Unscrew nuts (1). | ||
| 6 | Remove driver seat inclination adjustment seat adjustment motor (M27/9) or front passenger seat inclination adjustment seat adjustment motor (M28/9) together with bracket (3). | ||
| 7 | Remove screws (2) and remove driver seat inclination adjustment seat adjustment motor (M27/9) or front passenger seat inclination adjustment seat adjustment motor (M28/9) from bracket (3). | Only when replacing the driver seat inclination adjustment seat adjustment motor (M27/9) or the front passenger seat inclination adjustment seat adjustment motor (M28/9). | |
| 8 | Install in reverse order. |
SEAT ADJUSTMENT
| Number | Designation | Model 463 up to model year 2019 | Model 463 as of model year 2019 | |
|---|---|---|---|---|
| BA91.29-P-1004-01B | Bolt, linkage for electric motor for seat cushion inclination to seat adjustment unit upper section | Nm | - | 8 |
