Remove/Install Right Rear Seat Backrest Cover - AR91.18-P-1878XG
Model 463
as of model year 2019
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Remove/install | |||
| 1 | Remove rear seat backrest. | Only 40 % seat backrest. | AR91.12-P-1620XG |
| 2 | Remove seat belt end fitting screw from lower rear seat. | AR91.12-P-1000XG | |
| *BA91.40-P-1001-01C | |||
| 3 | Unclip control lever (2) from frame of rear seat backrest. | ||
| 4 | Remove covers (4). | ||
| 5 | Unclip covers (4a). | ||
| 6 | Remove trim of rear seat backrest. | AR91.12-P-1131XG | |

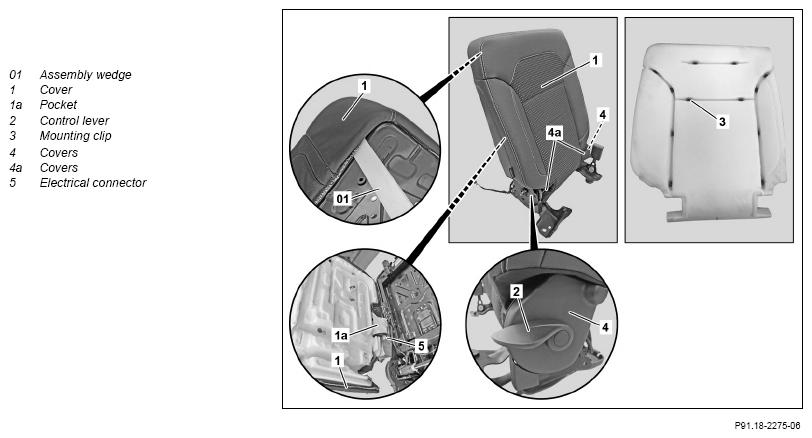

| 7 | Remove cover (1) with long wedge (01) from the frame of rear seat backrest. | Fig 2 | |
| 8 | Release and disconnect electrical connector (5) at sidebag. | ||
| 9 | Disconnect electrical connector of seat heating. | Model 463 as of model year 2019 with code PA9 (Active Multicontour Seat package) |
|
| 10 | Remove cover (1) and padding from frame of rear seat backrest. | ||
| 11 | Unhook staple wires of cover (1) at padding from retaining clips (3). | ||
| 12 | Remove cover (1). | ||
| 13 | Install in reverse order. |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 463 up to model year 2019 | Model 463 as of model year 2019 | |
|---|---|---|---|---|
| BA91.40-P-1001-01C | Bolt on belt end fitting | Nm | 35 | 35 |
