Remove/Install Rear Seat Belt Buckle - AR91.40-P-1516XG
Model 463
as of model year 2019
Shown on 40% seat

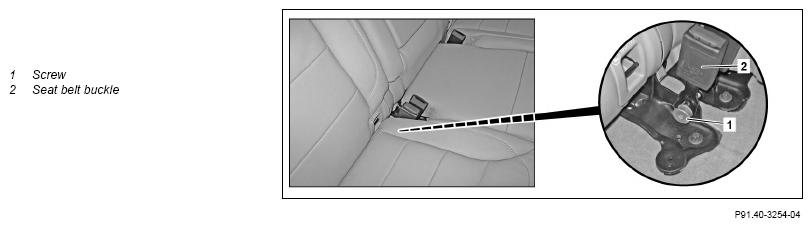

Fig 1: Rear Seat Belt Buckle Components Location - Model 463 As Of Model Year 2019 (Shown On 40% Seat)
Shown on 60% seat

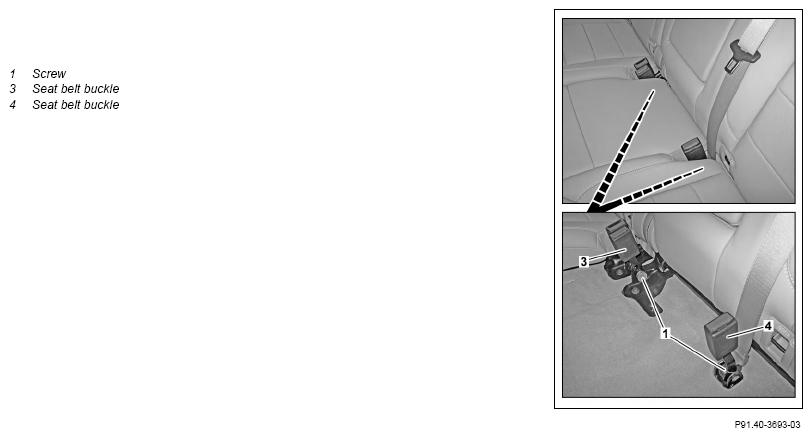

Fig 2: Rear Seat Belt Buckle Components Location - Model 463 As Of Model Year 2019 (Shown On 60% Seat)
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Remove/install | |||
| 1.1 | Fold up 40% seat cushion. | When removing the seat belt buckle (2). | |
| 1.2 | Fold up 60% seat cushion. | When removing seat belt buckle (3) or seat belt buckle (4). | |
| 2.1 | Disconnect electrical connector from switch on seat belt buckle (2). | When removing the seat belt buckle (2). |
|
| 2.2 | Disconnect electrical connector from switch on seat belt buckle (3) or switch on seat belt buckle (4). | When removing seat belt buckle (3) or seat belt buckle (4). | |
| 3 | Unscrew bolt (1). | *BA91.40-P-1007-01C | |
| 4.1 | Remove seat belt buckle (2). | When removing the seat belt buckle (2). | |
| 4.2 | Remove seat belt buckle (3) or seat belt buckle (4). | When removing seat belt buckle (3) or seat belt buckle (4). | |
| 5 | Install in reverse order. |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 463 up to model year 2019 | Model 463 as of model year 2019 | |
|---|---|---|---|---|
| BA91.40-P-1007-01C | Bolt, rear belt buckle | Nm | 35 | 35 |
