Remove/Install Heated Cushion On Rear Seat Cushion - AR91.30-P-0010GW
Model 463
as of model year 2013 up to model year 2019
/FACELIFT 2012

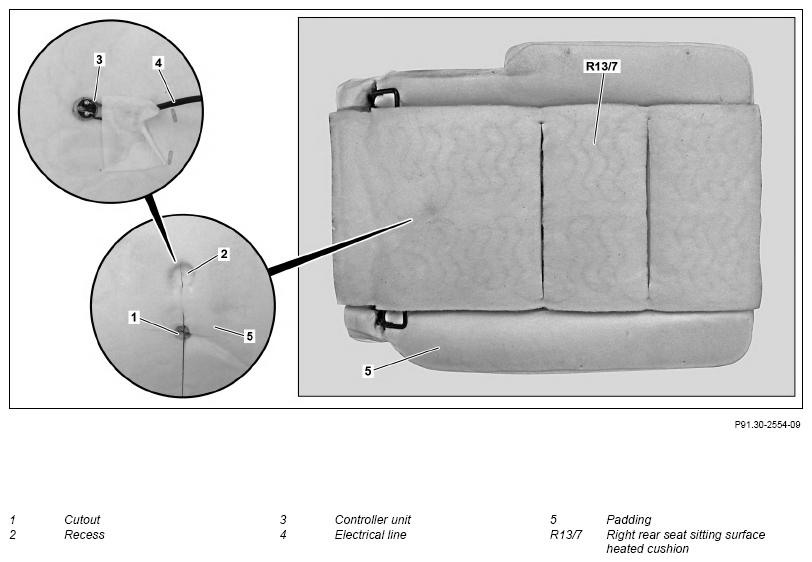

Fig 1: Heated Cushion On Rear Seat Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019 /Facelift 2012
| Remove | |||
| 1 | Remove cover at seat backrest | Model 463 (except 463.242) as of model year 2013 up to model year 2019 | AR91.18-P-1870GW |
| 2 | Remove old heater pad (R13/7) carefully | ||
| Install | |||
| 3 | Apply adhesive to padding (5) | Quick-acting adhesive, Loctite 495 | *BR00.45-Z-1033-02A |
| 4 | Thread in electric line (4) or controller unit (3) of new heater pad (R13/7) into cutout (1) or recess (2) on padding (5) | ||
| 5 | Align new heater pad (R13/7) on padding (5) and glue on | ||
| 6 | Install cover at seat backrest | Model 463 (except 463.242) as of model year 2013 up to model year 2019 | AR91.18-P-1870GW |
| 7 | Perform function test for new heater pad (R13/7) |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1033-02A | Quick-acting adhesive, Loctite 495 | Henkel AG & Co. KGaA |
