Remove/Install Front Seat Backrest Seat-Back Lining - AR91.10-P-1910GW
Model 463 (except 463.242)
as of model year 2013 up to model year 2019
/FACELIFT 2012

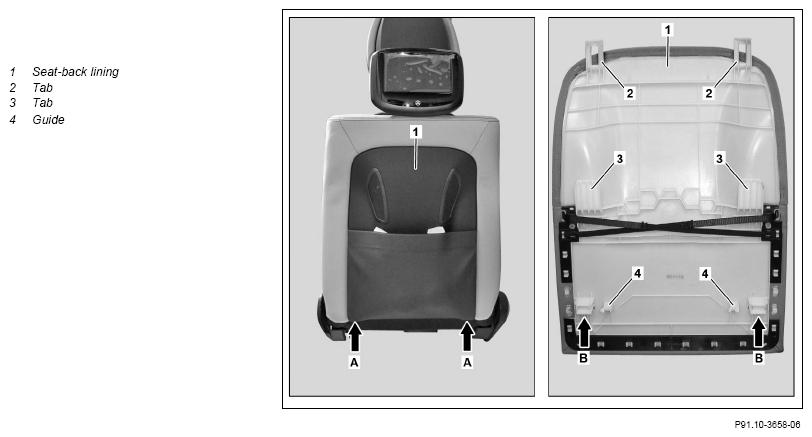

Fig 1: Front Seat Backrest Seat-Back Lining Components Location - Model 463 (Except 463.242) As Of Model Year 2013 Up To Model Year 2019 /Facelift 2012
| Remove/install | |||
| 1 | Move left or right front seat forward and set backrest to upright position | ||
| 2 | Remove seat-back lining (1) at bottom (arrows A) until catch hooks (arrows B) can be lifted using a screwdriver | ||
| 3 | Release catch hooks (arrows B) and remove seat-back lining (1) at bottom from backrest frame until seat-back lining (1) can be removed in a downward direction | ||
| 4 | Remove seat-back lining (1) in a downward direction | ||
| 5 | Install in the reverse order |
