Remove/Install Front Seat Backrest Cover - AR91.18-P-1820GW

Model 463

as of model year 2013 up to model year 2019

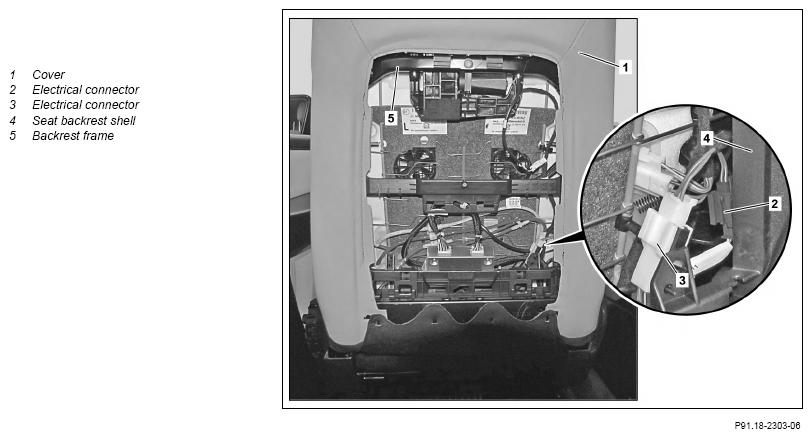

Fig 1: Front Seat Backrest Cover Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear display	Model 463 (except 463.202) as of model year 2013 up to model year 2019 with code EM7 (Rear compartment entertainment package)	AR82.60-P-7720GW
2	Remove seat-back lining from front seat backrest	Model 463.242 as of model year 2013 up to model year 2019	AR91.10-P-1910GGG
		Model 463 (except 463.242) as of model year 2013 up to model year 2019/FACELIFT 2012	AR91.10-P-1910GW
3	Remove front seat head restraint motor	Model 463 as of model year 2013 up to model year 2019	AR91.29-P-1432GW
4	Remove left and right head restraint guides	Model 463 (except 463.242) as of model year 2013 up to model year 2019/FACELIFT 2012	AR91.16-P-0050GW
5	Disconnect electrical connector (3)	Note routing and mounting of electrical wiring harness.
6	Disconnect electrical connection (2)
7	Guide electrical connector for rear entertainment through cover (1) and padding (7)
8	Remove side trim from side airbag
9	Unhook cover (1) from backrest frame (5)
10	Unclip cover from backrest frame (5)

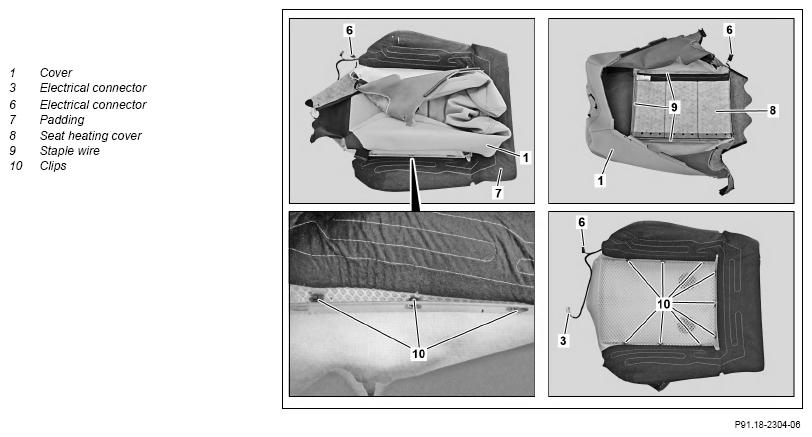

11	Remove cover (1) with padding (7)	Ensure that padding (7) is seated correctly in backrest frame.
12	Disconnect electrical connector (6)	Check for correct installation position of electrical connector (6) in padding recess (7).
13	Unclip staple wires (9) from padding (7)
14	Remove cover (1) from padding (7)
15	Install in the reverse order
