Remove/Install Front Passenger Knee Airbag - AR91.60-P-0100XG

Model 463

as of model year 2019

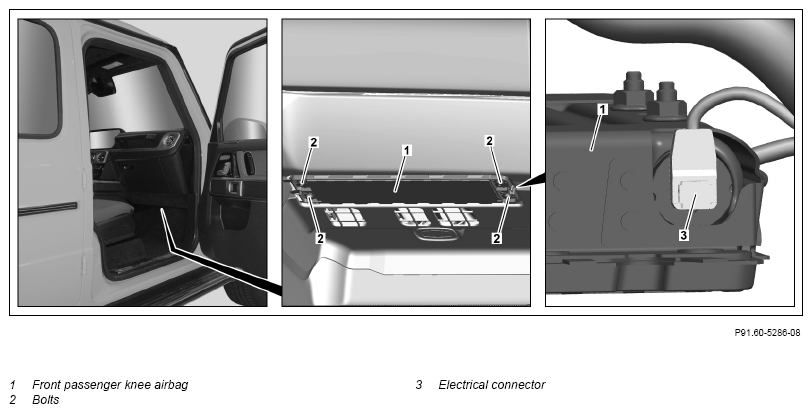

Fig 1: Front Passenger Knee Airbag Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Adjust driver's seat to the rear.
2	Switch off ignition and store transmitter key outside of transmitter range (at least 2 m).
3	Disconnect ground line of battery.		AR54.10-P-0003XG
4	Remove screws (2) and lower the front passenger knee airbag (3) until electrical connector (4) is accessible.	Bolt, knee airbag to holder	*BA91.60-P-1008-01B
5	Release and disconnect electrical connector (4).	Make sure that the electrical connector (4) engages properly.
6	Remove front passenger knee airbag (3).
7	Install in reverse order.
8	Check Supplemental Restraint System (SRS) using vehicle diagnosis system.	When replacing the front passenger knee airbag (3).
			AD00.00-P-2000-04B

AIRBAG

Number	Designation		Model 463 as of model year 2019
BA91.60-P-1008-01B	Bolt, knee airbag to holder	Nm	5
