(Remove/Install Multicontour Seat Control Valve - AR91.25-P-1710G)
Model 463 up to 11/30/00
up to model year 2000
with code SK2 (Left electrically adjustable front seat with orthopedic backrest)
with code SK3 (Right electrically adjustable front seat with orthopedic backrest)
| Remove/install | |||
| 1 | Move front seat backrest forward | ||

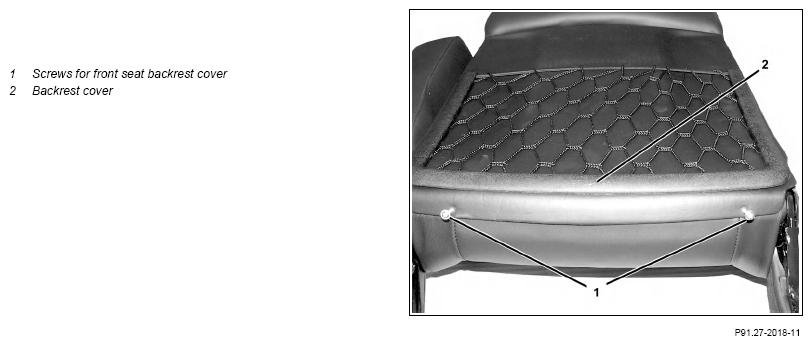

| 2 | Unscrew screws for front seat backrest cover (1) and remove backrest cover (2) | ||

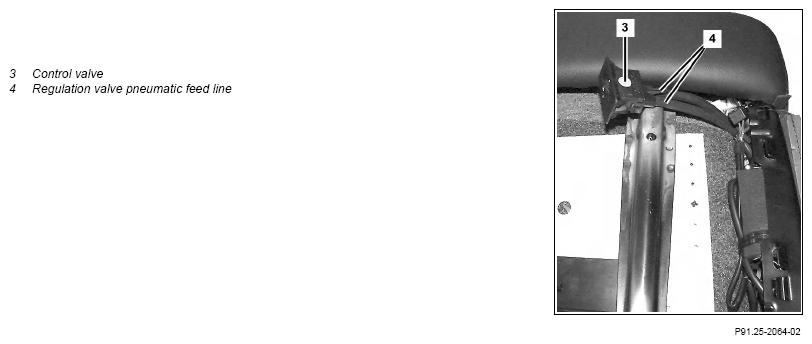

| 3 | Pull regulation valve (3) out of front seat backrest | ||
| 4 | Disconnect regulation valve pneumatic feed line (4) from regulation valve (3) | ||
| 5 | Install in the reverse order | ||
| 6 | Check function of multicontour seat |
