(Remove/Install Air Pump For Multicontour Seat - AR91.25-P-1430GW)
MODEL 463
with CODE (PA1) Seating comfort package
up to model year 2013
/model refinement package 2012
| Remove/install | |||
| 1 | Move multicontour seat to foremost position | ||

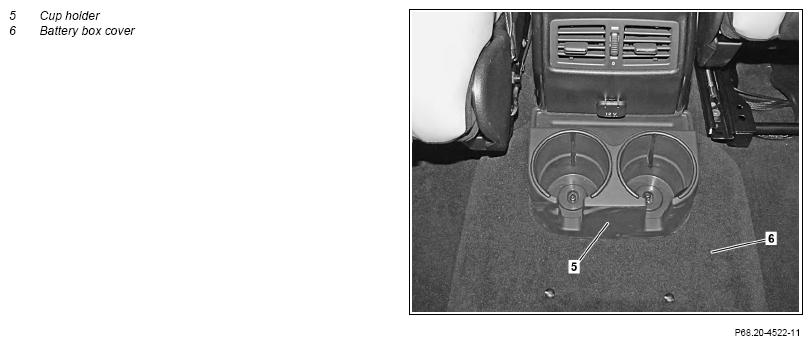

| 2 | Remove cup holder (5) | Vehicles with code (FG2) Cup holder at front and rear | |
| 3 | Remove battery box cover (6) from battery in rear footwell | ||
| 4 | Fold floor covering at right rear upwards | ||

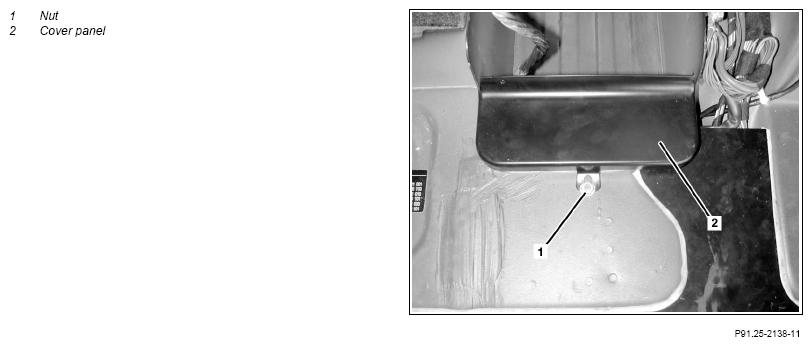

| 5 | Remove cover panel (2) | ||
| 6 | Remove foam material | ||

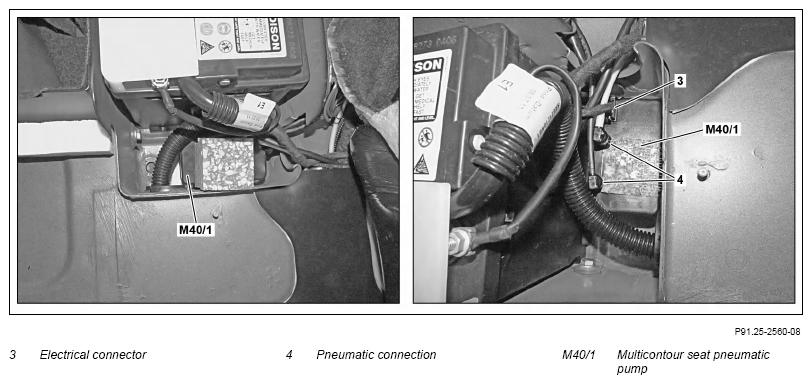

| 7 | Detach pneumatic connections (4) | ||
| 8 | Remove multicontour seat pneumatic pump (M40/1) | ||
| 9 | Disconnect electrical connector (3) | ||
| 10 | Lift out multicontour seat pneumatic pump (M40/1) | ||
| 11 | Install in the reverse order |
