Remove/Install ME-SFI Control Unit - AR07.08-P-1000MNF
Engine 176 in model 463
up to model year 2019
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

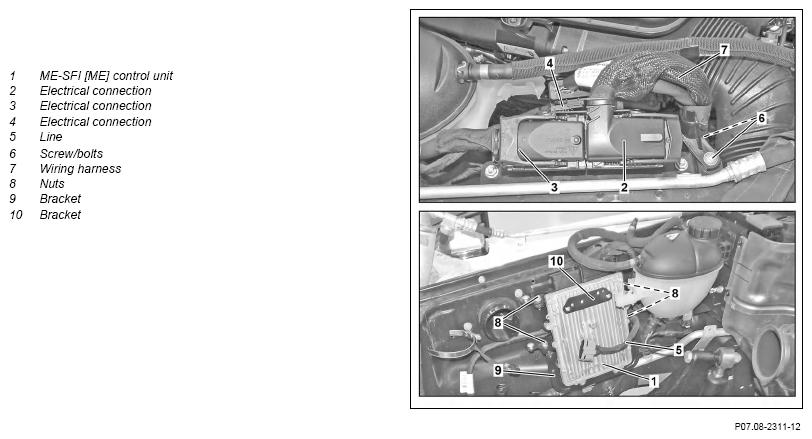

| 1 | Read out variant coding of ME-SFI [ME] control unit (1) with diagnostic system | When installing a new ME-SFI [ME] control unit (1). | |
| AD00.00-P-2000-04A | |||
| 2 | Unclip expansion reservoir and lay down to side with lines connected | AR20.30-P-4950MNA | |
| 3 | Disconnect electrical connections (2, 3) | ||
| 4 | Unclip electrical connection (4) from holder of ME-SFI [ME] control unit (1) | ||
| 5 | Unclip line (5) from holder of ME-SFI [ME] control unit (1) | ||
| 6 | Remove screw/bolts (6) and press wiring harness (7) to one side | ||
| 7 | Remove nuts (8) from holder of ME-SFI [ME] control unit (1) | ||
| 8 | Remove ME-SFI control unit (1) upward with bracket | ||
| 9 | Perform sensor adaptation with diagnostic system | When installing a new ME-SFI [ME] control unit (1). | |
| 10 | Unfasten transport protection from ME-SFI [ME] control unit (1) | When installing a new ME-SFI [ME] control unit (1). | |
| 11 | Personalize and activate ME-SFI [ME] control unit (1) | When installing a new ME-SFI [ME] control unit (1). | |
| 12 | Remove screw/bolts (9) from bracket and remove bracket (9) | When installing a new ME-SFI [ME] control unit (1). | |
| 13 | Remove screw/bolts (10) from bracket and remove bracket (10) | When installing a new ME-SFI [ME] control unit (1). | |
| 14 | Install in the reverse order | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 15 | Carry out an engine test run |
