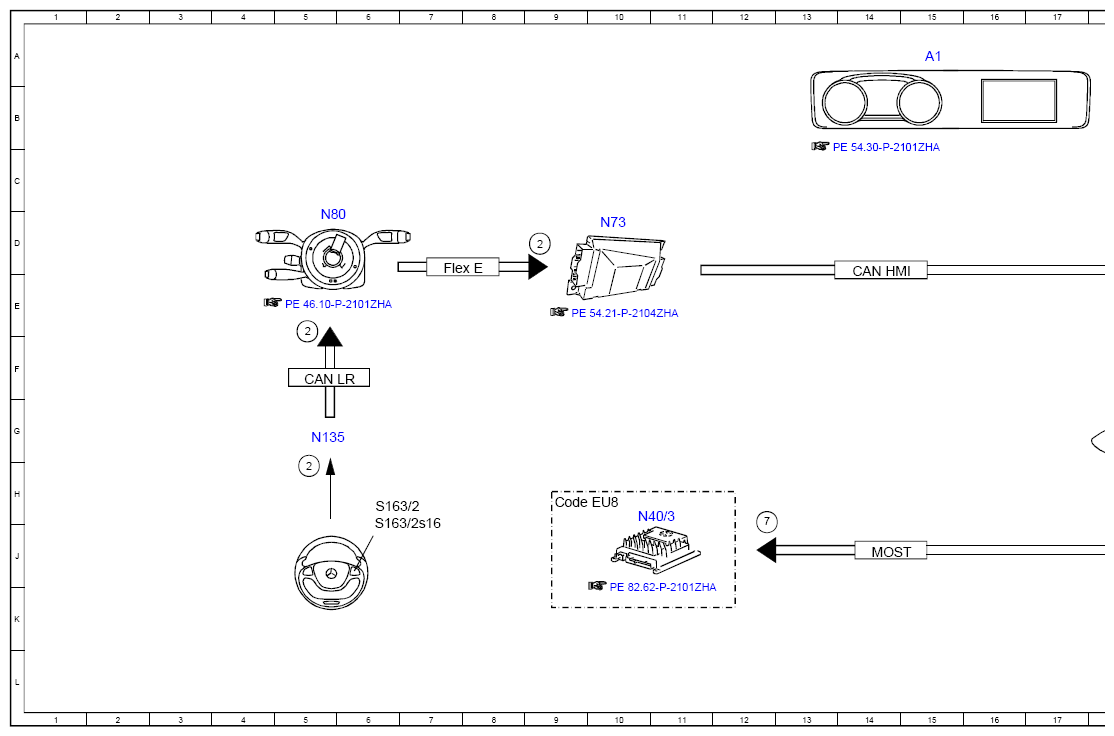

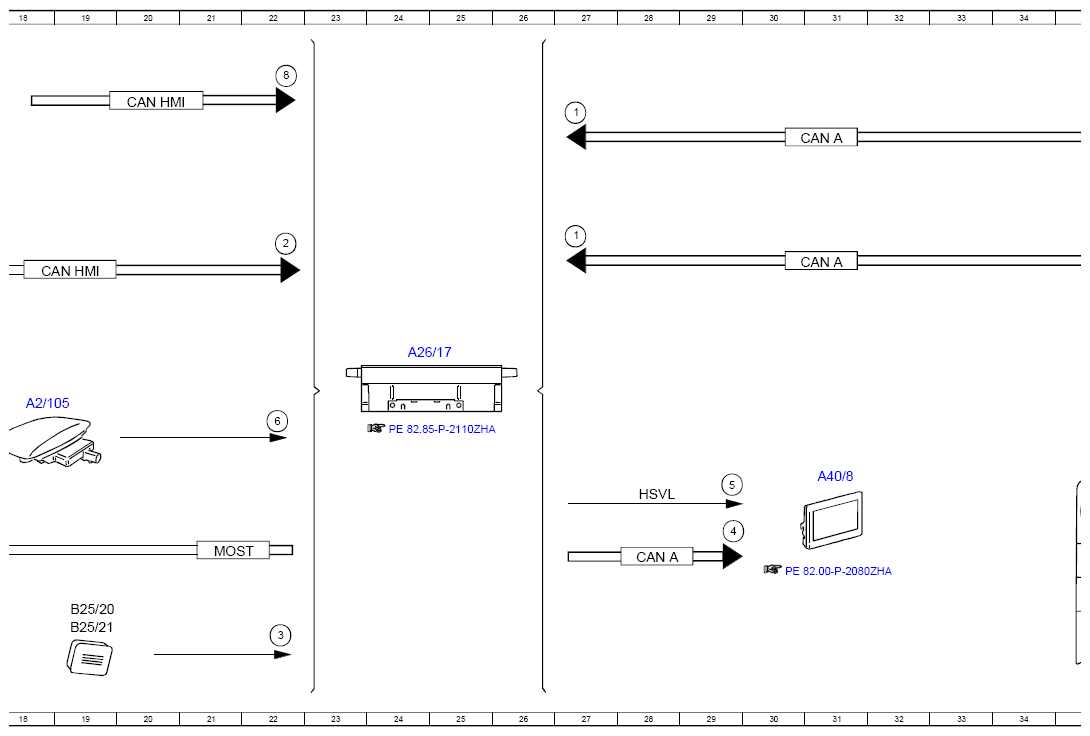

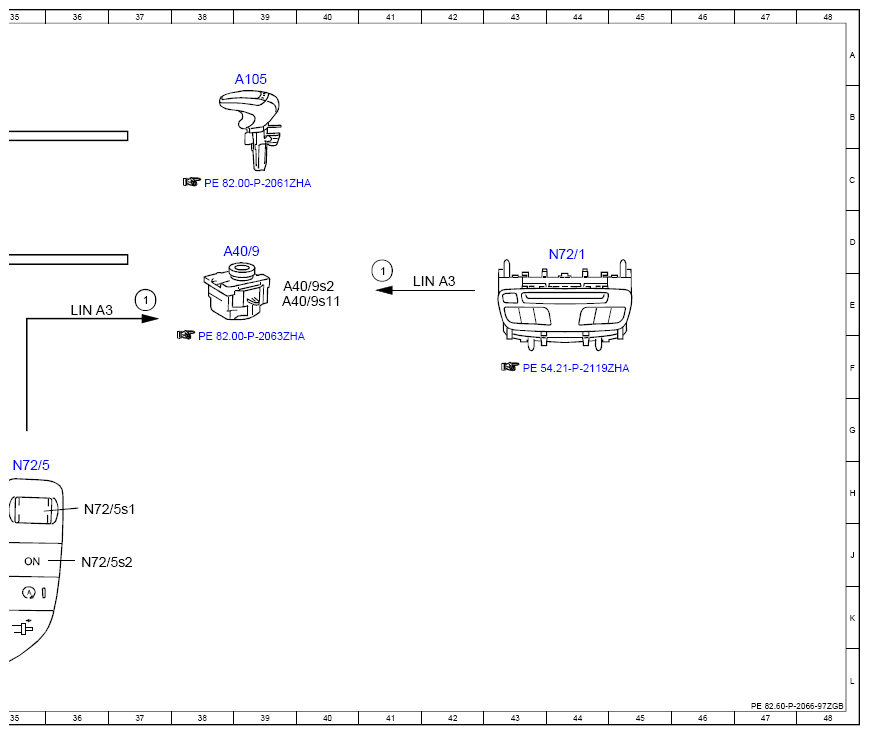

Electrical Function Schematic For SDARS Function - PE82.60-P-2066-97ZGB
Model 463 (except 463.342)
as of model year 2019
with code ZU8 (National version for USA)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 37E |
| 1 | Operation, signal | 41E |
| 1 | Operation, signal | 27B |
| 1 | Operation, signal | 27D |
| 2 | Multifunction steering wheel button group, signal | 9D |
| 2 | Multifunction steering wheel button group, signal | 5E |
| 2 | Multifunction steering wheel button group, signal | 5H |
| 2 | Multifunction steering wheel button group, signal | 22D |
| 3 | Voice input, signal | 22K |
| 4 | Switch-on request, signal | 29J |
| 5 | Audio/COMAND display, actuation | 29H |
| 6 | SDAR antenna, signal | 22G |
| 7 | Audio, signal | 12J |
| 8 | Vehicle speed, signal | 22B |
| A1 | Instrument cluster | 15A |
| A105 | Touchpad | 39A |
| A2/105 | SDARS antenna | 18G |
| A26/17 | Head unit | 24F |
| A40/8 | Audio/COMAND display | 31H |
| A40/9 | Audio/COMAND control panel | 38D |
| A40/9s11 | Audio/COMAND controller | 40E |
| A40/9s2 | "Back" button | 40E |
| B25/20 | Driver hands-free system microphone | 19K |
| B25/21 | Front passenger hands-free system microphone | 19K |
| CAN A | Telematics CAN | 28J |
| CAN A | Telematics CAN | 31B |
| CAN A | Telematics CAN | 31D |
| CAN HMI | User interface CAN | 20B |
| CAN HMI | User interface CAN | 19E |
| CAN HMI | User interface CAN | 14E |
| CAN LR | Steering wheel CAN | 5F |
| Code EU8 | Burmester 3D surround sound system | 9H |
| Flex E | Chassis FlexRay | 7D |
| HSVL | High-speed video link | 28H |
| LIN A3 | LCP LIN | 42E |
| LIN A3 | LCP LIN | 36E |
| MOST | Media Oriented System Transport | 21J |
| MOST | Media Oriented System Transport | 14J |
| N135 | Steering wheel electronics | 5G |
| N40/3 | Sound system amplifier control unit | 10H |
| N72/1 | Upper control panel control unit | 44D |
| N72/5 | Right lower control panel | 35H |
| N72/5s1 | Volume control button | 36H |
| N72/5s2 | "ON" button | 36J |
| N73 | Electronic ignition switch control unit | 10D |
| N80 | Steering column module control unit | 5D |
| S163/2 | Head unit multifunction steering wheel button group | 6H |
| S163/2s16 | Volume control switch | 6J |
