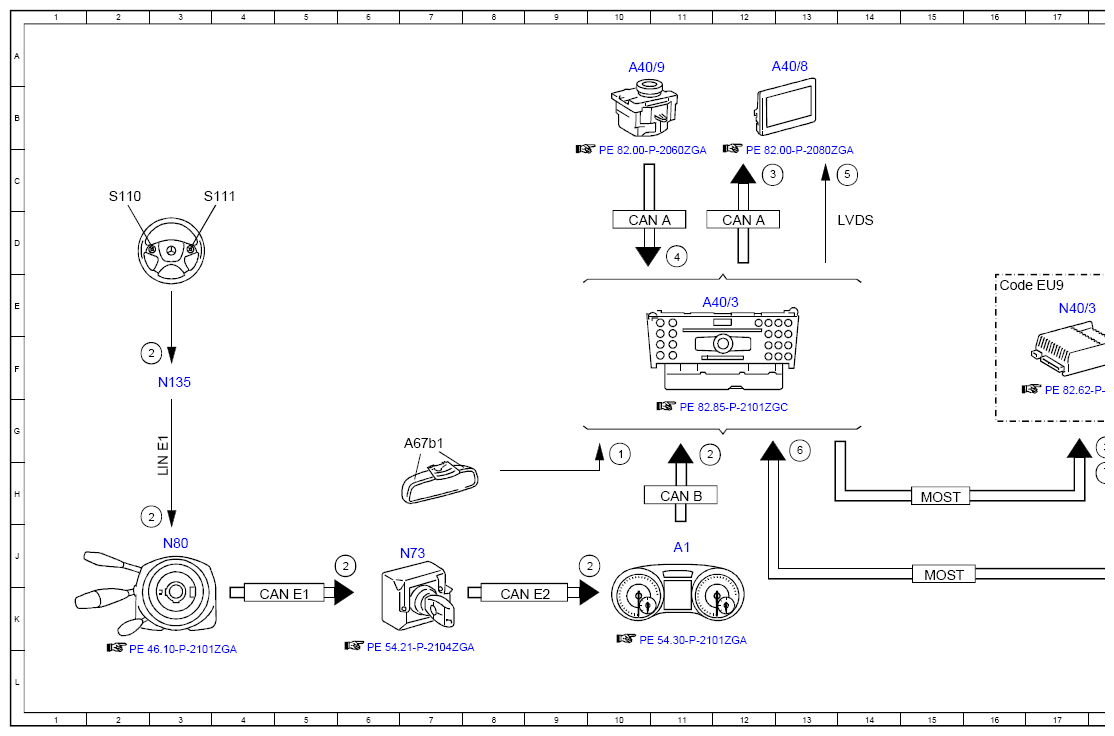

Electrical Function Schematic For SDAR Function - PE82.60-P-2060-97ZGA
Model 463
as of model year 2013 up to model year 2017
with code ZU8 (National version for USA)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Voice input, signal | 10G |
| 2 | Multifunction steering wheel button group, signal | 3H |
| 2 | Multifunction steering wheel button group, signal | 10J |
| 2 | Multifunction steering wheel button group, signal | 3F |
| 2 | Multifunction steering wheel button group, signal | 11G |
| 2 | Multifunction steering wheel button group, signal | 6J |
| 3 | Switch-on request, signal | 12C |
| 3 | Switch-on request, signal | 18G |
| 3 | Switch-on request, signal | 19J |
| 4 | Audio/COMAND controller, request | 11D |
| 5 | Audio/COMAND display, message | 14C |
| 6 | SDAR antenna, signal | 21H |
| 6 | SDAR antenna, signal | 13G |
| 7 | Audio, signal | 18H |
| A1 | Instrument cluster | 11J |
| A2/82 | Satellite digital audio radio (SDAR) antenna | 20F |
| A40/3 | COMAND operating, display and control unit | 11E |
| A40/8 | Audio/COMAND display | 13A |
| A40/9 | Audio/COMAND control panel | 10A |
| A67b1 | Hands-free system microphone | 7G |
| CAN A | Telematics CAN | 10D |
| CAN A | Telematics CAN | 12D |
| CAN B | Interior CAN | 11H |
| CAN E1 | Chassis CAN 1 | 4K |
| CAN E2 | Chassis CAN 2 | 8K |
| Code EU9 | Surround sound system (Harman/Kardon Logic 7) | 16E |
| LIN E1 | Steering LIN | 3G |
| LVDS | Low voltage differential signal | 14D |
| MOST | Media Oriented System Transport | 15J |
| MOST | Media Oriented System Transport | 15H |
| N135 | LIN converter | 3F |
| N40/3 | Sound system amplifier control unit | 17E |
| N73 | EIS [EZS] control unit | 7J |
| N80 | Steering column module | 3J |
| N87/5 | SDAR control unit | 20J |
| S110 | Left multifunction steering wheel button group | 2C |
| S111 | Right multifunction steering wheel button group | 3C |
