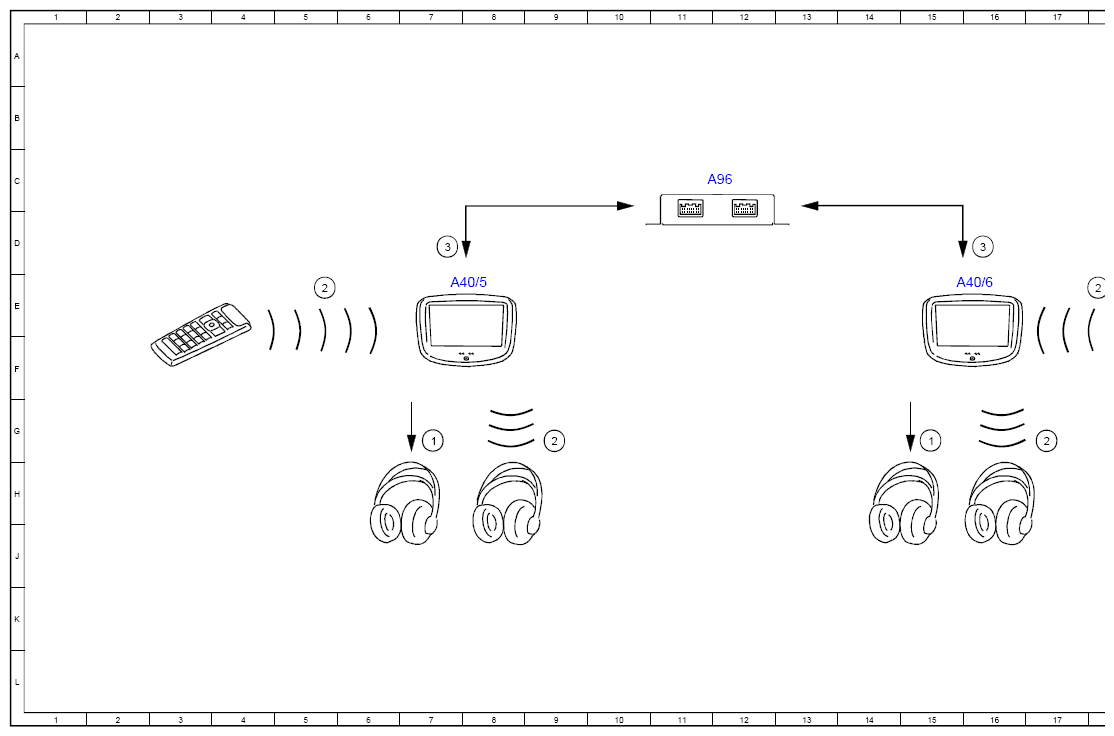

Electrical Function Schematic For Rear Entertainment System - PE82.90-P-2054-97ZGA
Model 463
as of model year 2013 up to model year 2019
with code EM7 (Rear compartment entertainment package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Analog audio signal, signal | 7G |
| 1 | Analog audio signal, signal | 15G |
| 2 | Infrared, signal | 9G |
| 2 | Infrared, signal | 17G |
| 2 | Infrared, signal | 18E |
| 2 | Infrared, signal | 5E |
| 3 | Circuit 15, status | 7D |
| 3 | Circuit 15, status | 16D |
| A40/5 | Left rear display | 7E |
| A40/6 | Right rear display | 16E |
| A96 | Rear entertainment module | 12C |
