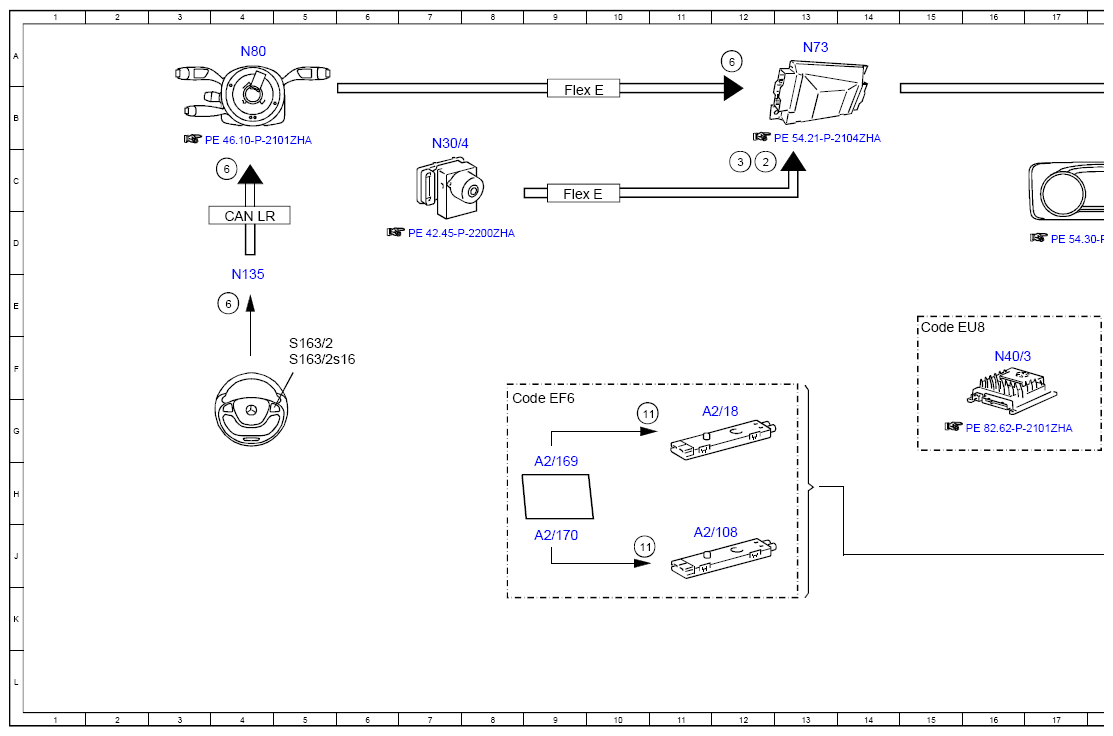

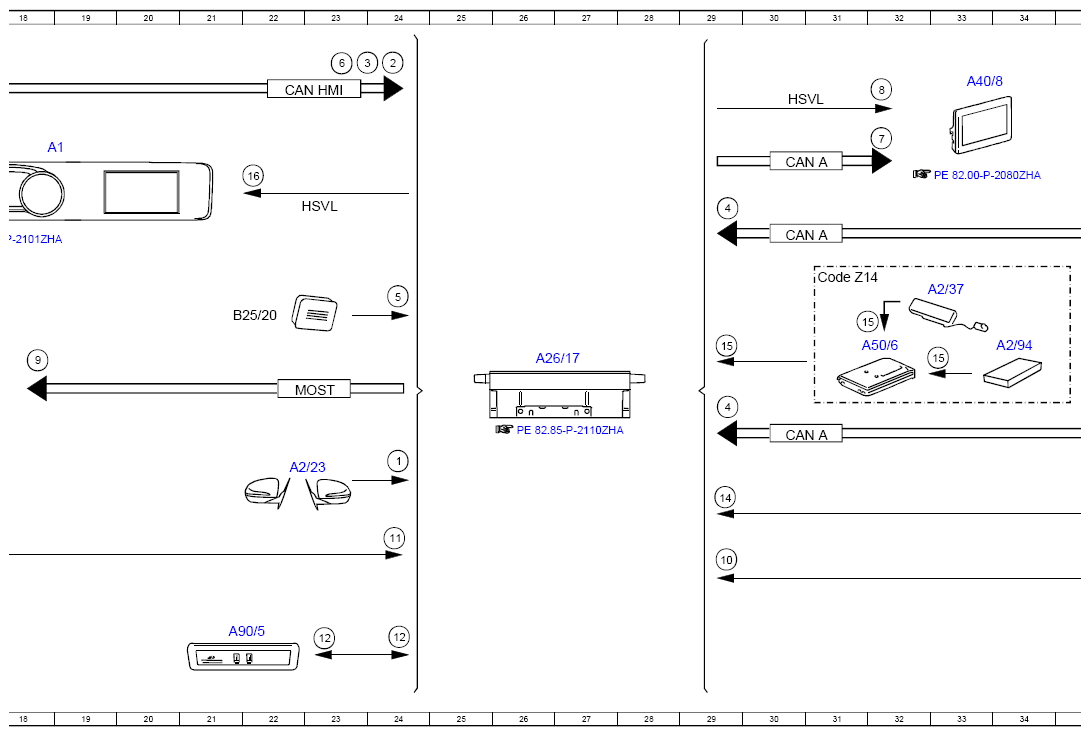

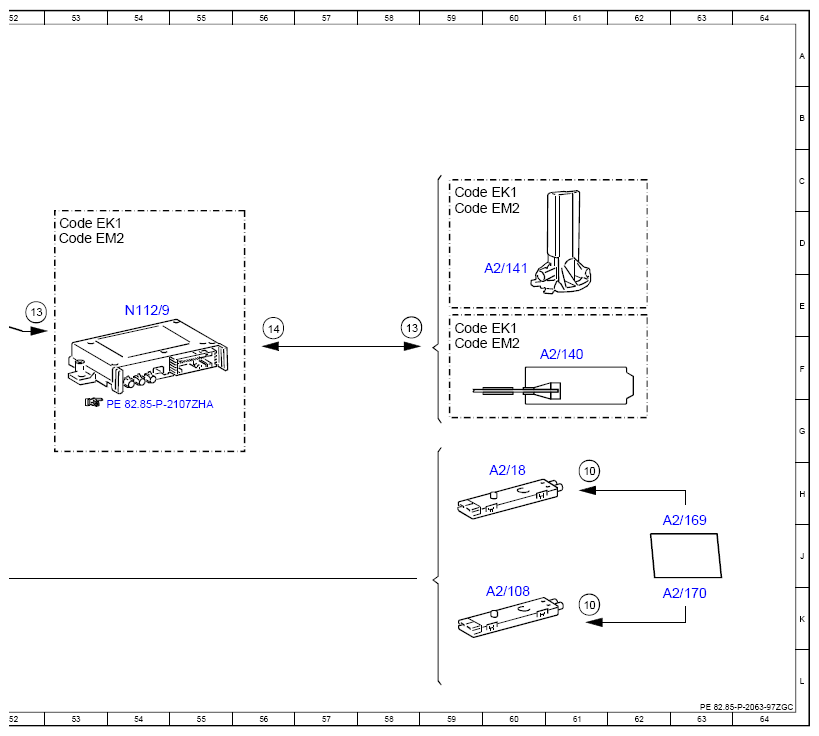

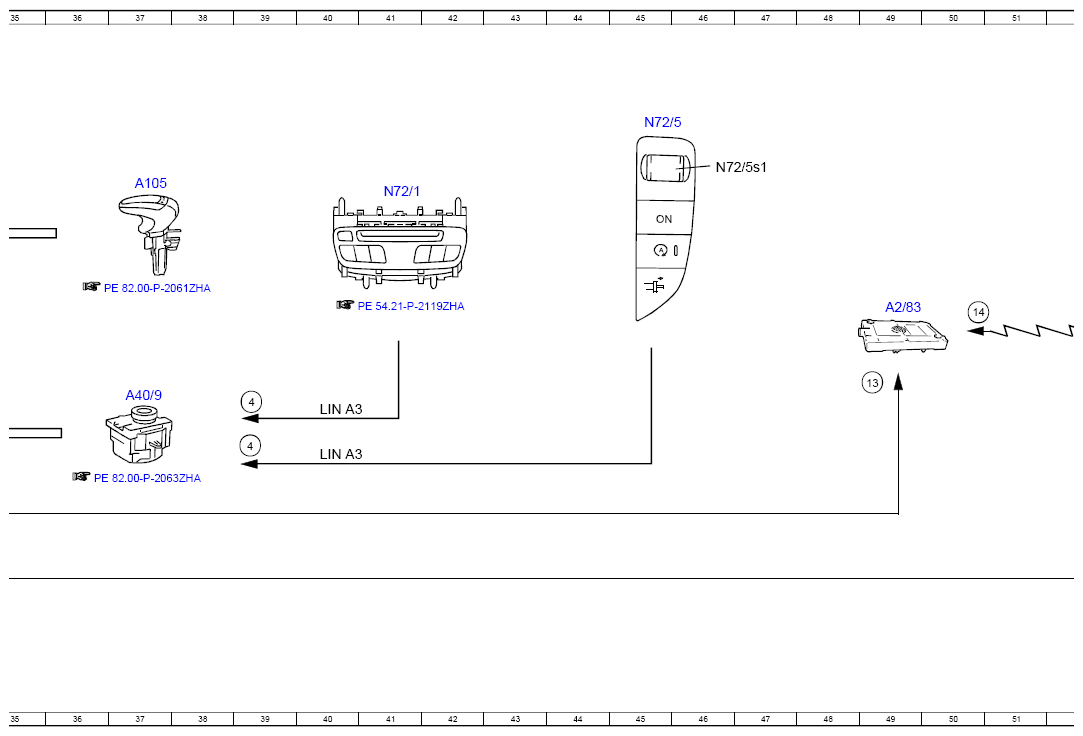

Electrical Function Diagram For Navigation Mode (COMAND), Function - PE82.85-P-2063-97ZGC
Model 463 (except 463.342)
as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | GPS, signal | 24H |
| 10 | FM antenna, signal | 61H |
| 10 | FM antenna, signal | 61K |
| 10 | FM antenna, signal | 29J |
| 11 | DAB band III, signal | 10G |
| 11 | DAB band III, signal | 10J |
| 11 | DAB band III, signal | 24J |
| 12 | Map data, signal | 24K |
| 12 | Map data, signal | 23K |
| 13 | Position data, signal | 58E |
| 13 | Position data, signal | 49F |
| 13 | Position data, signal | 52E |
| 14 | Traffic data, signal | 56E |
| 14 | Traffic data, signal | 29H |
| 14 | Traffic data, signal | 50E |
| 15 | Vehicle Information and Communication System (VICS), signal | 33F |
| 15 | Vehicle Information and Communication System (VICS), signal | 32E |
| 15 | Vehicle Information and Communication System (VICS), signal | 29F |
| 16 | Instrument cluster, actuation | 22C |
| 2 | Wheel speed, signal | 12C |
| 2 | Wheel speed, signal | 24A |
| 3 | Wheel rotation direction, signal | 12C |
| 3 | Wheel rotation direction, signal | 23A |
| 4 | Operation, signal | 29G |
| 4 | Operation, signal | 29C |
| 4 | Operation, signal | 39G |
| 5 | Voice input, signal | 24E |
| 6 | Multifunction steering wheel button group, signal | 12A |
| 6 | Multifunction steering wheel button group, signal | 4C |
| 6 | Multifunction steering wheel button group, signal | 4E |
| 6 | Multifunction steering wheel button group, signal | 23A |
| 7 | Switch-on request, signal | 32C |
| 8 | Audio/COMAND display, actuation | 32B |
| 9 | Sound system amplifier, actuation | 18F |
| A1 | Instrument cluster | 18C |
| A105 | Touchpad | 37C |
| A2/108 | FM 2, DAB 2, TV 2 antenna amplifier | 11J |
| A2/108 | FM 2, DAB 2, TV 2 antenna amplifier | 60K |
| A2/140 | Emergency call system antenna 1 | 61F |
| A2/141 | Emergency call system antenna 2 | 60D |
| A2/169 | Left side window antenna | 9H |
| A2/169 | Left side window antenna | 63J |
| A2/170 | Right rear side window pane antenna | 9J |
| A2/170 | Right rear side window pane antenna | 63K |
| A2/18 | FM/AM amplifier | 12G |
| A2/18 | FM/AM amplifier | 60H |
| A2/23 | Left front GPS antenna | 22H |
| A2/37 | Vehicle Information and Communication System (VICS) control unit | 33E |
| A2/83 | WLAN antenna | 49E |
| A2/94 | Electronic toll collection (ETC) antenna | 34F |
| A26/17 | Head unit | 26F |
| A40/8 | Audio/COMAND display | 33A |
| A40/9 | Audio/COMAND control panel | 37F |
| A50/6 | Dedicated Short-Range Communications control unit | 32F |
| A90/5 | Multimedia connection unit | 21K |
| B25/20 | Driver hands-free system microphone | 22E |
| CAN A | Telematics CAN | 30D |
| CAN A | Telematics CAN | 30C |
| CAN A | Telematics CAN | 30G |
| CAN HMI | User interface CAN | 22B |
| CAN LR | Steering wheel CAN | 4D |
| Code EF6 | Digital radio (DAB) | 8G |
| Code EK1 | HERMES LTE communications module | 53D |
| Code EK1 | HERMES LTE communications module | 59C |
| Code EK1 | HERMES LTE communications module | 59E |
| Code EM2 | HERMES UMTS communications module | 59D |
| Code EM2 | HERMES UMTS communications module | 59F |
| Code EM2 | HERMES UMTS communications module | 53D |
| Code EU8 | Burmester 3D surround sound system | 15E |
| Code Z14 | VICS (Vehicle Information & Communication System) | 31E |
| Flex E | Chassis FlexRay | 9B |
| Flex E | Chassis FlexRay | 9C |
| HSVL | High-speed video link | 23C |
| HSVL | High-speed video link | 30B |
| LIN A3 | LCP LIN | 40G |
| LIN A3 | LCP LIN | 40G |
| MOST | Media Oriented System Transport | 23F |
| N112/9 | HERMES control unit | 54E |
| N135 | Steering wheel electronics | 4E |
| N30/4 | Electronic Stability Program control unit | 7B |
| N40/3 | Sound system amplifier control unit | 16F |
| N72/1 | Upper control panel control unit | 41C |
| N72/5 | Right lower control panel | 45B |
| N72/5s1 | Volume control button | 46C |
| N73 | Electronic ignition switch control unit | 13A |
| N80 | Steering column module control unit | 4A |
| S163/2 | Head unit multifunction steering wheel button group | 5F |
| S163/2s16 | Volume control switch | 5F |
