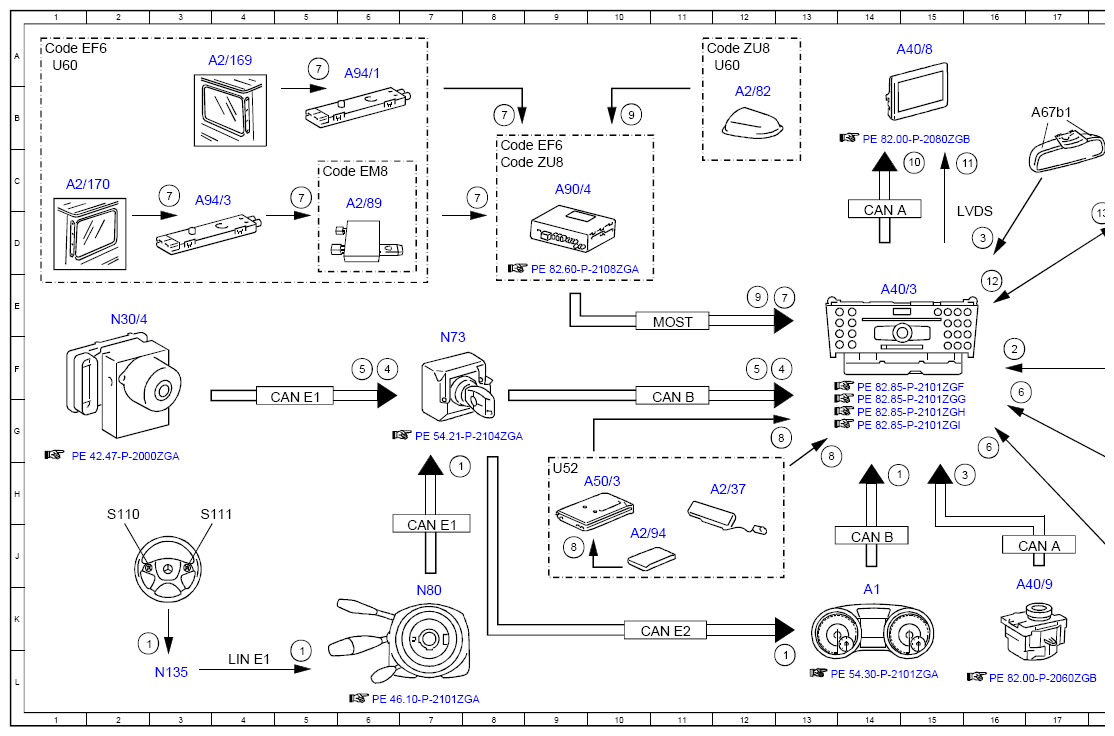

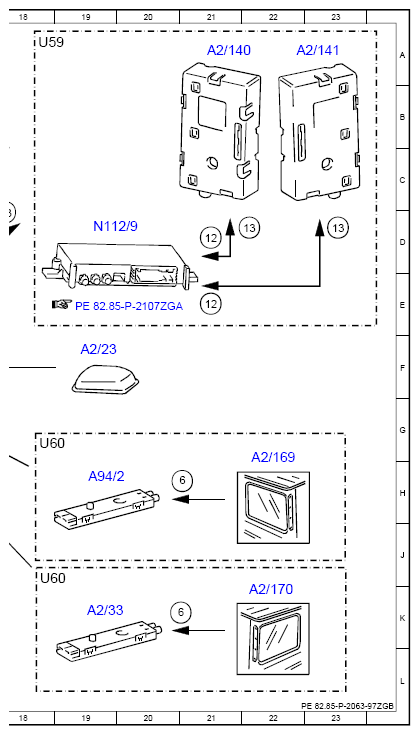

Electrical Function Diagram For Navigation Mode (COMAND), Function - PE82.85-P-2063-97ZGB
Model 463
as of model year 2017 up to model year 2019
with code EU4 (COMAND Online)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multifunction steering wheel button group, signal | 5L |
| 1 | Multifunction steering wheel button group, signal | 13L |
| 1 | Multifunction steering wheel button group, signal | 14H |
| 1 | Multifunction steering wheel button group, signal | 2K |
| 1 | Multifunction steering wheel button group, signal | 7H |
| 10 | Switch-on request, signal | 15C |
| 11 | Low voltage differential signal video signal data transfer, signal | 16C |
| 12 | Traffic data, signal | 16E |
| 12 | Traffic data, signal | 21D |
| 12 | Traffic data, signal | 21E |
| 13 | Position data, signal | 18C |
| 13 | Position data, signal | 21D |
| 13 | Position data, signal | 23D |
| 2 | GPS, signal | 16F |
| 3 | Operation, signal | 16D |
| 3 | Operation, signal | 16H |
| 4 | Wheel speed, signal | 6F |
| 4 | Wheel speed, signal | 13F |
| 5 | Direction of travel, signal | 12F |
| 5 | Direction of travel, signal | 6F |
| 6 | FM antenna, signal | 16G |
| 6 | FM antenna, signal | 16F |
| 6 | FM antenna, signal | 21H |
| 6 | FM antenna, signal | 20K |
| 7 | DAB band III, signal | 3C |
| 7 | DAB band III, signal | 5C |
| 7 | DAB band III, signal | 8C |
| 7 | DAB band III, signal | 5A |
| 7 | DAB band III, signal | 8B |
| 7 | DAB band III, signal | 13E |
| 8 | Vehicle Information and Communication System (VICS), signal | 13G |
| 8 | Vehicle Information and Communication System (VICS), signal | 13G |
| 9 | RTTD (real-time traffic data), signal | 12E |
| 9 | RTTD (real-time traffic data), signal | 10B |
| A1 | Instrument cluster | 14K |
| A2/140 | Emergency call system antenna 1 | 21A |
| A2/141 | Emergency call system antenna 2 | 23A |
| A2/169 | Left side window antenna | 22H |
| A2/169 | Left side window antenna | 4A |
| A2/170 | Right side window antenna | 1C |
| A2/170 | Right side window antenna | 22K |
| A2/23 | Left front GPS antenna | 19F |
| A2/33 | Side window antenna | 19K |
| A2/37 | Vehicle Information and Communication System (VICS) control unit | 11H |
| A2/82 | Satellite digital audio radio (SDAR) antenna | 12B |
| A2/89 | TV antenna splitter | 6C |
| A2/94 | Electronic toll collection (ETC) antenna | 10J |
| A40/3 | COMAND control unit | 14E |
| A40/8 | Audio/COMAND display | 14A |
| A40/9 | Audio/COMAND control panel | 16K |
| A50/3 | Electronic Toll Collection control unit | 9H |
| A67b1 | Hands-free system microphone group | 17B |
| A90/4 | Tuner unit | 9C |
| A94/1 | TV 1 antenna amplifier | 6A |
| A94/2 | TV 2 antenna amplifier | 19H |
| A94/3 | TV 3 and DAB antenna amplifier | 3C |
| CAN A | Telematics CAN | 14D |
| CAN A | Telematics CAN | 17J |
| CAN B | Interior CAN | 14J |
| CAN B | Interior CAN | 11G |
| CAN E1 | Chassis CAN 1 | 7J |
| CAN E1 | Chassis CAN 1 | 5G |
| CAN E2 | Chassis CAN 2 | 11K |
| Code EF6 | Digital radio | 1A |
| Code EF6 | Digital radio | 8C |
| Code EM8 | TV tuner | 5C |
| Code ZU8 | USA version | 11A |
| Code ZU8 | USA version | 8C |
| LIN E1 | Steering LIN | 4L |
| LVDS | Low voltage differential signal | 16D |
| MOST | Media Oriented System Transport | 11E |
| N112/9 | HERMES control unit | 19D |
| N135 | Steering wheel electronics | 3L |
| N30/4 | Electronic Stability Program control unit | 2E |
| N73 | Electronic ignition switch control unit | 7F |
| N80 | Steering column module control unit | 7K |
| S110 | Left multifunction steering wheel button group | 2H |
| S111 | Right multifunction steering wheel button group | 3H |
| U52 | Valid for two-piece radio | 9H |
| U59 | Valid for code EM0 (Live Traffic capability (HERMES)) and subscription for real-time traffic data | 18A |
| U60 | Not valid for code EM0 (Live Traffic capability (HERMES)) and subscription for real-time traffic data | 18J |
| U60 | Not valid for code EM0 (Live Traffic capability (HERMES)) and subscription for real-time traffic data | 18G |
| U60 | Not valid for code EM0 (Live Traffic capability (HERMES)) and subscription for real-time traffic data | 12A |
| U60 | Not valid for code EM0 (Live Traffic capability (HERMES)) and subscription for real-time traffic data | 1A |
