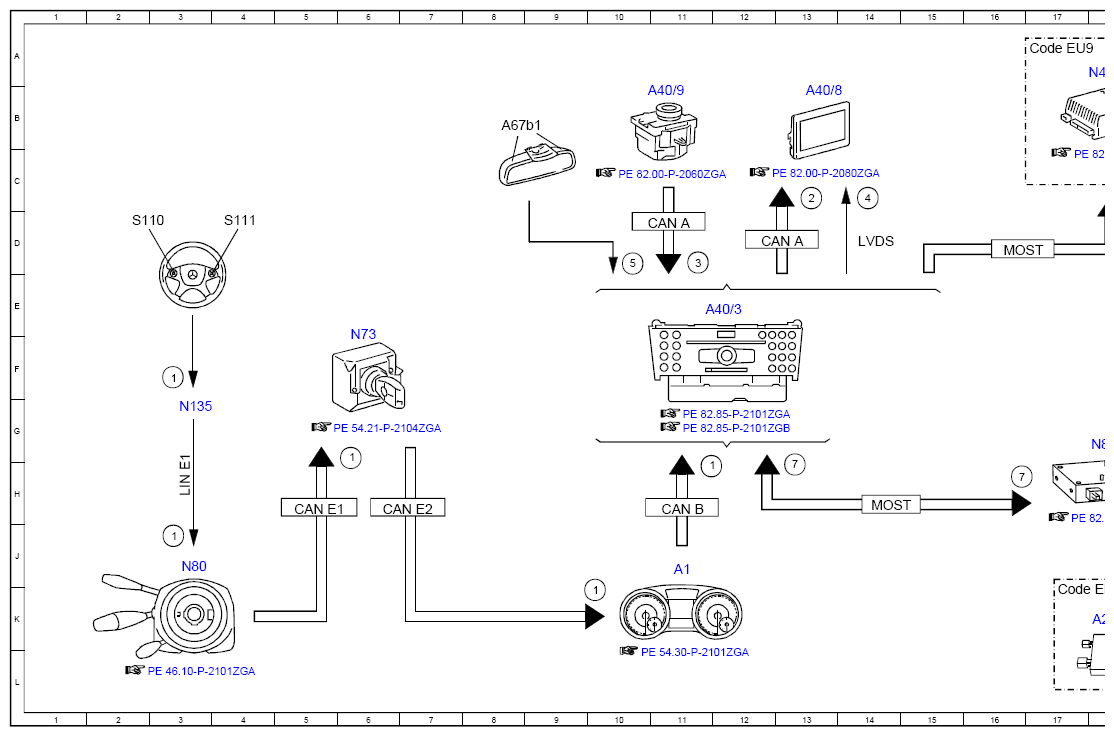

Electrical Function Diagram For Digital Audio Broadcasting, Function - PE82.60-P-2057-97ZGA
Model 463
as of model year 2013 up to model year 2017
with code EF6 (Digital radio (DAB))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multifunction steering wheel button group, signal | 3F |
| 1 | Multifunction steering wheel button group, signal | 10K |
| 1 | Multifunction steering wheel button group, signal | 11H |
| 1 | Multifunction steering wheel button group, signal | 3J |
| 1 | Multifunction steering wheel button group, signal | 6G |
| 2 | Switch-on request, signal | 13C |
| 3 | Audio/COMAND controller, request | 11D |
| 4 | Audio/COMAND display, message | 14C |
| 5 | Voice input, signal | 10D |
| 6 | DAB band III, signal | 18J |
| 6 | DAB band III, signal | 19K |
| 6 | DAB band III, signal | 21K |
| 7 | DAB, communication | 13H |
| 7 | DAB, communication | 16H |
| 8 | Sound system amplifier, actuation | 18C |
| A1 | Instrument cluster | 11J |
| A2/170 | Right side window antenna | 21G |
| A2/89 | TV antenna splitter | 18K |
| A40/3 | COMAND control unit | 11E |
| A40/8 | Audio/COMAND display | 13B |
| A40/9 | Audio/COMAND control panel | 11B |
| A67b1 | Hands-free system microphone | 8B |
| A94/3 | TV 3 and DAB antenna amplifier | 21K |
| CAN A | Telematics CAN | 11D |
| CAN A | Telematics CAN | 12D |
| CAN B | Interior CAN | 11H |
| CAN E1 | Chassis CAN 1 | 5H |
| CAN E2 | Chassis CAN 2 | 6H |
| Code EM8 | TV tuner | 17K |
| Code EU9 | Surround sound system (Harman/Kardon Logic 7) | 17A |
| LIN E1 | Steering LIN | 3H |
| LVDS | Low voltage differential signal | 14D |
| MOST | Media Oriented System Transport | 14H |
| MOST | Media Oriented System Transport | 16D |
| N135 | Steering wheel electronics | 3G |
| N40/3 | Sound system amplifier control unit | 18A |
| N73 | Electronic ignition switch control unit | 6F |
| N80 | Steering column module control unit | 3J |
| N87/3 | Digital Audio Broadcasting control unit | 18G |
| S110 | Left multifunction steering wheel button group | 2D |
| S111 | Right multifunction steering wheel button group | 4D |
