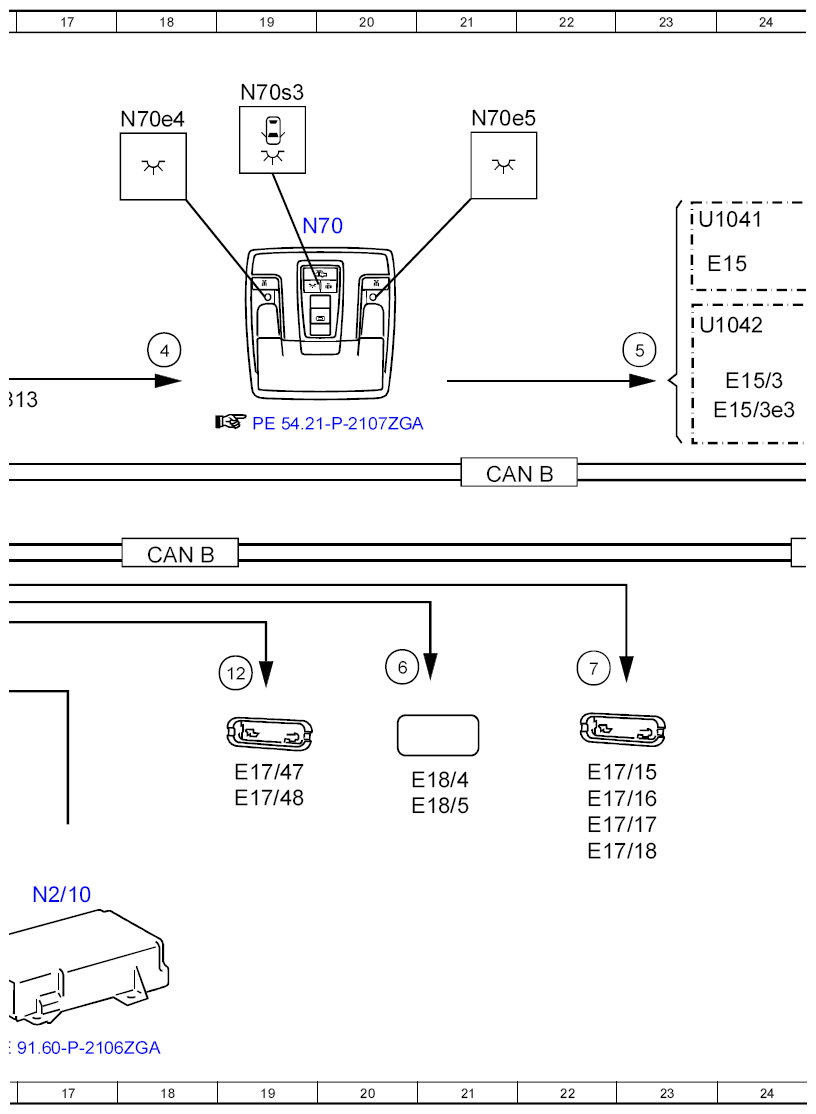

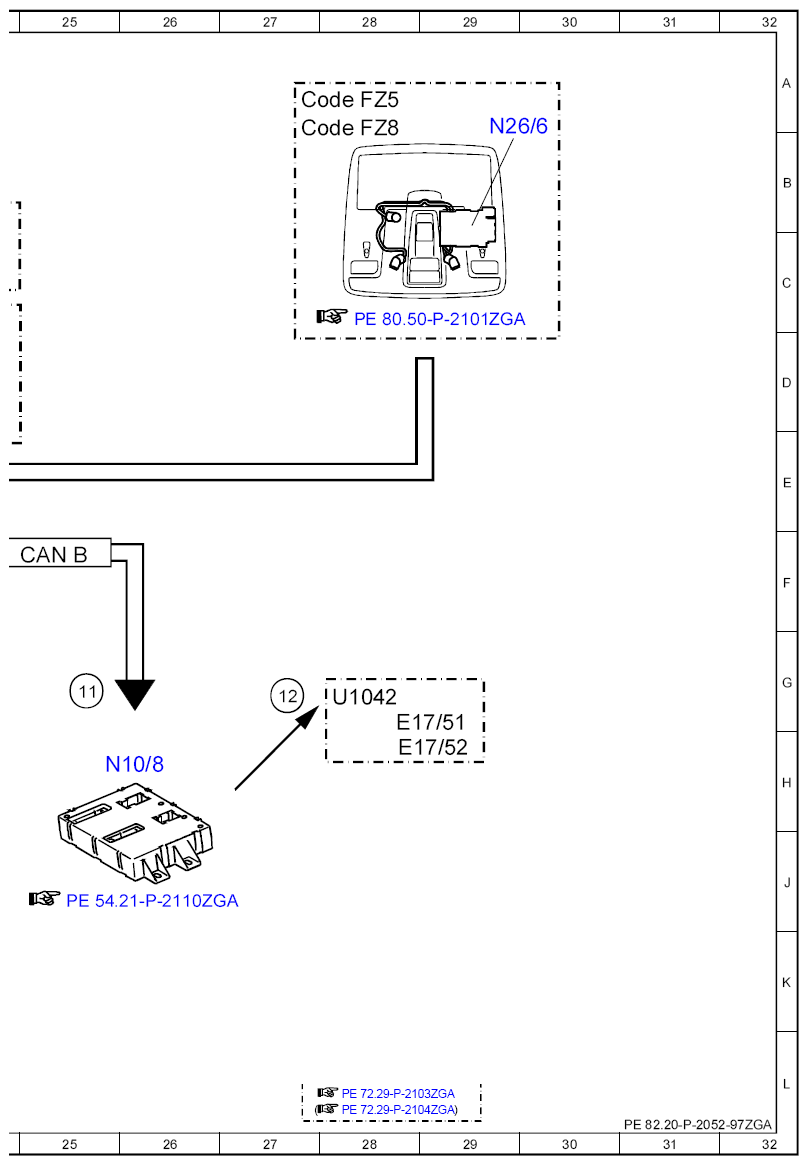

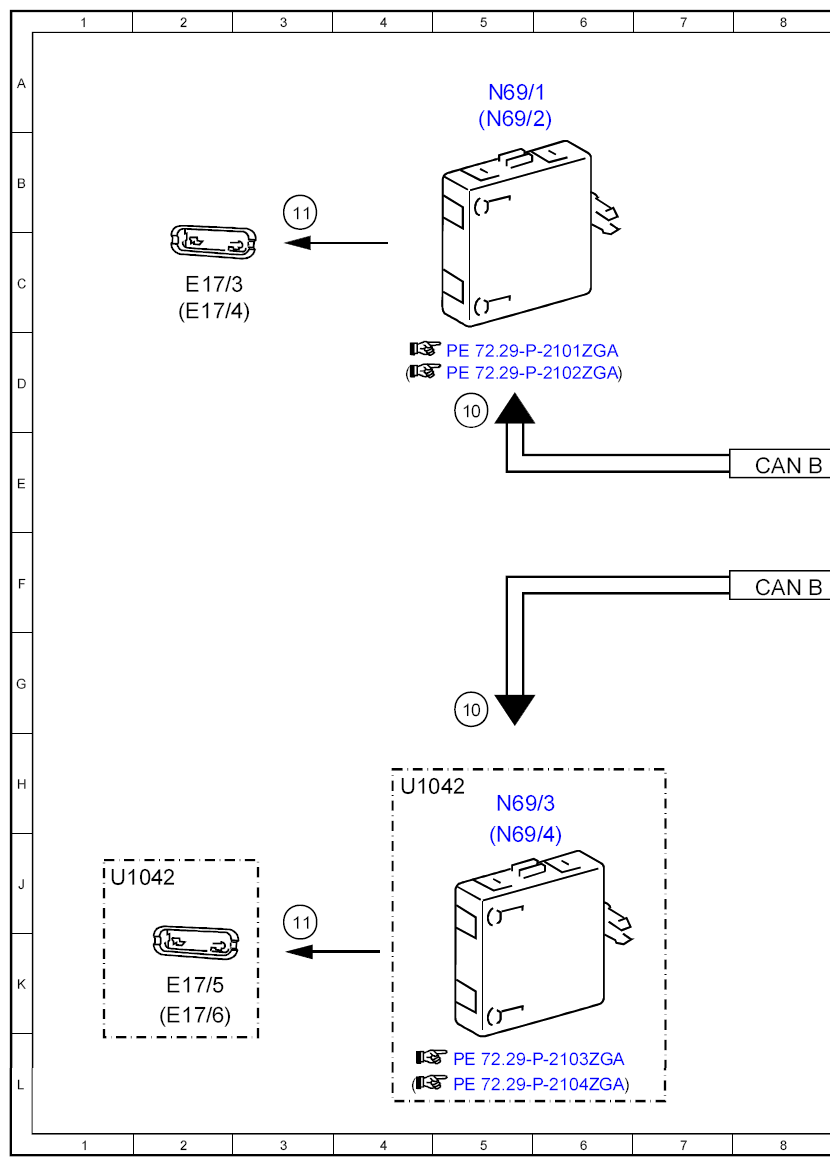

Automatic Interior Lights Control Electrical Function Schematic - PE82.20-P-2052-97ZGA
Model 463 (except 463.342)
as of model year 2013 up to model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Central locking, status | 11G |
| 10 | Exit and warning lamp, request | 5G |
| 10 | Exit and warning lamp, request | 5D |
| 11 | Exit and warning lamp, request | 3B |
| 12 | Illuminated door sill molding actuation | 19G |
| 12 | Illuminated door sill molding actuation | 27G |
| 13 | Vehicle speed, signal | 11C |
| 14 | Rear-end door rotary tumbler switch, status | 14E |
| 15 | Anti-theft alarm system, status | 14E |
| 16 | Crash, signal | 13K |
| 16 | Crash, signal | 11H |
| 16 | Crash, signal | 14G |
| 2 | Circuit 15, status | 11G |
| 3 | Automatic door system switch, status | 14D |
| 4 | Interior lamp, request | 18D |
| 5 | Rear dome lamp, actuation | 23D |
| 6 | Load compartment illumination, actuation | 20G |
| 7 | Footwell lamp, actuation | 22G |
| 8 | Door rotary tumbler switch, status | 9F |
| 8 | Door rotary tumbler switch, status | 9D |
| 9 | OFF delay time, status | 11D |
| A1 | Instrument cluster | 11A |
| CAN B | Interior CAN | 8F |
| CAN B | Interior CAN | 11H |
| CAN B | Interior CAN | 18F |
| CAN B | Interior CAN | 8E |
| CAN B | Interior CAN | 11C |
| CAN B | Interior CAN | 15E |
| CAN B | Interior CAN | 25F |
| CAN B | Interior CAN | 21E |
| CAN E1 | Chassis CAN 1 | 14K |
| Code FZ5 | Anti-theft alarm system (ATA [EDW]) | 27A |
| Code FZ8 | Anti-theft alarm system with interior protection | 27B |
| E15 | Dome lamp | 24C |
| E15/3 | Rear dome lamp | 24D |
| E15/3e3 | Rear interior lamp | 24D |
| E17/15 | Right front footwell lamp | 22H |
| E17/16 | Left front footwell lamp | 22H |
| E17/17 | Right front door sill light strip | 22J |
| E17/18 | Right rear footwell lamp | 22J |
| E17/3 | Left front door entrance/exit lamp | 2C |
| E17/4 | Right front door exit and warning lamp | 2C |
| E17/47 | Left front illuminated door sill molding | 19H |
| E17/48 | Right front illuminated door sill molding | 19H |
| E17/5 | Left rear door exit and warning lamp | 2K |
| E17/51 | Left rear illuminated door sill molding | 28G |
| E17/52 | Right rear illuminated door sill molding | 28H |
| E17/6 | Right rear door entrance/exit lamp | 2K |
| E18/4 | Right luggage compartment lamp | 21H |
| E18/5 | Right load compartment lamp | 21H |
| LIN B13 | Roof LIN | 16D |
| N10 | SAM control unit | 11D |
| N10/8 | Rear control unit | 26H |
| N2/10 | Supplemental restraint system control unit | 17J |
| N26/6 | ATA [EDW]/towing sensor/interior motion sensor control unit | 29B |
| N69/1 | Left front door control unit | 5A |
| N69/2 | Right front door control unit | 5A |
| N69/3 | Rear left door control unit | 5H |
| N69/4 | Right rear door control unit | 5J |
| N70 | Overhead control panel control unit | 19C |
| N70e4 | Left front interior lamp | 18A |
| N70e5 | Right front interior lamp | 21A |
| N70s3 | Interior lamp automatic door system switch | 19A |
| N73 | Electronic ignition switch control unit | 11J |
| U1041 | Valid for model 463.202 | 23B |
| U1042 | Not valid for model 463.202 | 28G |
| U1042 | Not valid for model 463.202 | 1J |
| U1042 | Not valid for model 463.202 | 23D |
| U1042 | Not valid for model 463.202 | 4H |
