Wiring Diagram Of Rear Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2103-97ZHA
Model 463 (except 463.342) as of model year 2019 Control unit N10/8
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 145L |
| CAN B | Interior CAN | 16K |
| CAN B | Interior CAN | 121K |
| Code EZ8 | PARKING ASSIST PARKTRONIC | 45J |
| Code H11 | Heating for rear bench seat | 24J |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 104J |
| Code M177 | V8 spark-ignition engine M177 - AMG | 105J |
| Code M264 | R4 spark-ignition engine M264 | 105J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 106J |
| Code ZU7 | Canada national version | 60A |
| Code ZU7 | Canada national version | 81A |
| Code ZU8 | USA national version | 49J |
| Code ZU8 | USA national version | 60A |
| Code ZU8 | USA national version | 81A |
| E14/1 | Left sun visor mirror lamp | 109L |
| E14/2 | Right sun visor mirror lamp | 109L |
| E17/17 | Left rear footwell lamp | 95L |
| E17/18 | Right rear footwell lamp | 95L |
| E18/4 | Left load compartment lamp | 107L |
| E18/5 | Right load compartment lamp | 96L |
| E19/1 | Left license plate lamp | 47L |
| E19/2 | Right license plate lamp | 47L |
| E21 | Center stop lamp | 18L |

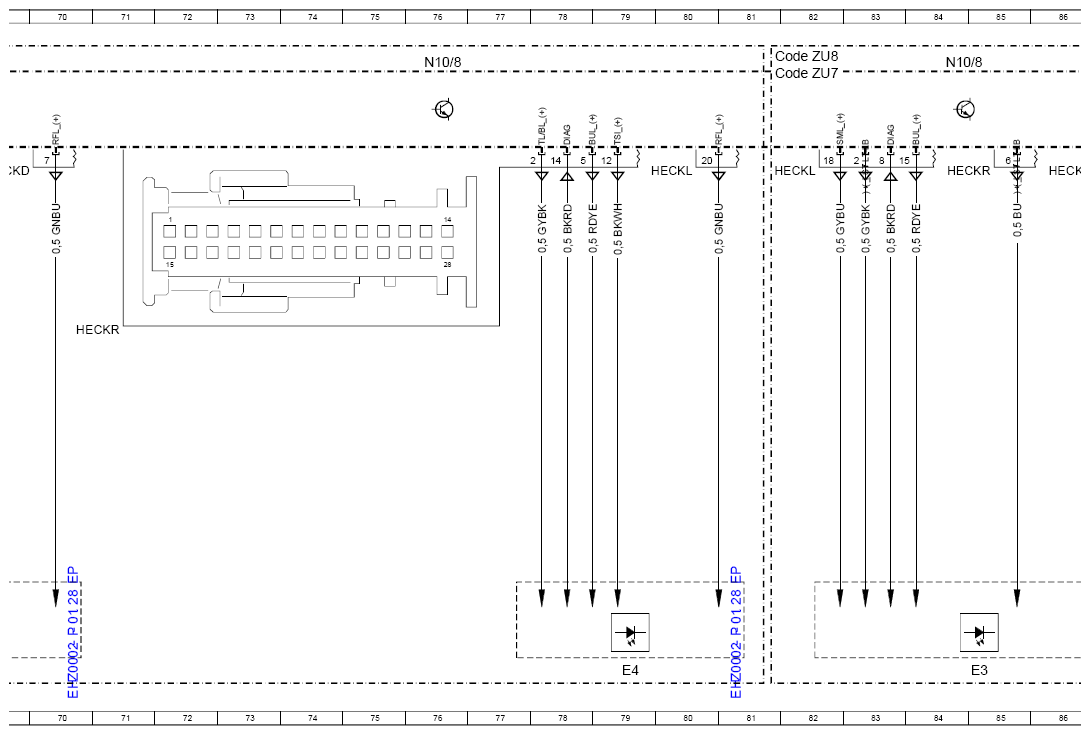

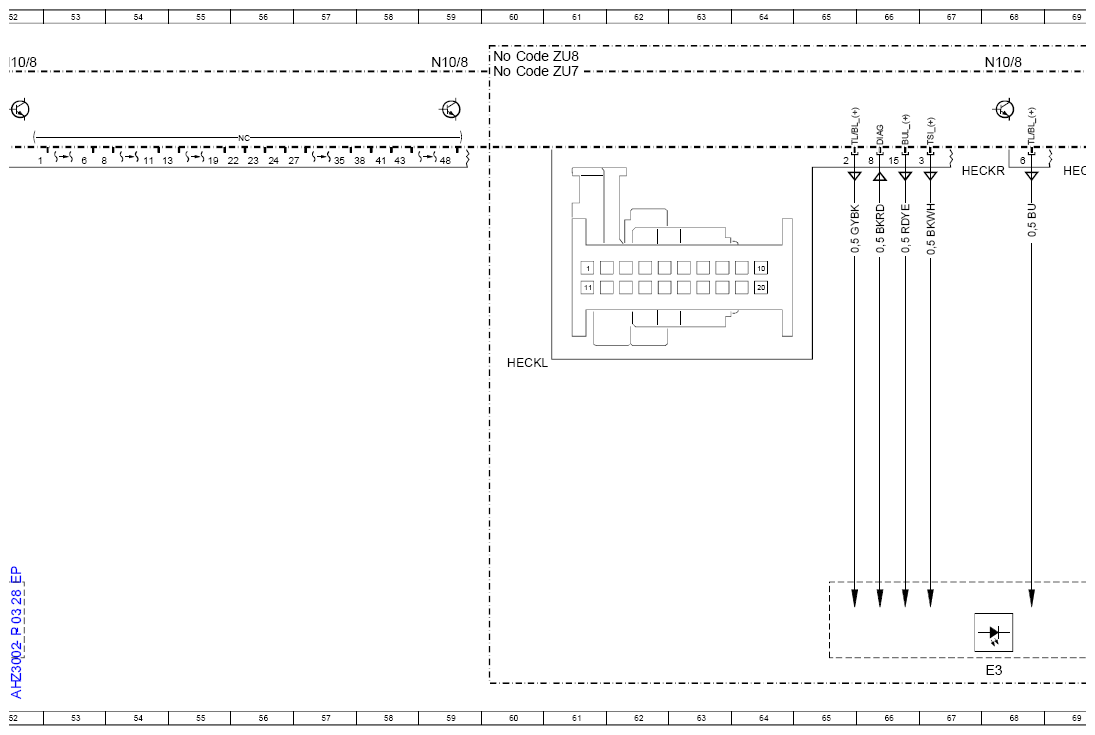

| E3 | Left rear lamp unit | 68L |
| E3 | Left rear lamp unit | 85L |

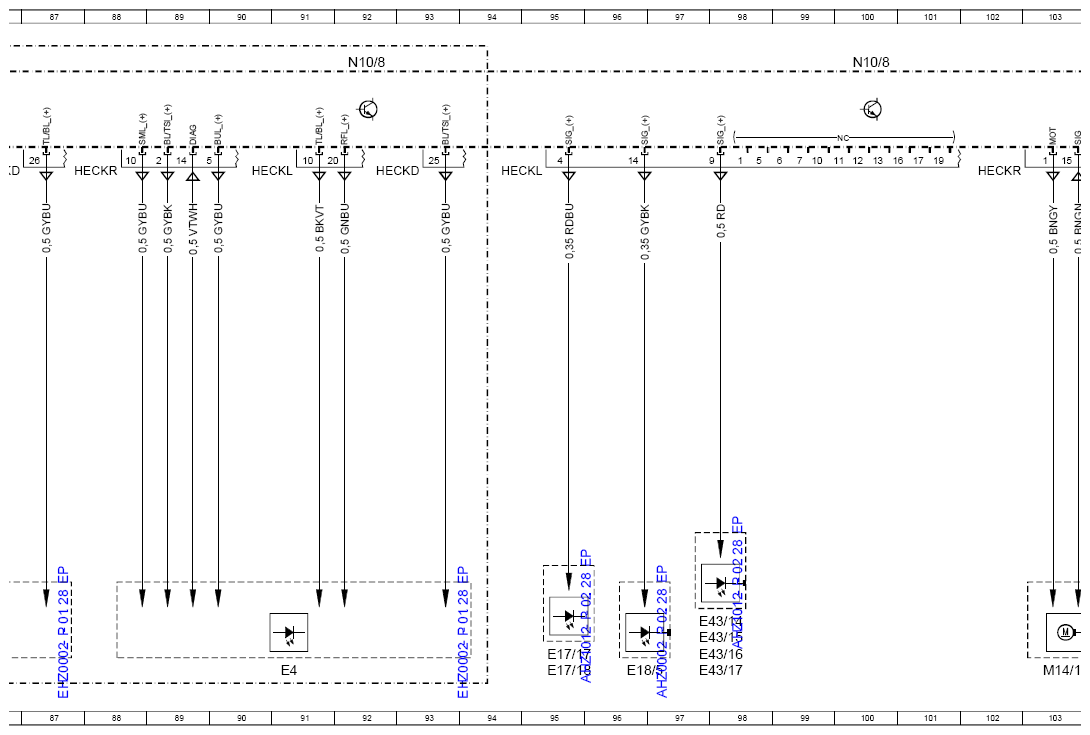

| E4 | Right rear lamp unit | 79L |
| E4 | Right rear lamp unit | 91L |
| E43/14 | Left front center console ambiance illumination | 98K |
| E43/15 | Left rear center console ambiance illumination | 98K |
| E43/16 | Right front center console ambiance illumination | 98L |
| E43/17 | Right rear center console ambiance illumination | 98L |

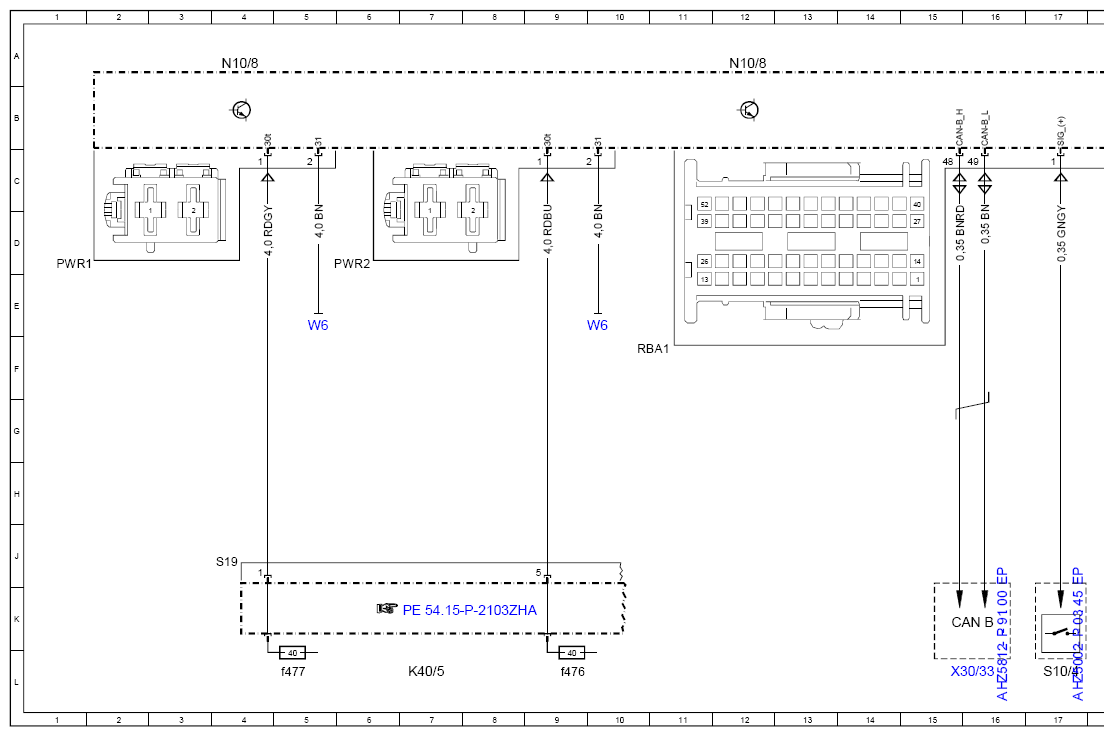

| K40/5 | Rear fuse and relay module | 7L |
| K40/5 | Rear fuse and relay module | 113L |
| K40/5f476 | Fuse 476 | 9L |
| K40/5f477 | Fuse 477 | 5L |
| K40/5kT | Heated rear window relay | 114L |
| K40/5kU | 2nd seat row cup holder and power outlet relay | 112L |
| K40/5kX | 1st seat row/load compartment refrigerator box and power outlets relay | 111L |
| LIN B28 | Heater LIN | 25K |
| M14/10 | Tank cap central locking motor | 103L |

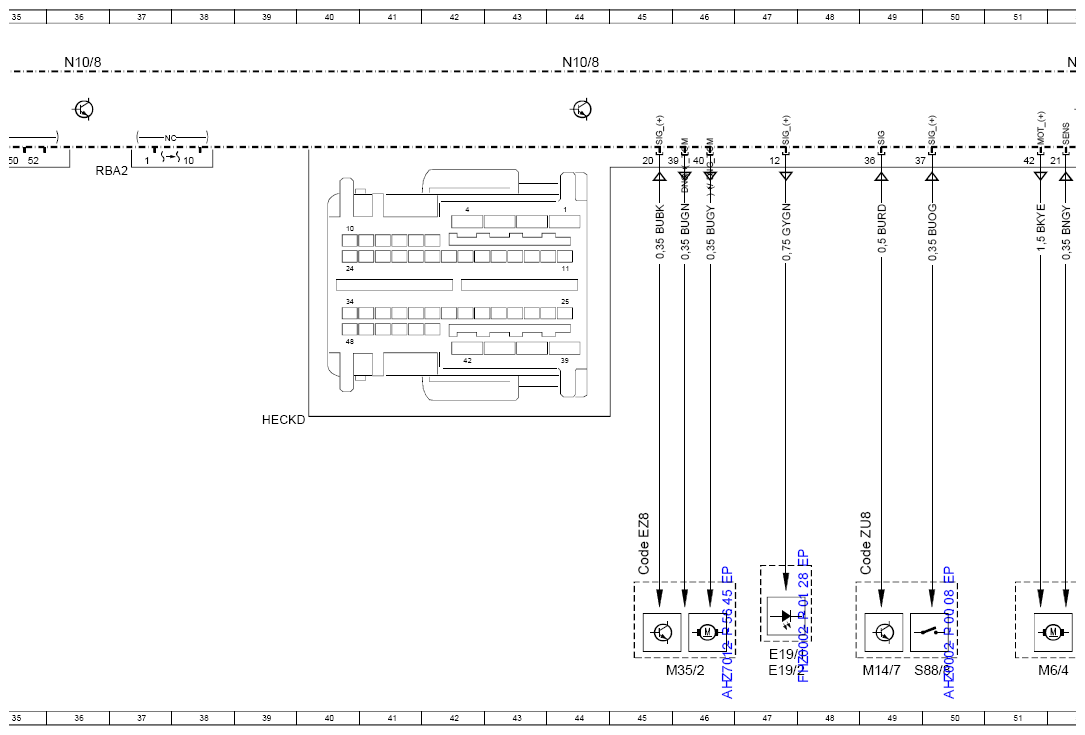

| M14/7 | Rear-end door central locking motor | 49L |
| M35/2 | Rear camera cover motor | 46L |
| M6/4 | Rear-end door wiper motor | 51L |
| N10/6 | Front SAM control unit | 29L |
| N10/8 | Rear SAM control unit | 4A |
| N10/8 | Rear SAM control unit | 12A |
| N10/8 | Rear SAM control unit | 20A |
| N10/8 | Rear SAM control unit | 28A |
| N10/8 | Rear SAM control unit | 36A |
| N10/8 | Rear SAM control unit | 44A |
| N10/8 | Rear SAM control unit | 52A |
| N10/8 | Rear SAM control unit | 59A |
| N10/8 | Rear SAM control unit | 68A |
| N10/8 | Rear SAM control unit | 76A |
| N10/8 | Rear SAM control unit | 84A |
| N10/8 | Rear SAM control unit | 92A |
| N10/8 | Rear SAM control unit | 108A |
| N10/8 | Rear SAM control unit | 100A |
| N10/8 | Rear SAM control unit | 116A |
| N10/8 | Rear SAM control unit | 128A |
| N10/8 | Rear SAM control unit | 139A |

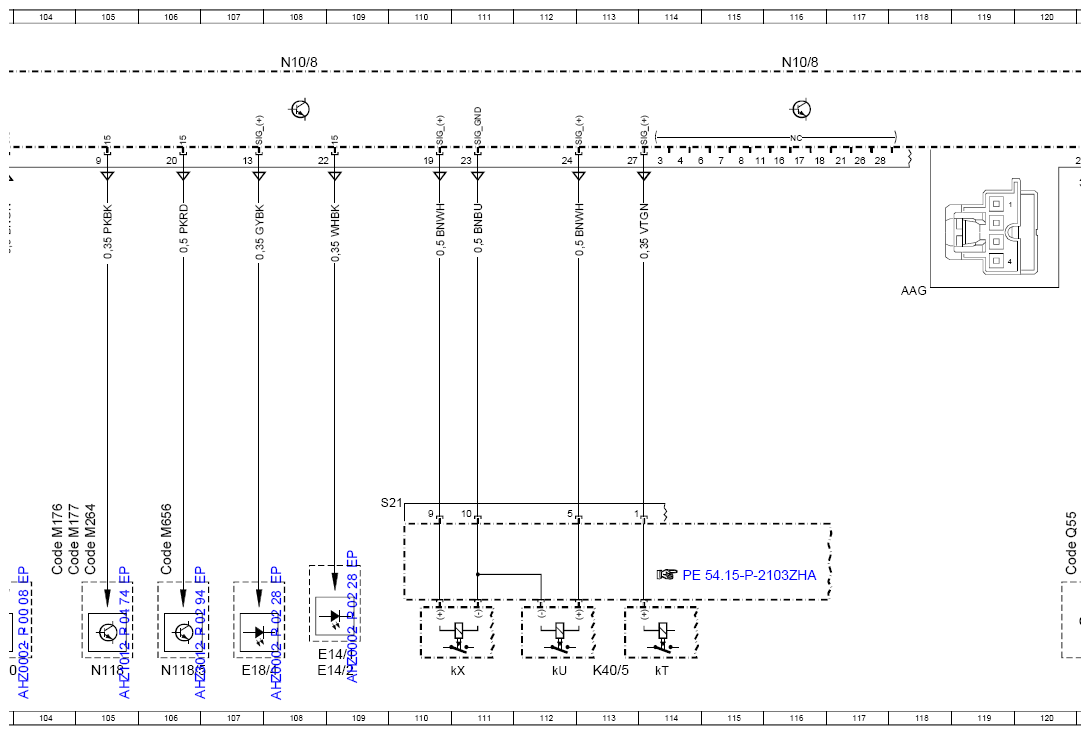

| N118 | Fuel pump control unit | 105L |
| N118/5 | AdBlue® control unit | 106L |

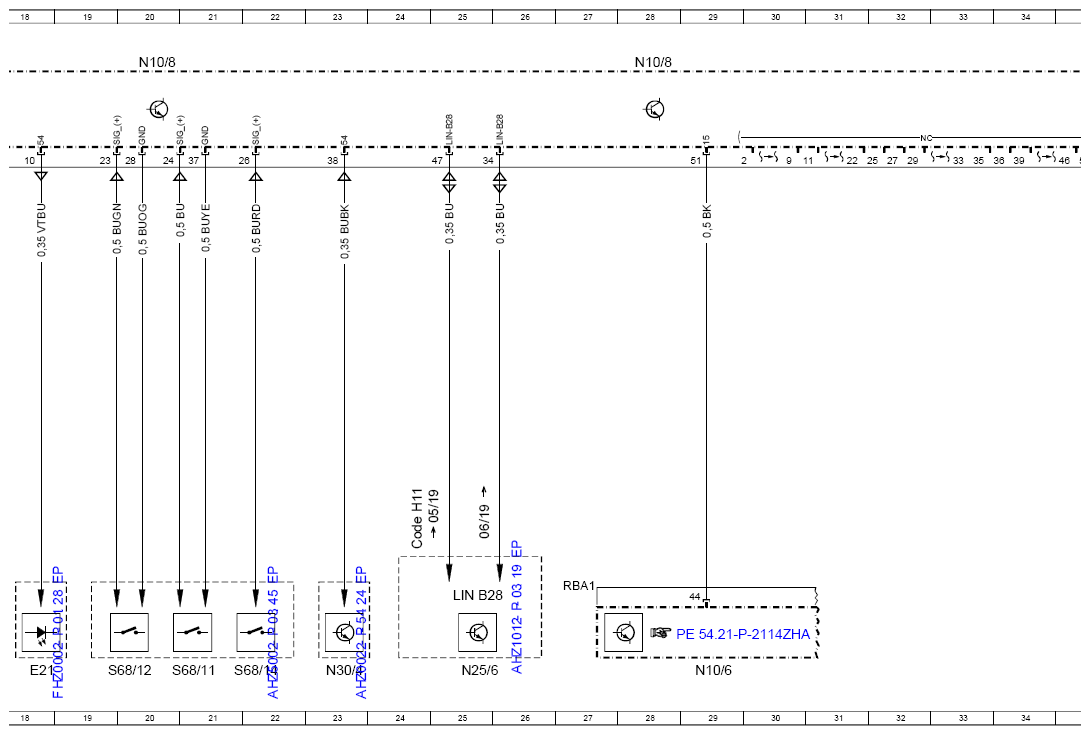

| N25/6 | Rear seat heaters control unit | 25L |

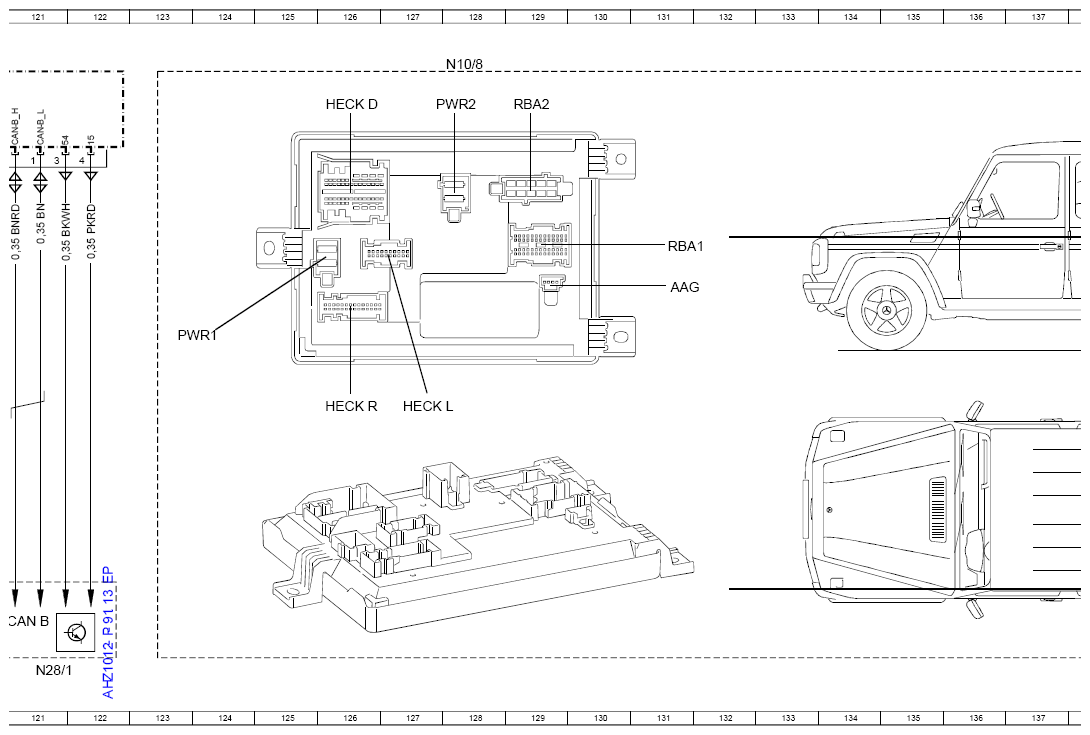

| N28/1 | Trailer recognition control unit | 121L |
| N30/4 | Electronic Stability Program control unit | 23L |
| S10/4 | Right rear brake wear sensor | 17L |
| S68/11 | Left rear seat belt buckle switch | 21L |
| S68/12 | Right rear seat belt buckle switch | 20L |
| S68/14 | Center rear seat belt buckle switch | 22L |
| S88/8 | Rear-end door external operation switch | 50L |
| W6 | Left rear wheel well ground point | 5E |
| W6 | Left rear wheel well ground point | 10E |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 16L |
