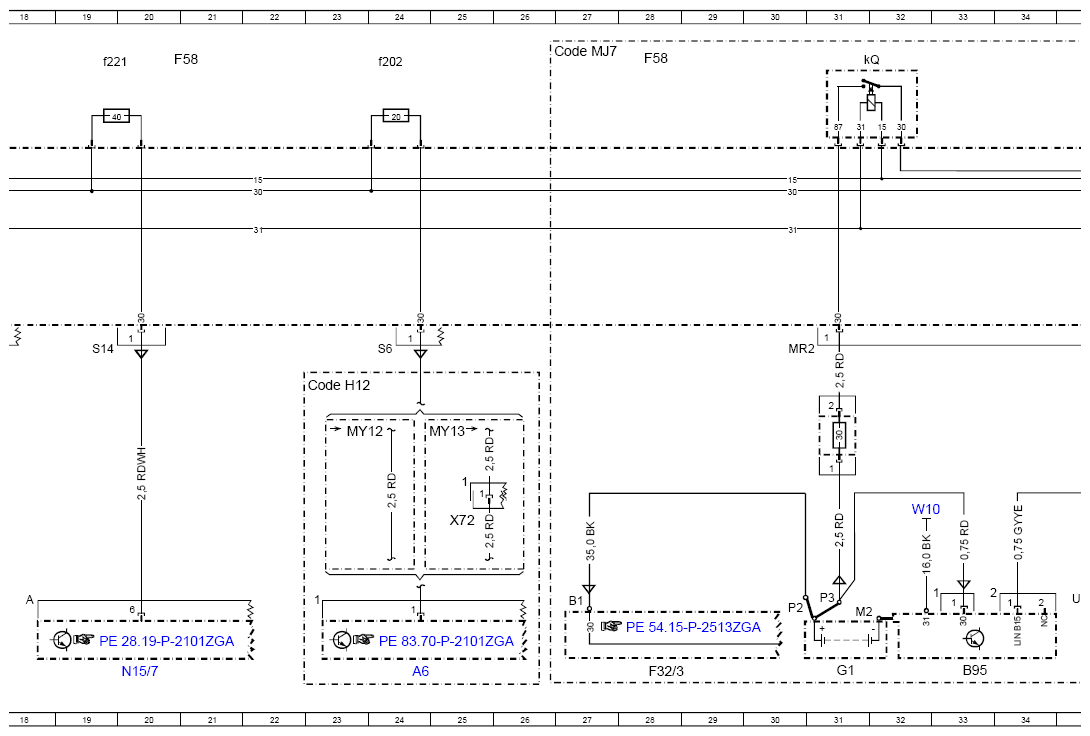

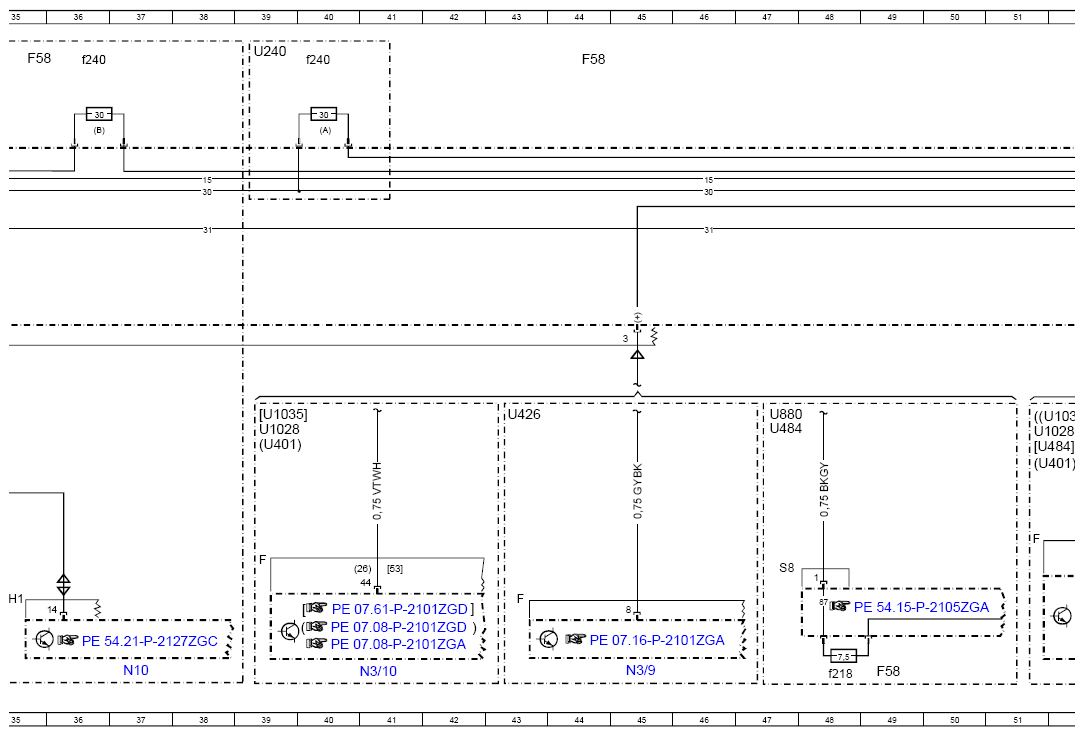

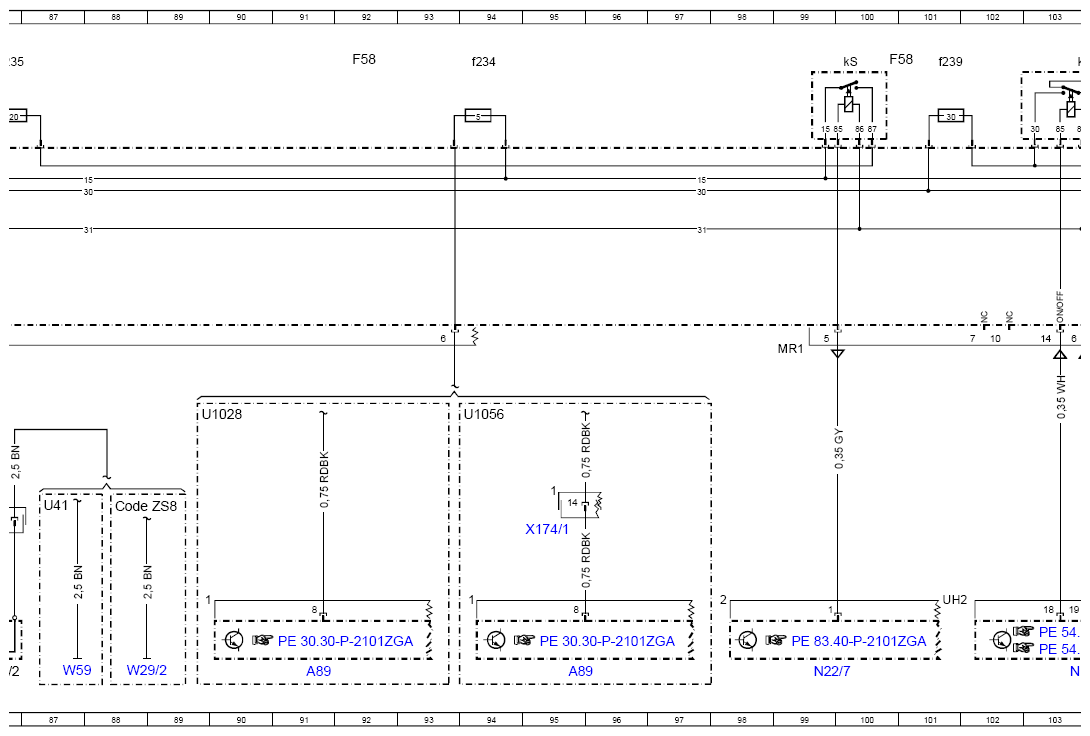

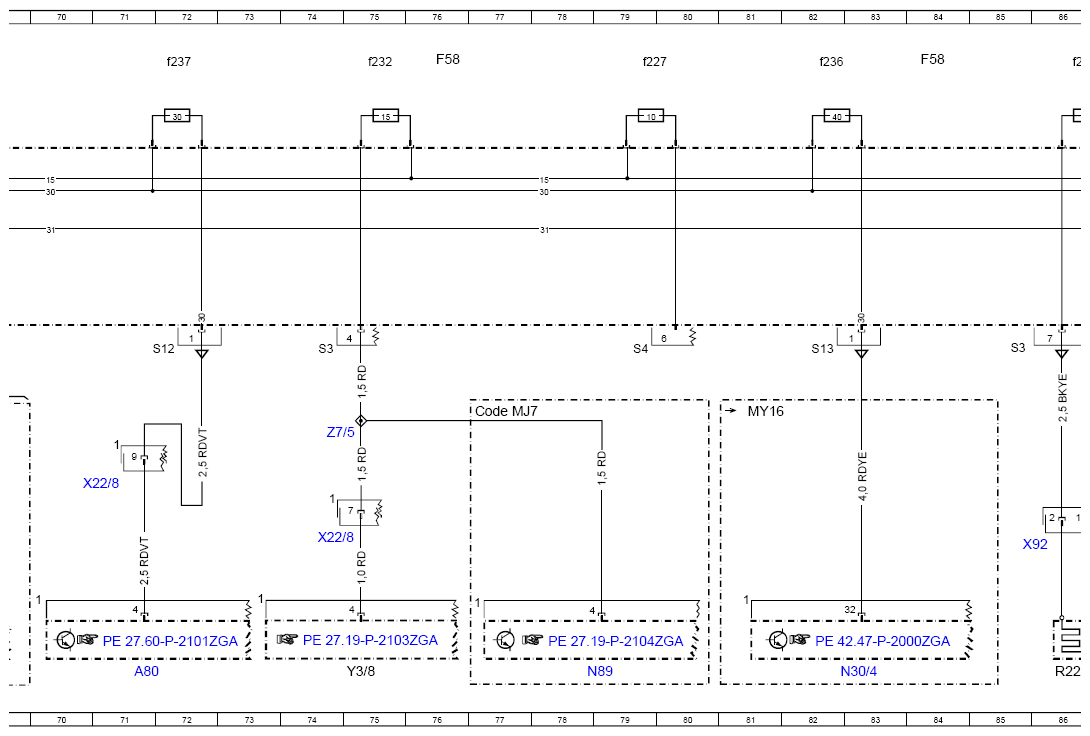

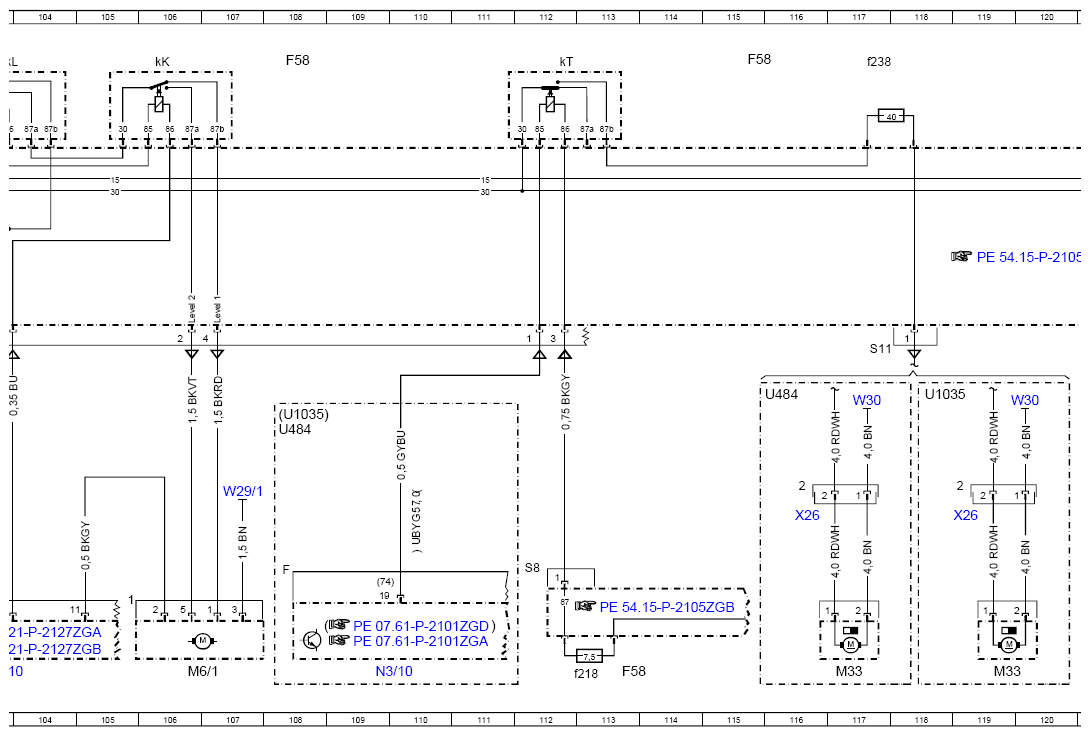

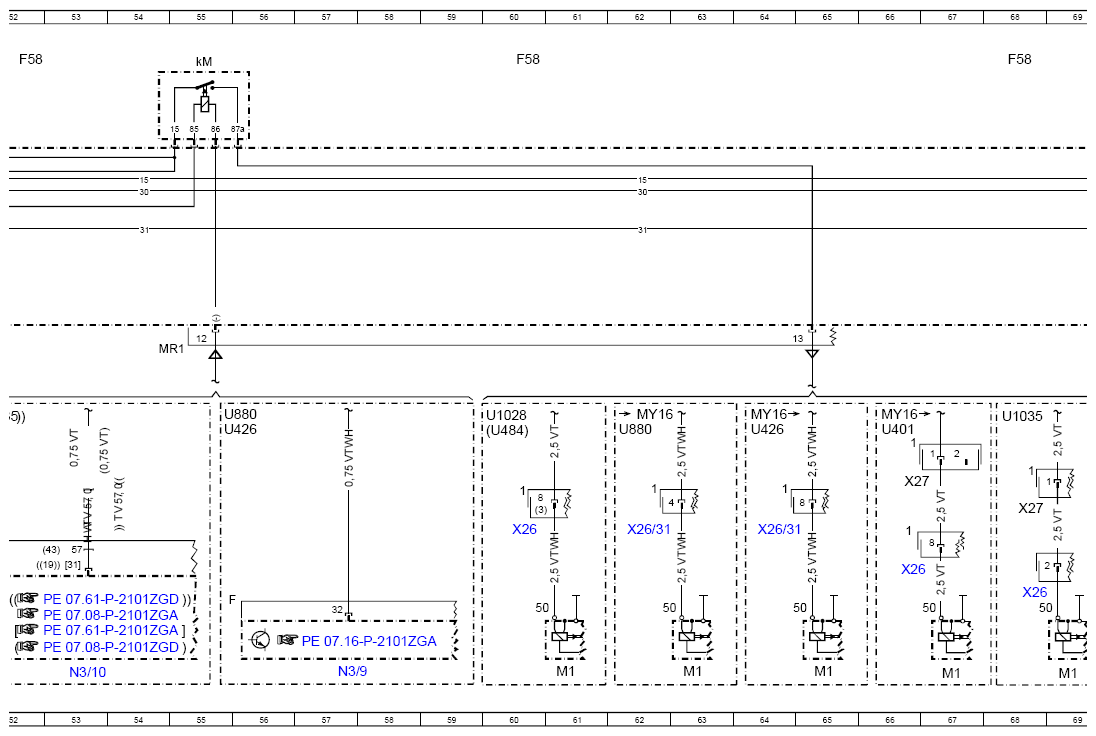

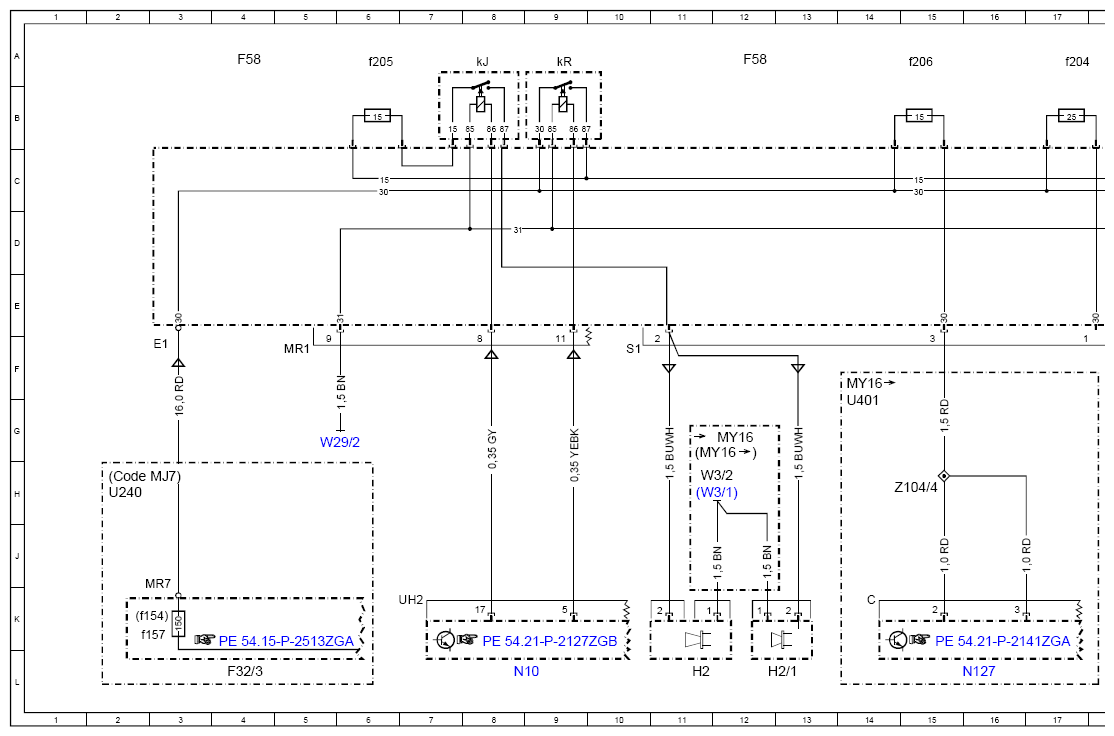

Wiring Diagram For Passenger-Side Fuse And Relay Module - PE54.15-P-2105-97ZGA
Model 463
as of model year 2013 up to model year 2019
/YoM 12 model refinement package up to YoM 18 model refinement package, sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| AO | Color code key | 128L |
| A6 | Stationary heater unit | 24L |
| A80 | Intelligent servo module for DIRECT SELECT | 71L |
| A89 | DISTRONIC electric controller unit | 91L |
| A89 | DISTRONIC electric controller unit | 95L |
| B95 | Battery sensor | 33L |
| Code H12 | Auxiliary heater | 23F |
| Code MJ7 | Stop/start function | 77G |
| Code MJ7 | Stop/start function | 2H |
| Code MJ7 | Stop/start function | 26A |
| Code ZS8 | Protection class VR7/glass area VR9 | 88H |
| F32/3 | Engine compartment prefuse box | 4L |
| F32/3 | Engine compartment prefuse box | 28L |
| F32/3f154 | Fuse 154 | 2K |
| F32/3f157 | Fuse 157 | 2K |
| F58 | Front passenger footwell fuse and relay module | 4A |
| F58 | Front passenger footwell fuse and relay module | 44A |
| F58 | Front passenger footwell fuse and relay module | 68A |
| F58 | Front passenger footwell fuse and relay module | 49L |
| F58 | Front passenger footwell fuse and relay module | 113L |
| F58 | Front passenger footwell fuse and relay module | 76A |
| F58 | Front passenger footwell fuse and relay module | 92A |
| F58 | Front passenger footwell fuse and relay module | 12A |
| F58 | Front passenger footwell fuse and relay module | 21A |
| F58 | Front passenger footwell fuse and relay module | 84A |
| F58 | Front passenger footwell fuse and relay module | 28A |
| F58 | Front passenger footwell fuse and relay module | 35A |
| F58 | Front passenger footwell fuse and relay module | 52A |
| F58 | Front passenger footwell fuse and relay module | 60A |
| F58 | Front passenger footwell fuse and relay module | 115A |
| F58 | Front passenger footwell fuse and relay module | 108A |
| F58 | Front passenger footwell fuse and relay module | 100A |
| F58f202 | Fuse 202 | 24A |
| F58f204 | Fuse 204 | 17A |
| F58f205 | Fuse 205 | 6A |
| F58f206 | Fuse 206 | 15A |
| F58f218 | Fuse 218 | 48L |
| F58f218 | Fuse 218 | 48L |
| F58f221 | Fuse 221 | 19A |
| F58f227 | Fuse 227 | 79A |
| F58f232 | Fuse 232 | 75A |
| F58f234 | Fuse 234 | 94A |
| F58f235 | Fuse 235 | 86A |
| F58f236 | Fuse 236 | 82A |
| F58f237 | Fuse 237 | 72A |
| F58f238 | Fuse 238 | 117A |
| F58f239 | Fuse 239 | 101A |
| F58f240 | Fuse 240 | 40A |
| F58f240 | Fuse 240 | 36A |
| F58kJ | Fanfare horn relay | 8A |
| F58kK | Wiper level 1/2 relay | 106A |
| F58kL | Windshield wiper ON/OFF relay | 103A |
| F58kM | Starter circuit 50 relay | 55A |
| F58kQ | Circuit 15 relay (unlatched) | 31A |
| F58kR | Circuit 15 relay | 9A |
| F58kS | Heated windshield relay | 100A |
| F58kT | Electric air pump relay | 112A |
| G1 | On-board electrical system battery | 31L |
| H2 | Left fanfare horn | 11L |
| H2/1 | Right fanfare horn | 12L |
| M1 | Starter | 63L |
| M1 | Starter | 61L |
| M1 | Starter | 65L |
| M1 | Starter | 67L |
| M1 | Starter | 69L |
| M33 | Secondary air injection pump | 117L |
| M33 | Secondary air injection pump | 119L |
| M6/1 | Wiper motor | 106L |
| N10 | SAM control unit | 8L |
| N10 | SAM control unit | 103L |
| N10 | SAM control unit | 37L |
| N127 | Drivetrain control unit | 16L |
| N15/7 | Transfer case control unit | 20L |
| N22/7 | Climate control and operating unit | 99L |
| N3/10 | ME-SFI [ME] control unit | 109L |
| N3/10 | ME-SFI [ME] control unit | 53L |
| N3/10 | ME-SFI [ME] control unit | 41L |
| N3/9 | CDI control unit | 45L |
| N3/9 | CDI control unit | 57L |
| N30/4 | Electronic Stability Program control unit | 83L |
| N89 | Transmission oil auxiliary pump control unit | 79L |
| R22/2 | Heated windshield | 86L |
| U1028 | Valid for engine 157 | 89G |
| U1028 | Valid for engine 157 | 60G |
| U1028 | Valid for engine 157 | 39G |
| U1028 | Valid for engine 157 | 51G |
| U1035 | Valid for gasoline engine 279 | 108G |
| U1035 | Valid for gasoline engine 279 | 39G |
| U1035 | Valid for gasoline engine 279 | 68G |
| U1035 | Valid for gasoline engine 279 | 118F |
| U1035 | Valid for gasoline engine 279 | 51G |
| U1056 | Not valid for M 157 | 94G |
| U240 | Valid for all except ECO start/stop function | 2H |
| U240 | Valid for all except ECO start/stop function | 39A |
| U401 | Valid for engine 176 | 14G |
| U401 | Valid for engine 176 | 66G |
| U401 | Valid for engine 176 | 39G |
| U401 | Valid for engine 176 | 51H |
| U41 | Not valid for code ZS8 Protection class VR7/glass area VR9 | 87H |
| U426 | Valid with engine 642.887 | 64G |
| U426 | Valid with engine 642.887 | 43G |
| U426 | Valid with engine 642.887 | 55G |
| U484 | Valid for M273 ME | 47G |
| U484 | Valid for M273 ME | 60G |
| U484 | Valid for M273 ME | 115F |
| U484 | Valid for M273 ME | 51G |
| U484 | Valid for M273 ME | 108G |
| U880 | Valid for diesel engine 642 | 62G |
| U880 | Valid for diesel engine 642 | 47G |
| U880 | Valid for diesel engine 642 | 55G |
| W10 | Front right on-board electrical system battery ground point | 32H |
| W29/1 | A-pillar ground connection, left | 107H |
| W29/2 | Right A-pillar ground connection | 5G |
| W29/2 | Right A-pillar ground connection | 88L |
| W3/1 | Ground point (right front wheel well) | 11H |
| W3/2 | Left front wheel arch ground point | 11H |
| W30 | Frame ground point | 117G |
| W30 | Frame ground point | 120G |
| W59 | Windshield frame ground point | 87L |
| X174/1 | Vehicle interior/front bumper electrical connector | 95J |
| X22/8 | Fully integrated transmission controller unit electrical connector | 71H |
| X22/8 | Fully integrated transmission controller unit electrical connector | 74J |
| X26 | Interior and engine wiring harness electrical connector | 60J |
| X26 | Interior and engine wiring harness electrical connector | 116H |
| X26 | Interior and engine wiring harness electrical connector | 66J |
| X26 | Interior and engine wiring harness electrical connector | 68K |
| X26 | Interior and engine wiring harness electrical connector | 119H |
| X26/31 | Engine/engine compartment electrical connector | 62J |
| X26/31 | Engine/engine compartment electrical connector | 64J |
| X27 | Starter electrical connector | 66H |
| X27 | Starter electrical connector | 68H |
| X72 | Stationary heater intermediate electrical connector | 25J |
| X92 | Windshield heater electrical connector | 86J |
| Y3/8 | Fully integrated transmission control unit | 75L |
| Z104/4 | Circuit 30 12V connector sleeve | 15H |
| Z7/5 | Circuit 87 connector sleeve | 74G |
