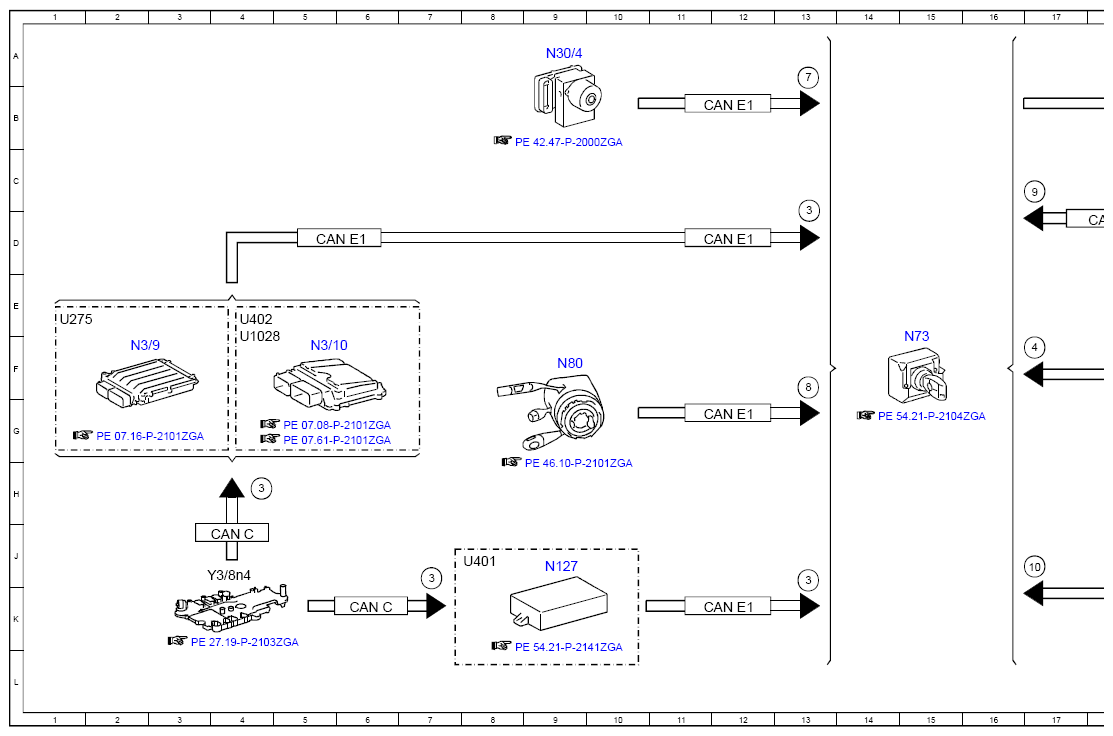

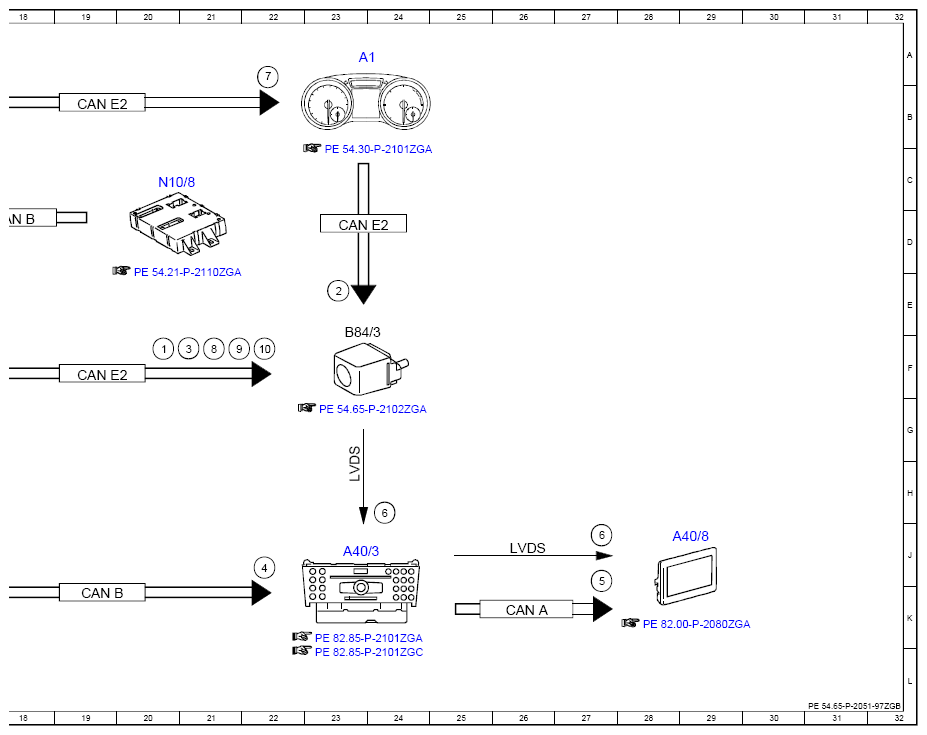

Electrical Function Schematic, Backup Camera - PE54.65-P-2051-97ZGB
Model 463 (except 463.342) as of model year 2017 up to model year 2019 with code FR8 (Rear view camera)
Model 463.342 as of model year 2017 with code FR8 (Rear view camera)
| Code: | Designation: | Position: |
| 1 | Circuit 15, status | 20F |
| 10 | Backup camera function, status | 17K |
| 10 | Backup camera function, status | 22F |
| 2 | Vehicle speed, signal | 23E |
| 3 | Gear range, status | 4H |
| 3 | Gear range, status | 7K |
| 3 | Gear range, status | 13K |
| 3 | Gear range, status | 13C |
| 3 | Gear range, status | 21F |
| 4 | COMAND activation, request | 17F |
| 4 | COMAND activation, request | 22K |
| 5 | Audio/COMAND display, actuation | 27K |
| 6 | Low voltage differential signal video signal data transfer, signal | 24H |
| 6 | Low voltage differential signal video signal data transfer, signal | 27J |
| 7 | Wheel speed, signal | 13A |
| 7 | Wheel speed, signal | 22A |
| 8 | Front wheel angle, signal | 13F |
| 8 | Front wheel angle, signal | 21F |
| 9 | Rear-end door rotary tumbler switch, status | 17C |
| 9 | Rear-end door rotary tumbler switch, status | 22F |
| A1 | Instrument cluster | 23A |
| A40/3 | COMAND control unit | 23J |
| A40/8 | Audio/COMAND display | 29J |
| B84/3 | Backup camera | 23F |
| CAN A | Telematics CAN | 26K |
| CAN B | Interior CAN | 19K |
| CAN B | Interior CAN | 18D |
| CAN C | Drive train CAN | 4J |
| CAN C | Drive train CAN | 6K |
| CAN E1 | Chassis CAN 1 | 12K |
| CAN E1 | Chassis CAN 1 | 5D |
| CAN E1 | Chassis CAN 1 | 12G |
| CAN E1 | Chassis CAN 1 | 12D |
| CAN E1 | Chassis CAN 1 | 12B |
| CAN E2 | Chassis CAN 2 | 19F |
| CAN E2 | Chassis CAN 2 | 19B |
| CAN E2 | Chassis CAN 2 | 23D |
| LVDS | Low voltage differential signal | 23H |
| LVDS | Low voltage differential signal | 26J |
| N10/8 | Rear control unit | 20C |
| N127 | Drivetrain control unit | 9J |
| N3/10 | ME-SFI [ME] control unit | 5F |
| N3/9 | CDI control unit | 2F |
| N30/4 | Electronic Stability Program control unit | 9A |
| N73 | Electronic ignition switch control unit | 15F |
| N80 | Steering column module control unit | 9F |
| U1028 | Valid for engine 157 | 4F |
| 11275 | Valid for engine 642.8 | 1E |
| 11401 | Valid for engine 176 | 8J |
| 11402 | Valid for engine 273 | 4E |
| Y3/8n4 | Fully integrated transmission control unit | 4J |
