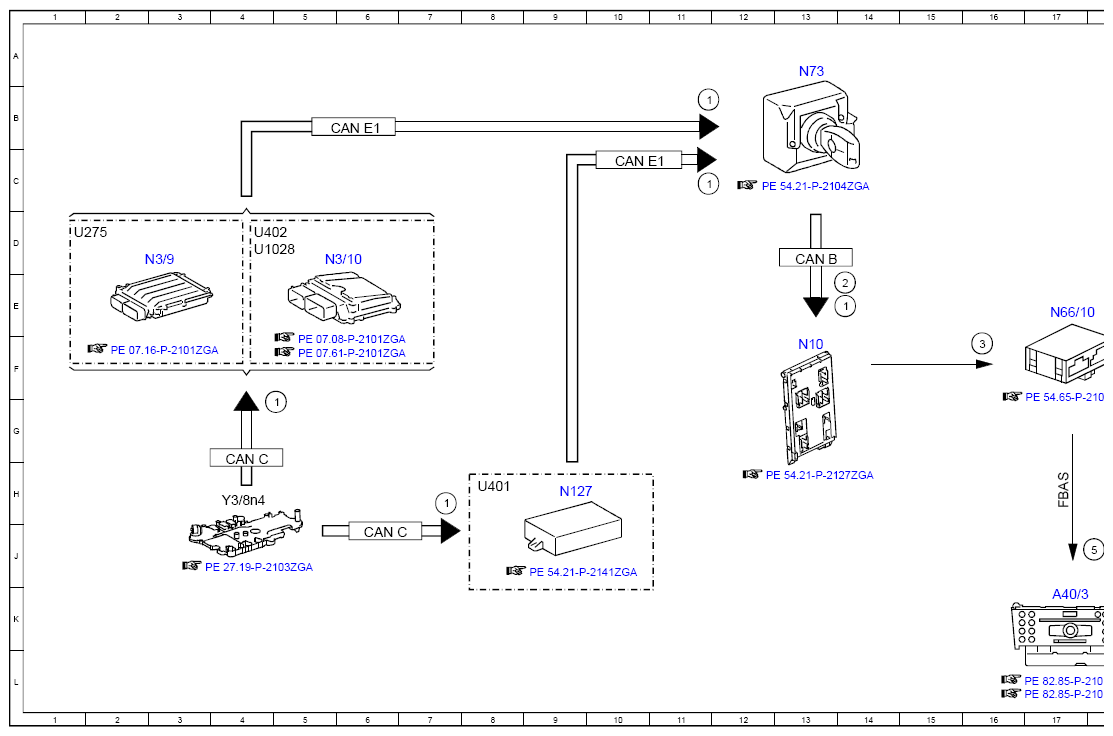

Electrical Function Schematic, Backup Camera - PE54.65-P-2051-97ZGA
Model 463 as of model year 2013 up to model year 2017 with code FR8 (Rear view camera)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Gear range, status | 5G |
| 1 | Gear range, status | 14E |
| 1 | Gear range, status | 11B |
| 1 | Gear range, status | 11C |
| 1 | Gear range, status | 7H |
| 2 | Circuit 15, status | 14E |
| 3 | Backup camera power supply module, actuation | 16F |
| 4 | Backup camera, actuation | 20E |
| 5 | Backup camera, signal | 18J |
| 5 | Backup camera, signal | 19F |
| 6 | Audio/COMAND display, actuation | 21K |
| 7 | Low voltage differential signal video signal data transfer, signal | 21J |
| A40/3 | COMAND operating, display and control unit | 17K |
| A40/8 | Audio/COMAND display | 22K |
| B84/3 | Backup camera | 21E |
| CAN A | Telematics CAN | 20L |
| CAN B | Interior CAN | 13D |
| CAN C | Drive train CAN | 4H |
| CAN C | Drive train CAN | 6J |
| CAN E1 | Chassis CAN 1 | 6B |
| CAN E1 | Chassis CAN 1 | 10C |
| FBAS | Composite Video Baseband Signal | 20F |
| FBAS | Composite Video Baseband Signal | 17H |
| LVDS | Low voltage differential signal | 20K |
| N10 | SAM control unit | 13F |
| N127 | Drivetrain control unit | 9H |
| N3/10 | ME-SFI [ME] control unit | 5D |
| N3/9 | CDI control unit | 3D |
| N66/10 | Backup camera voltage supply module | 17E |
| N73 | EIS [EZS] control unit | 13A |
| U1028 | Valid for engine 157 | 4D |
| U275 | Valid for engine 642.8 | 1D |
| 11401 | Valid for engine 176 | 8H |
| 11402 | Valid for engine 273 | 4D |
| Y3/8n4 | Fully integrated transmission control (VGS) control unit | 4H |
