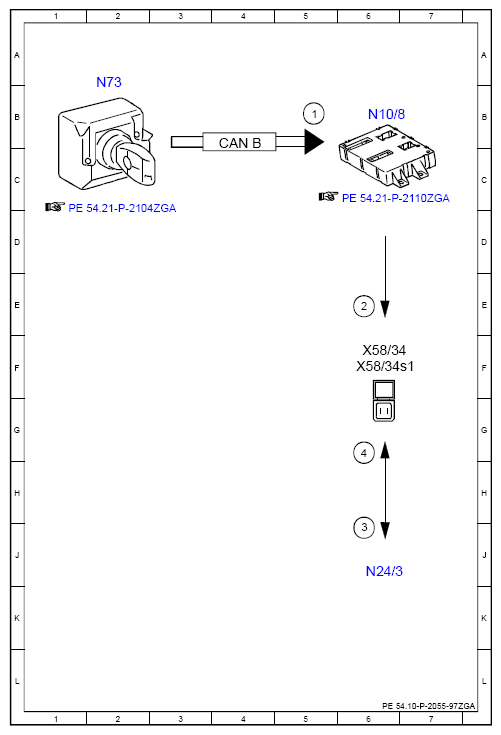

Electrical Function Schematic For DC/AC Converter - PE54.10-P-2055-97ZGA
Model 463 (except 463.342)
as of model year 2013 up to model year 2019
with code E47 (Socket, 115 V)
Model 463.342
with code E47 (Socket, 115 V)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15R, status | 5B |
| 2 | Power supply, status ON | 6E |
| 3 | DC/AC converter control unit, actuation | 6J |
| 4 | 115 V socket, actuation | 6G |
| CAN B | Interior CAN | 4C |
| N10/8 | Rear control unit | 6B |
| N24/3 | DC/AC converter control unit | 6J |
| N73 | EIS [EZS] control unit | 2B |
| X58/34 | 115 V socket | 6F |
| X58/34s1 | Socket microswitch | 6F |
