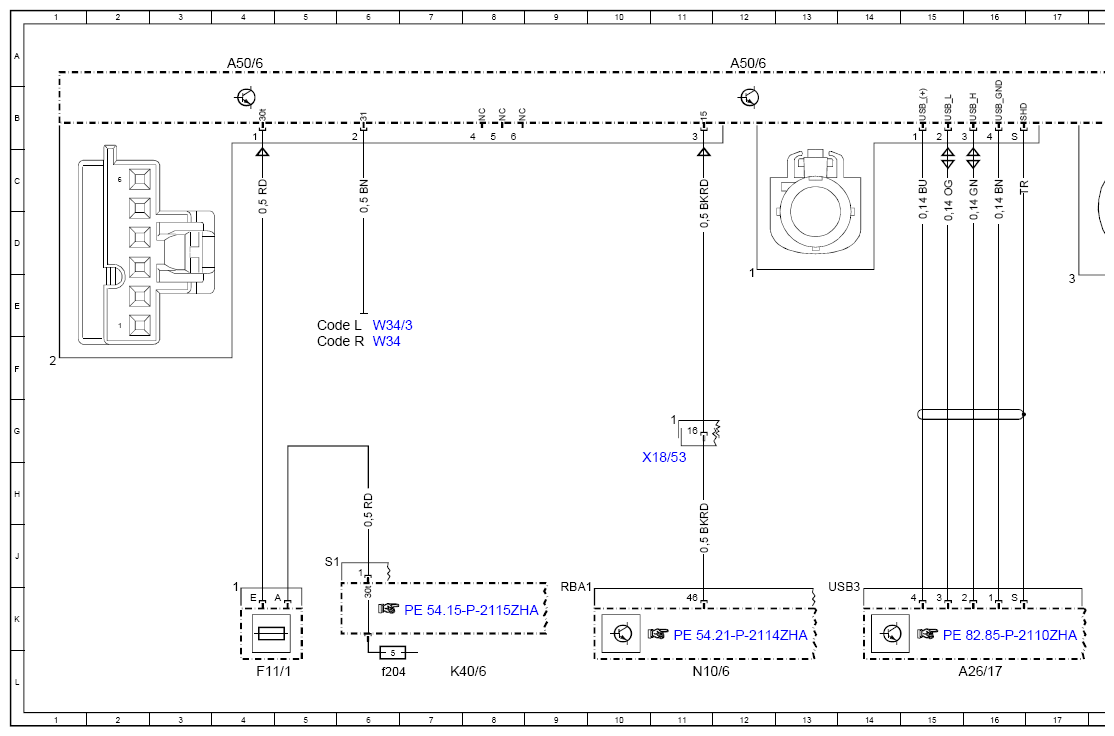

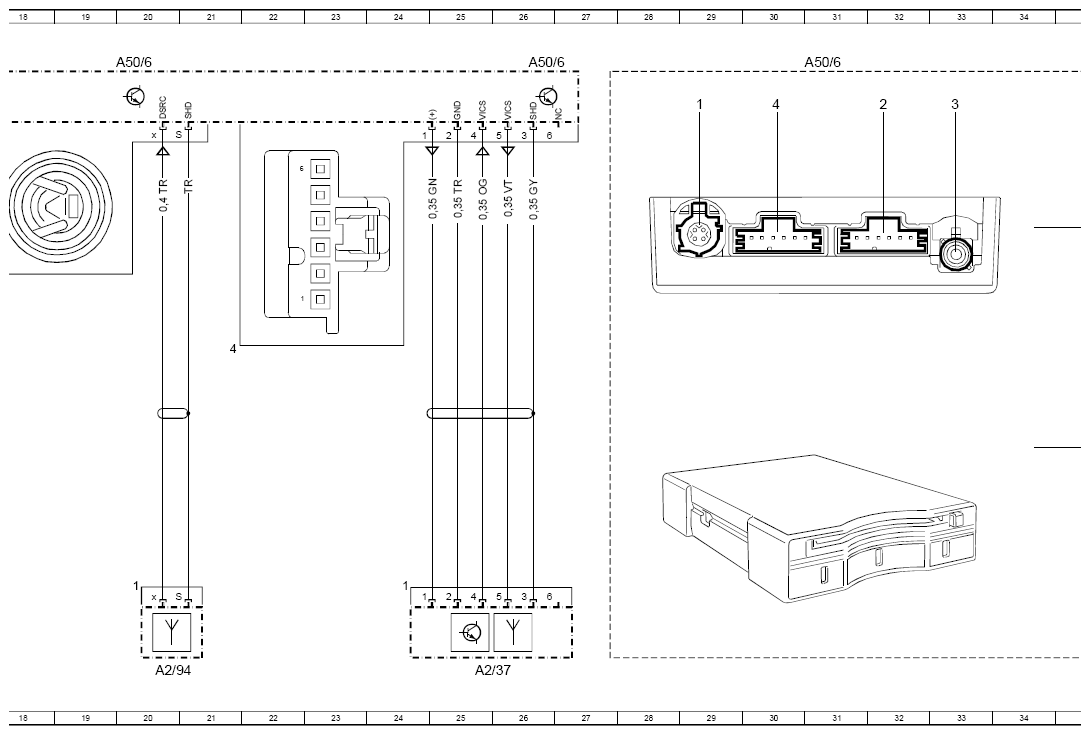

Wiring Diagram For Dedicated Short-Range Communications Control Unit - PE82.88-P-2101-97ZHA
Model 463 (except 463.342)
as of model year 2019
with code ZJ1 (Local version for Japan)
Control unit A50/6
| Code: | Designation: | Position: |
|---|---|---|

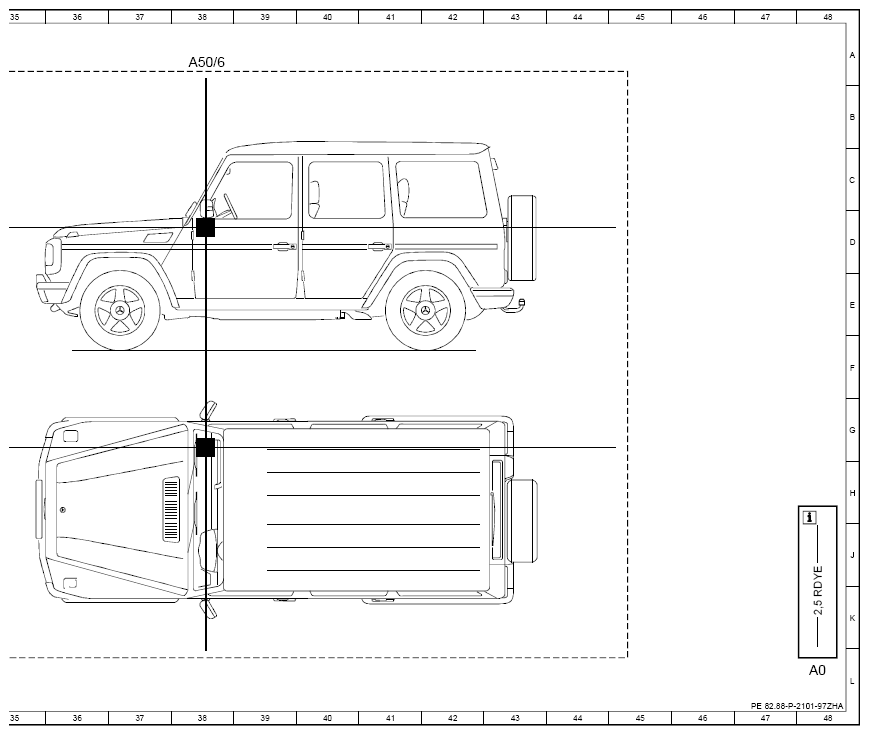

| A0 | Use of wiring diagrams | 48L |
| A2/37 | Vehicle Information and Communication System (VICS) control unit | 25L |
| A2/94 | DSRC antenna | 20L |
| A26/17 | Head unit | 16L |
| A50/6 | Dedicated Short-Range Communications control unit | 4A |
| A50/6 | Dedicated Short-Range Communications control unit | 12A |
| A50/6 | Dedicated Short-Range Communications control unit | 20A |
| A50/6 | Dedicated Short-Range Communications control unit | 26A |
| A50/6 | Dedicated Short-Range Communications control unit | 31A |
| A50/6 | Dedicated Short-Range Communications control unit | 38A |
| Code L | LEFT-HAND DRIVE | 5E |
| Code R | RIGHT-HAND DRIVE | 5F |
| F11/1 | Cockpit fuse block | 4L |
| K40/6 | Left fuse and relay module | 7L |
| K40/6f204 | Fuse 204 | 6L |
| N10/6 | Front SAM control unit | 11L |
| W34 | Left footwell ground point | 6F |
| W34/3 | Right footwell ground point | 6E |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 11H |
