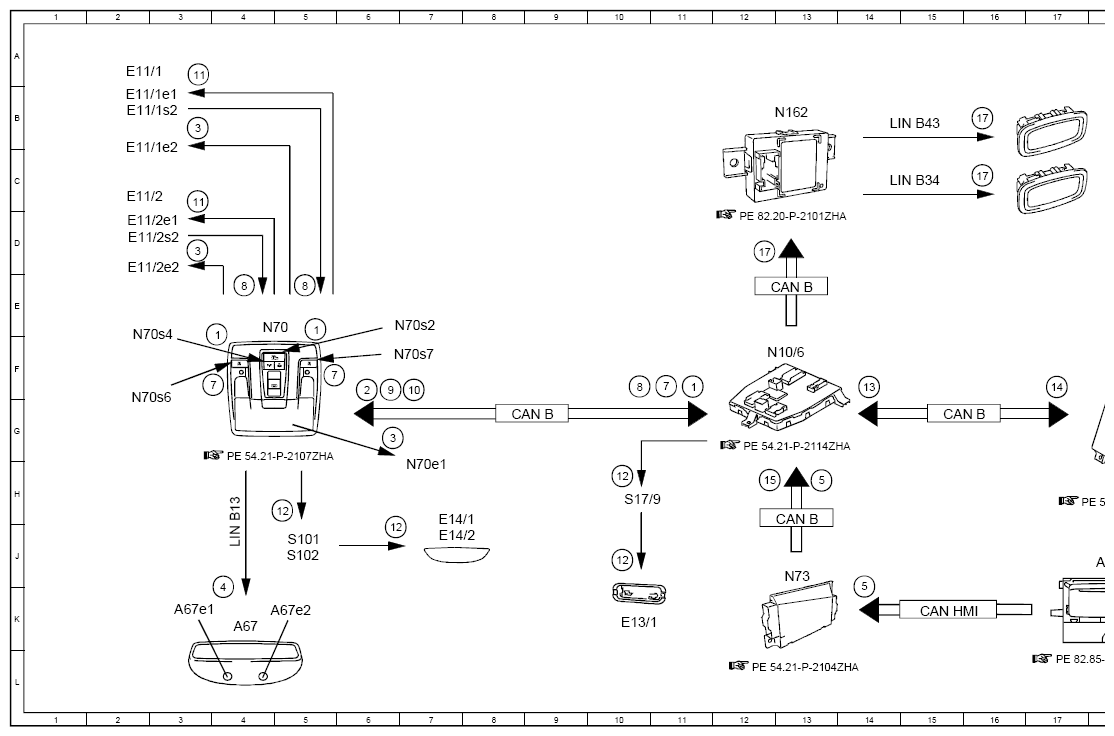

Electrical Function Schematic For Manual Interior Lights Control - PE82.20-P-2056-97ZGA
Model 463 (except 463.342)
as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Dome lamp button, status | 11F |
| 1 | Dome lamp button, status | 4F |
| 1 | Dome lamp button, status | 5E |
| 10 | Rear passenger compartment reading lamp, request | 7G |
| 11 | Rear reading lamp, actuation | 3A |
| 11 | Rear reading lamp, actuation | 3C |
| 12 | Power supply, status ON | 10H |
| 12 | Power supply, status ON | 5H |
| 12 | Power supply, status ON | 10J |
| 12 | Power supply, status ON | 6J |
| 13 | Rear-end door rotary tumbler switch status | 14F |
| 14 | Ambient lamp, request | 17F |
| 15 | Circuit 15, status | 12H |
| 16 | Ambient lamp, actuation | 20G |
| 17 | Ambience illumination, request | 12D |
| 17 | Ambience illumination, request | 16B |
| 17 | Ambience illumination, request | 16C |
| 2 | Interior lamp, request | 6F |
| 3 | Interior lamp, actuation | 6G |
| 3 | Interior lamp, actuation | 3D |
| 3 | Interior lamp, actuation | 3B |
| 4 | Front reading lamp, actuation | 4K |
| 5 | Operation, signal | 13H |
| 5 | Operation, signal | 14K |
| 6 | Voice input, signal | 19K |
| 7 | Front reading lamp button, status | 6F |
| 7 | Front reading lamp button, status | 11F |
| 7 | Front reading lamp button, status | 3F |
| 8 | Rear passenger compartment reading lamp button, status | 4E |
| 8 | Rear passenger compartment reading lamp button, status | 5E |
| 8 | Rear passenger compartment reading lamp button, status | 10G |
| 9 | Front reading lamp, request | 6G |
| A26/17 | Head unit | 18J |
| A67 | Inside rearview mirror | 4K |
| A67e1 | Left reading lamp | 3K |
| A67e2 | Right reading lamp | 4K |
| B25/20 | Driver hands-free system microphone | 21K |
| CAN B | Interior CAN | 13H |
| CAN B | Interior CAN | 8G |
| CAN B | Interior CAN | 13E |
| CAN B | Interior CAN | 15G |
| CAN HMI | User interface CAN | 15K |
| E11/1 | Left rear dome lamp | 2A |
| E11/1e1 | Left rear reading lamp | 2B |
| E11/1e2 | Left rear interior lamp | 2C |
| E11/1s2 | Left rear reading lamp button | 2B |
| E11/2 | Right rear dome lamp | 2C |
| E11/2e1 | Right rear reading lamp | 2D |
| E11/2e2 | Right rear interior lamp | 2D |
| E11/2s2 | Right rear reading lamp button | 2D |
| E13/1 | Glove box lamp | 10K |
| E14/1 | Left sun visor mirror lamp | 7H |
| E14/2 | Right sun visor mirror lamp | 7J |
| E17/15 | Right front footwell lamp | 18C |
| E17/16 | Left front footwell lamp | 18C |
| E17/17 | Left rear footwell lamp | 18B |
| E17/18 | Right rear footwell lamp | 18B |
| E18/4 | Left load compartment lamp | 21G |
| E18/5 | Right load compartment lamp | 21G |
| LIN B13 | Roof LIN | 4H |
| LIN B34 | Cockpit ambiance illumination LIN | 15C |
| LIN B43 | Rear passenger compartment footwell ambient lighting LIN | 15B |
| N10/6 | Front SAM control unit | 13F |
| N10/8 | Rear SAM control unit | 18F |
| N162 | Ambiance illumination control unit | 12B |
| N70 | Overhead control panel control unit | 4E |
| N70e1 | Front dome lamp | 7H |
| N70s2 | Rear dome lamp button | 7E |
| N70s4 | Front dome lamp button | 2F |
| N70s6 | Left front reading lamp button | 2G |
| N70s7 | Right front reading lamp button | 7F |
| N73 | Electronic ignition switch control unit | 13J |
| S101 | Left front mirror lamp switch | 5J |
| S102 | Right front mirror lamp switch | 5J |
| S17/9 | Glove box lamp switch | 10H |
