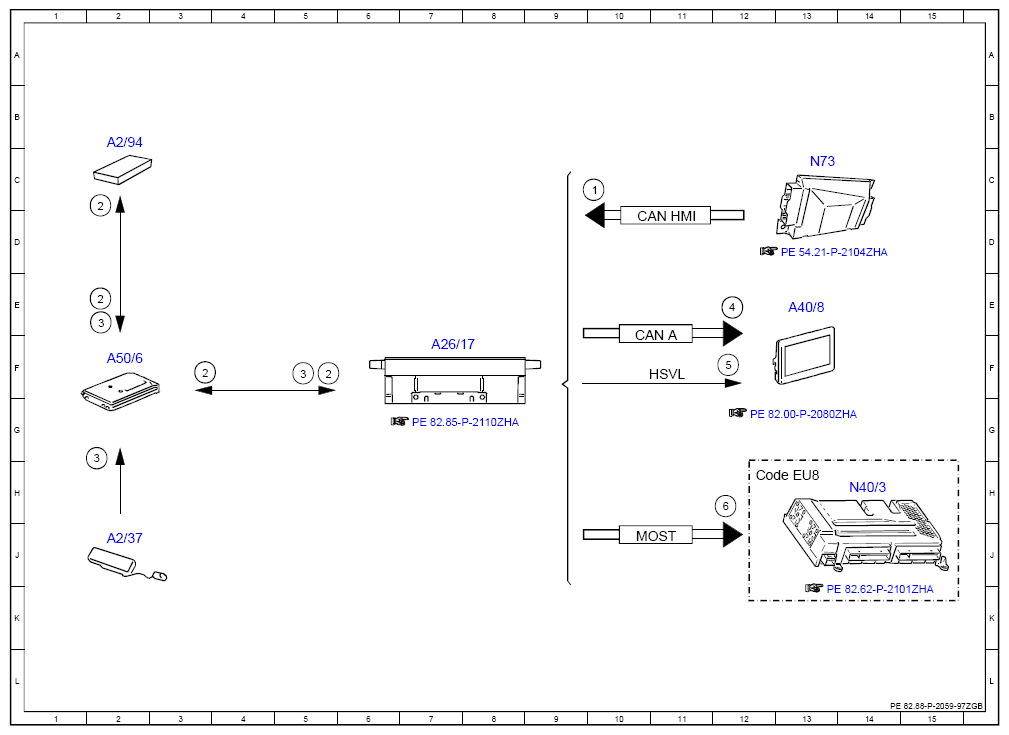

Electrical Function Schematic For Dedicated Short-Range Communications - PE82.88-P-2059-97ZGB
Model 463 (except 463.342)
as of model year 2019
with code Z13 (ETC/DSRC)
with code Z14 (VICS (Vehicle Information + Communication System))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 10C |
| 2 | Electronic Toll Collection (ETC), signal | 5F |
| 2 | Electronic Toll Collection (ETC), signal | 3F |
| 2 | Electronic Toll Collection (ETC), signal | 2E |
| 2 | Electronic Toll Collection (ETC), signal | 2C |
| 3 | Vehicle Information and Communication System (VICS), signal | 5F |
| 3 | Vehicle Information and Communication System (VICS), signal | 2E |
| 3 | Vehicle Information and Communication System (VICS), signal | 2H |
| 4 | Switch-on request, signal | 12E |
| 5 | Audio/COMAND display, actuation | 12F |
| 6 | Voice output, signal | 12H |
| A2/37 | Vehicle Information and Communication System (VICS) control unit | 2J |
| A2/94 | Electronic toll collection (ETC) antenna | 2B |
| A26/17 | Head unit | 7F |
| A40/8 | Audio/COMAND display | 13E |
| A50/6 | Dedicated Short-Range Communications control unit | 2F |
| CAN A | Telematics CAN | 10F |
| CAN HMI | User interface CAN | 11D |
| Code EU8 | Burmester 3D surround sound system | 12H |
| HSVL | High-speed video link | 11F |
| MOST | Media Oriented System Transport | 10J |
| N40/3 | Sound system amplifier control unit | 14H |
| N73 | Electronic ignition switch control unit | 13C |
