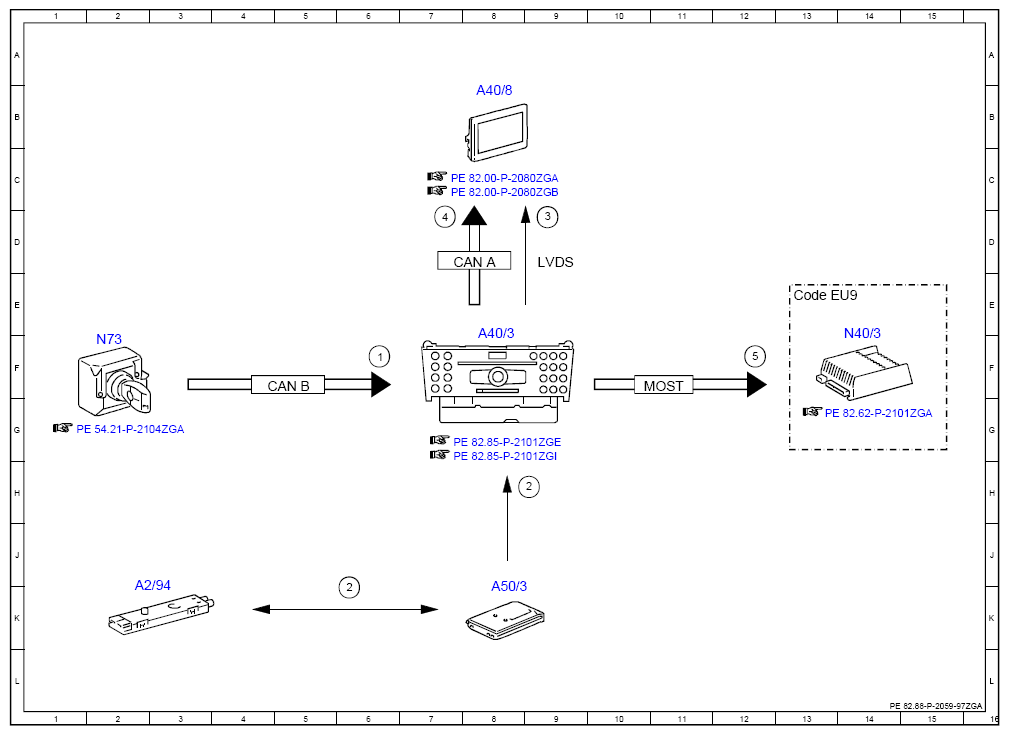

Electrical Function Schematic For Dedicated Short-Range Communications - PE82.88-P-2059-97ZGA
Model 463
as of model year 2013 up to model year 2019
with code ZJ1 (Local version for Japan)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15R/circuit 15, status ON | 6F |
| 2 | Dedicated Short-Range Communications, signal | 9H |
| 2 | Dedicated Short-Range Communications, signal | 6K |
| 3 | Audio/COMAND display, signal | 9D |
| 4 | Switch-on request, signal | 7D |
| 5 | Audio, signal | 12F |
| A2/94 | DSRC antenna | 2K |
| A40/3 | COMAND control unit | 8F |
| A40/8 | Audio/COMAND display | 8B |
| A50/3 | DSRC control unit | 8K |
| CAN A | Telematics CAN | 8D |
| CAN B | Interior CAN | 5F |
| Code EU9 | Surround sound system (Harman/Kardon Logic 7) | 13E |
| LVDS | Low voltage differential signal | 9D |
| MOST | Media Oriented System Transport | 11F |
| N40/3 | Sound system amplifier control unit | 14F |
| N73 | Electronic ignition switch control unit | 2F |
