Removing And Installing Loudspeaker In Instrument Panel - AR82.62-P-7833XG
Model 463
as of model year 2019
with code EU8 (Burmester® surround sound system)

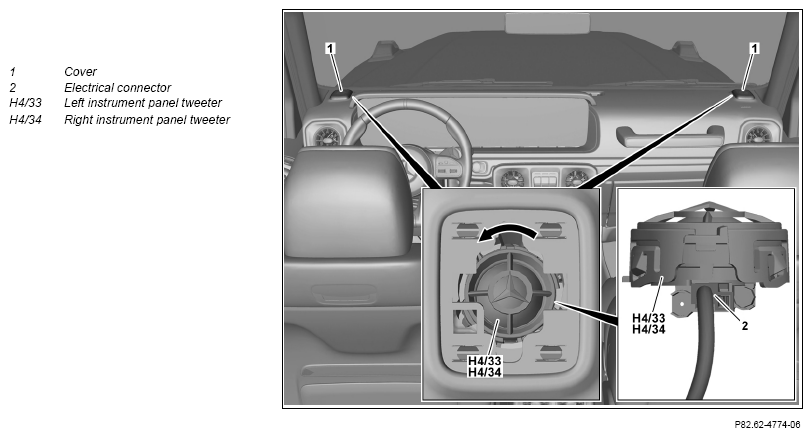

Fig 1: Loudspeaker In Instrument Panel Components Location - Model 463 As Of Model Year 2019 With Code EU8
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (at least 2 m). | ||
| 2 | Unclip cover (1). | Fig 2 | |
| 3 | Remove left instrument panel tweeter (H4/33) or right instrument panel tweeter (H4/34) from holder clockwise. | ||
| 4 | Tilt left instrument panel tweeter (H4/33) or right instrument panel tweeter (H4/34) in the direction of the arrow and pull out of instrument panel. | ||
| 5 | Disconnect electrical connector (2). | ||
| 6 | Install in reverse order. |
