Remove/Install TV Tuner - AR82.85-P-7366GW
Model 463 (except 463.242)
as of model year 2013 up to model year 2019
with code EM8 (TV tuner)

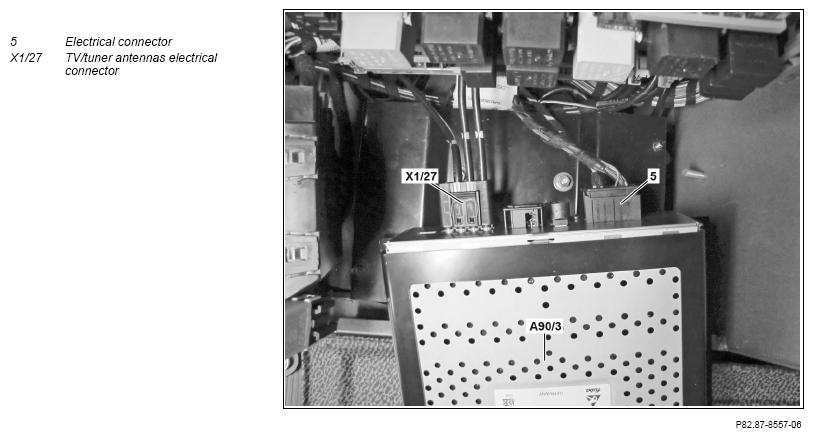

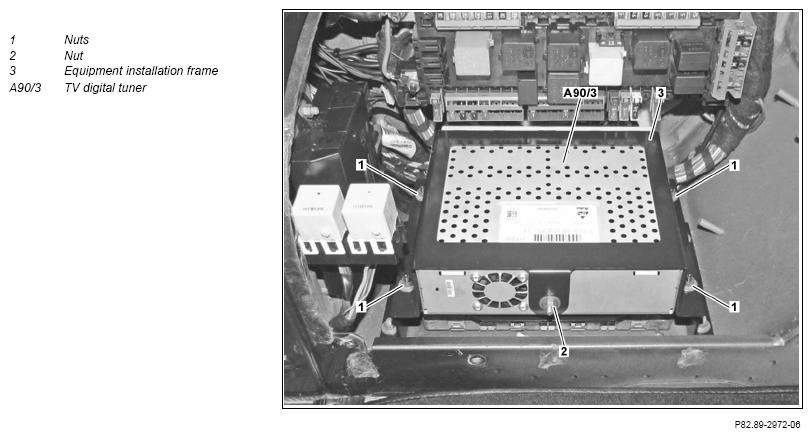

Fig 1: TV Tuner Components Location - Model 463 (Except 463.242) As Of Model Year 2013 Up To Model Year 2019 With Code EM8 (TV Tuner)
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Connect XENTRY Diagnosis and perform commissioning of digital TV tuner (A90/3). | ||
| AD00.00-P-2000-04A | |||
| 2 | Remove ground line at battery. | Model 463 (except 463.234/236/241/242/248) as of model year 2013 up to model year 2019 with code EM8 (TV tuner) |
AR54.10-P-0003GW |
| 3 | Remove fuse box cover in load compartment. | Model 463 (except 463.242) as of model year 2013 up to model year 2019 with code EM8 (TV tuner) |
AR68.30-P-5410GW |
| 4 | Unscrew nuts (1). | ||
| 5 | Take out digital TV tuner (A90/3) together with device installation frame (3) far enough to access the electrical connectors. | ||
| 6 | Disconnect electrical connector for TV tuner/antennas (X1/27). | ||
| 7 | Disconnect electrical connector (5). | ||
| 8 | Take out digital TV tuner (A90/3) together with device installation frame (3). | ||
| 9 | Unscrew nut (2) and take device installation frame (3) off of digital TV tuner (A90/3). | ||
| 10 | Install in reverse order. |
