Remove/Install Rear Window Wiper Motor - AR82.30-P-6900XG

Model 463

as of model year 2019

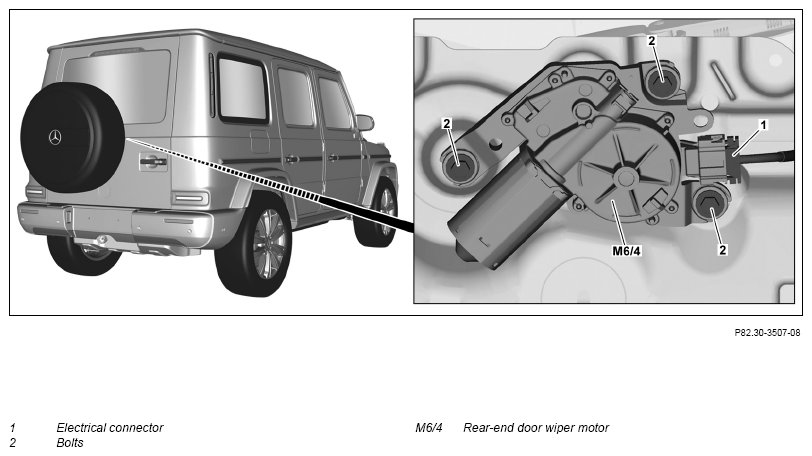

Fig 1: Rear Window Wiper Motor Components Location - Model 463 As Of Model Year 2019

G13669781

Courtesy of MERCEDES-BENZ USA

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
	Remove/install
1	Move rear-end door wiper motor (M6/4) to park position.
2	Remove wiper arm on rear-end door.		AR82.30-P-6910XG
3	Remove door trim on rear-end door.		AR72.20-P-6615XG
4	Disconnect electrical connector (1).
5	Unscrew bolts (2).	Bolt of wiper motor to rear-end door	*BA82.30-P-1013-01B
6	Take rear-end door wiper motor (M6/4) out of rear-end door.	: Check grommet on rear window for condition and correct seating and replace if necessary.
7	Install in reverse order.

WINDSHIELD WIPER

Number	Designation		Model 461 Model 463 up to model year 2019	Model 463 as of model year 2019
BA82.30-P-1013-01B	Bolt of wiper motor to rear-end door	Nm	-	5
