Remove/Install Rear Window Wiper Motor - AR82.30-P-6900GW

Model 463 (except 463.202)

as of model year 2013 up to model year 2019

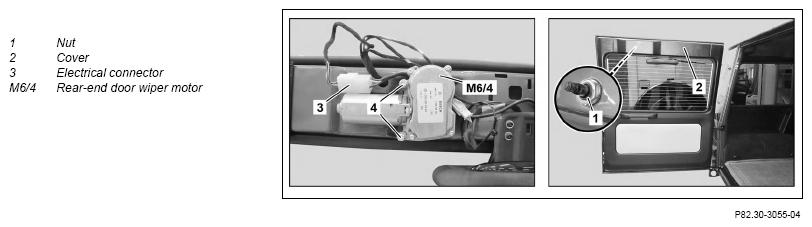

Fig 1: Rear Window Wiper Motor Components Location - Model 463 (Except 463.202) As Of Model Year 2013 Up To Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
1	Switch off ignition.
2	Remove rear window wiper.
3	Remove dust cap from wiper shaft.
4	Unscrew nut (1).	Nut, rear-end door wiper bearing	*BA82.30-P-1006-01B
5	Unclip trim (2).	Do not tilt the trim (2) when unclipping. There is a risk of the center mount breaking.
6	Disconnect the electrical connector (3).
7	Remove screws (4).	Bolts on rear-end door wiper motor	*BA82.30-P-1007-01B
8	Remove rear-end door wiper motor (M6/4).
9	Install in reverse order.
