Remove/Install Loudspeaker In Front Footwell - AR82.62-P-7853XG
Model 463
as of model year 2019
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (at least 2 m). | ||

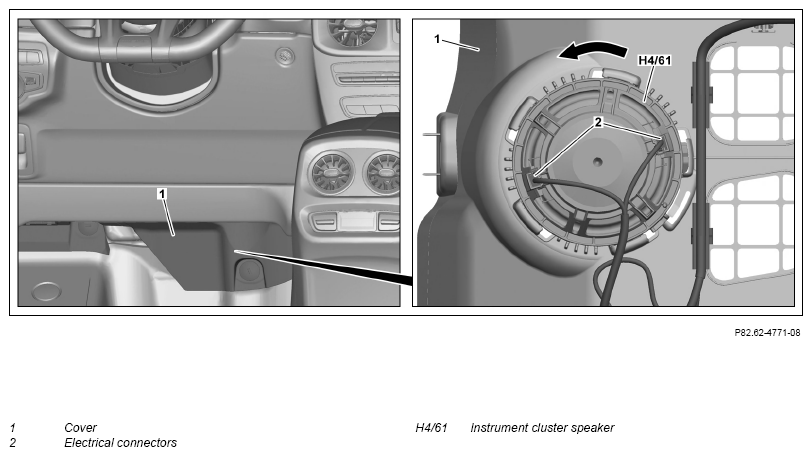

| 2 | Remove cover (1) below instrument panel in driver footwell. | AR68.10-P-1501XG | |
| 3 | Disconnect electrical connectors (2). | ||
| 4 | Remove instrument cluster speaker (H4/61) from holder (arrow). | ||
| 5 | Install in reverse order. |
