Remove/Install Antenna Splitter - AR82.70-P-8953XG
Model 463
as of model year 2019
with code B24 (Remote control for Auxiliary heating)
with code EG1 (Auto telephony)
with code EH6 (Multifunction telephony)

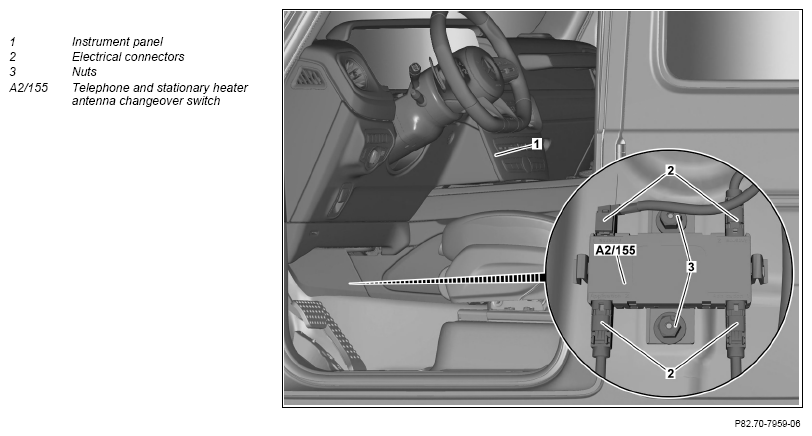

Fig 1: Antenna Splitter/Changeover Switch Components Location - Model 463 As Of Model Year 2019 With Codes B24, EG1 And EH6
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (at least 2 m). | ||
| 2 | Remove instrument panel (1). | AR68.10-P-1000XG | |
| 3 | Disconnect electrical connectors (2). | ||
| 4 | Remove nuts (3). | ||
| 5 | Remove telephone and stationary heater antenna changeover switch (A2/155). | ||
| 6 | Install in reverse order. |
