Remove/Install Antenna Splitter - AR82.70-P-8953GW
Model 463 (except 463.202)
as of model year 2013 up to model year 2019

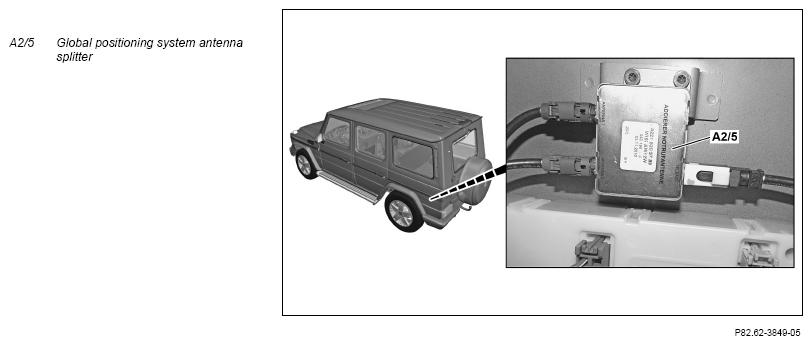

Fig 1: Antenna Splitter Components Location - Model 463 (except 463.202) As Of Model Year 2013 Up To Model Year 2019
| Remove/install | ||||
| 1 | Unclip rear passenger compartment fuse box from holder and place to one side with connected lines | Remove/install rear control unit Model 463 (except 463.242) as of model year 2013 up to model year 2019 |
AR54.21-P-2009GW | |
| 2 | Disconnect electrical connectors from global positioning system antenna splitter (A2/5) | |||
| 3 | Remove screws and remove global positioning system antenna splitter (A2/5) from bracket | |||
| 4 | Install in the reverse order | |||
