Check And Correct The Adjustment Of The Headlamps - AP82.10-P-8260G
Model 460, 461
Model 463
up to model year 2019
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Risk of explosion/risk of fire caused by highly flammable materials in the vicinity of damaged xenon bulbs. Risk of injury caused by UV light, hot components on xenon headlamps and glass splinters produced by bursting xenon bulbs. Risk of poisoning caused by inhalation of mercury vapors and by swallowing of/skin contact with toxic salts and mercury compounds. | Do not touch parts conducting high voltage. Persons with active electronic implants (e.g. cardiac pacemakers) must never work on xenon headlamps. Switch off the entire lighting system. Wear insulated safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the danger zone. Ensure sufficient ventilation in the working area. |
AS82.10-Z-0001-01A | |
| General information on checking/correcting headlamp adjustment | AH82.10-P-1000-01A | ||
| Remove | |||
| 1 | Remove headlamp trim | Vehicle with headlamp trim. | |
| Model 461 Model 463.200/204/206/207/208/209/220/221/224/225/227/228/230/231/232/233/240/241/300/304/307/308/320/321/324/325/327/328/330/331 up to model year 2013 |
AR88.00-P-2100G | ||
| Model 463.202/236/237/346 up to model year 2013 Model 463.222/243/244/245/246/247/248/249/250/254/270/271/272/303/306/309/322/323/332/333/336/340/341 up to model year 2013 |
AR88.00-P-2100GR | ||
| Model 463 as of model year 2013 up to model year 2019 |
AR88.00-P-2100GW | ||
| Check | |||

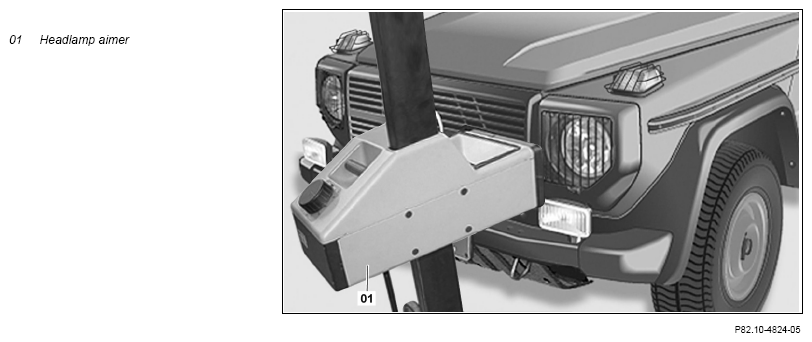

| 2 | Check low beam setting; adjust if necessary | Before the low beams are checked and adjusted, all operation steps listed in the linked description must be performed carefully. Otherwise it cannot be guaranteed that the headlamps concerned are correctly set, which can then jeopardize the road safety of the vehicle. |
AP82.10-P-8260-01GX |
| 3 | Switch on high beam | On vehicle with active high beams assistant ↓ Have a second person actuate the headlamp flasher in order to activate the high beams. |
|
| 4 | Check setting of high beam | If the high beam setting is not OK. ↓ Rectify problem subject to separate repair order. |
AP82.10-P-8260-02GX |
| Install | |||
| 5 | Install headlamp cover | Vehicle with headlamp trim. | |
| Model 461 Model 463.200/204/206/207/208/209/220/221/224/225/227/228/230/231/232/233/240/241/300/304/307/308/320/321/324/325/327/328/330/331 up to model year 2013 |
AR88.00-P-2100G | ||
| Model 463.202/236/237/346 up to model year 2013 Model 463.222/243/244/245/246/247/248/249/250/254/270/271/272/303/306/309/322/323/332/333/336/340/341 up to model year 2013 |
AR88.00-P-2100GR | ||
| Model 463 as of model year 2013 up to model year 2019 |
AR88.00-P-2100GW |
