Overview Of System Components, Telematics - GF82.85-P-9999GW
Model 463 (except 463.342)
as of model year 2013 up to model year 2019
Model 463.342

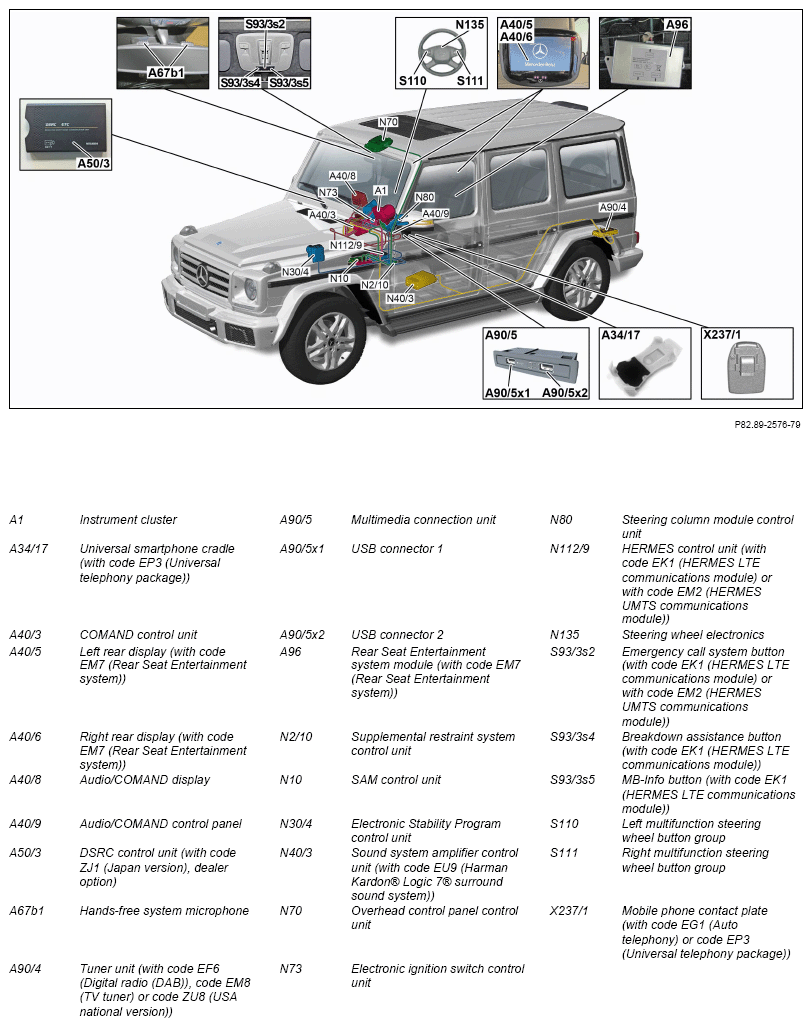

Model 463 (except 463.342) as of 01.09.2016, shown without antenna system and speaker system

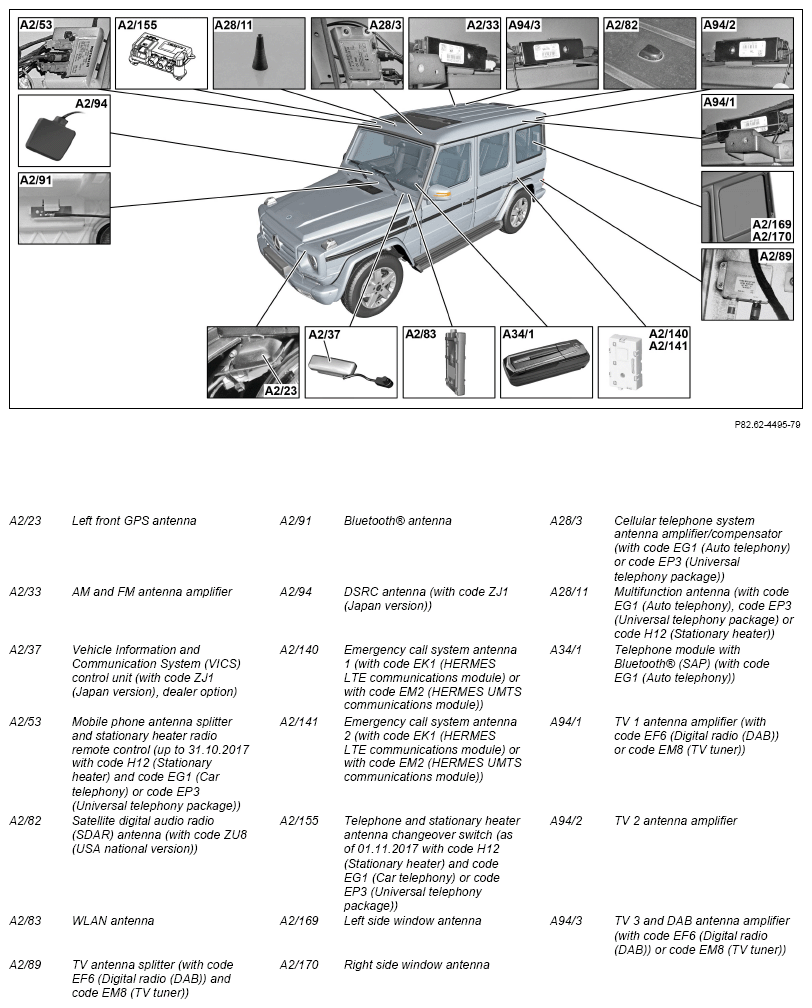

Model 463 (except 463.342) as of 01.09.2016, shown with telematics antenna system

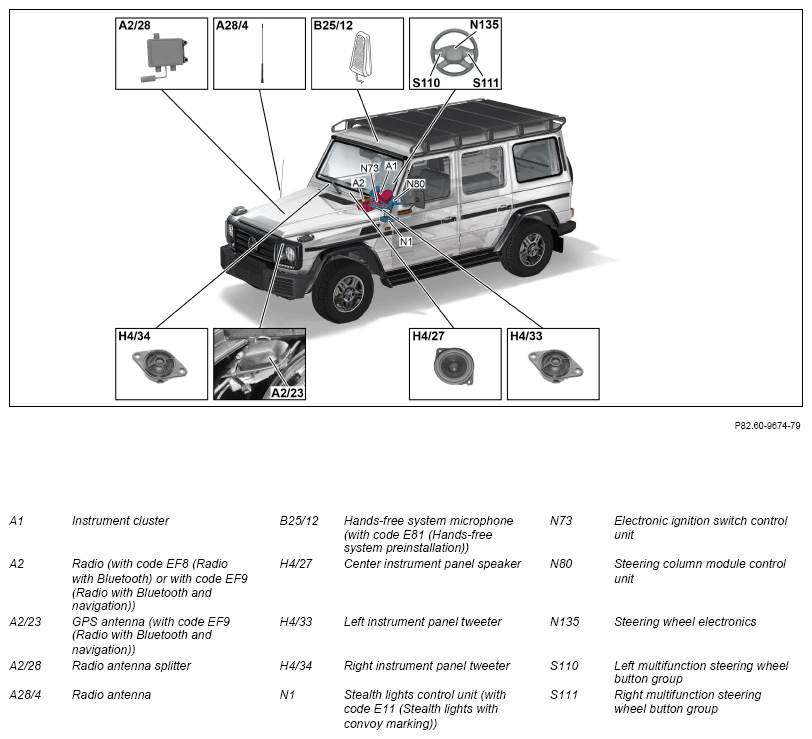

Model 463.342 as of 01.09.2016

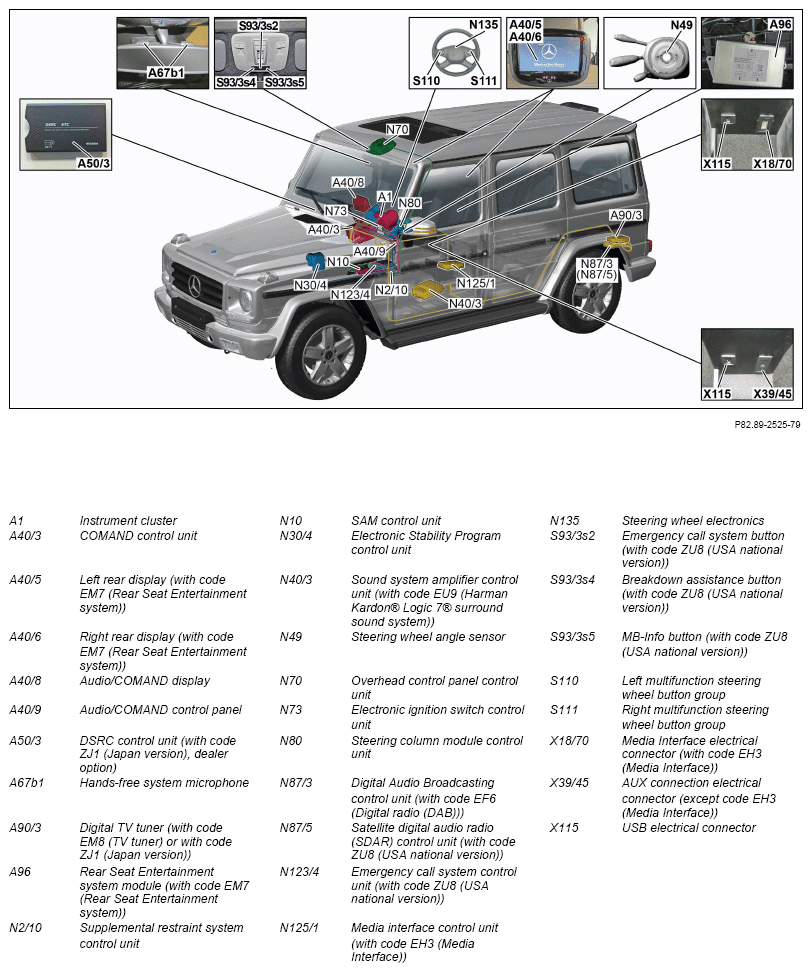

Model 463 up to 31.08.2016, shown on model 463.236 (without antenna system and speaker system)

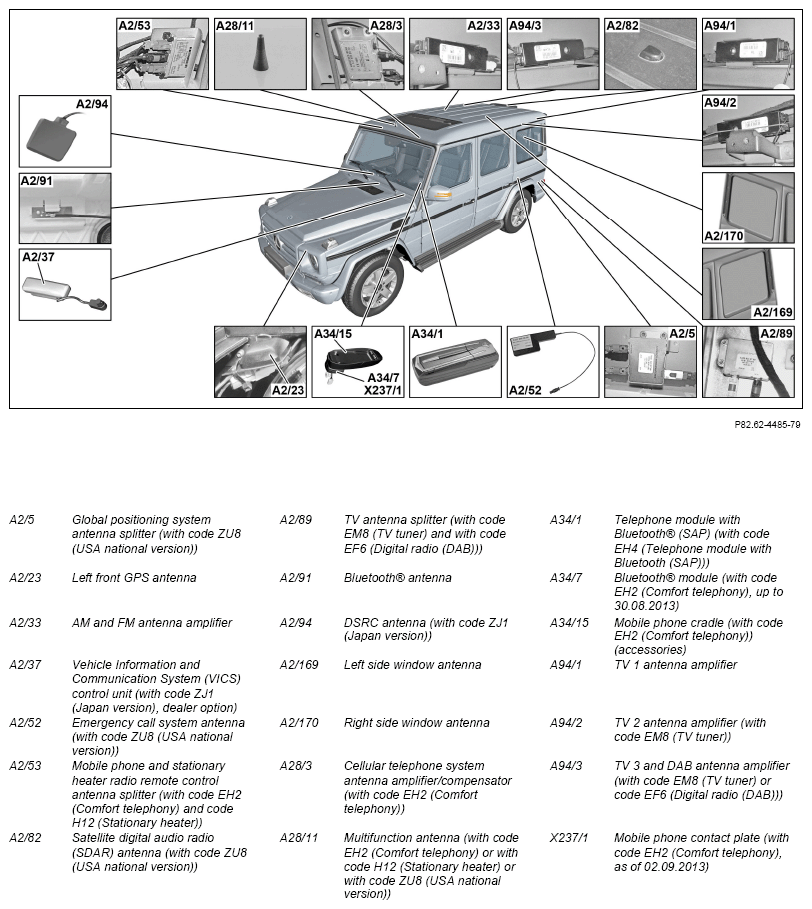

Model 463 up to 31.08.2016 except model 463.202, shown on model 463.236, telematics antenna system

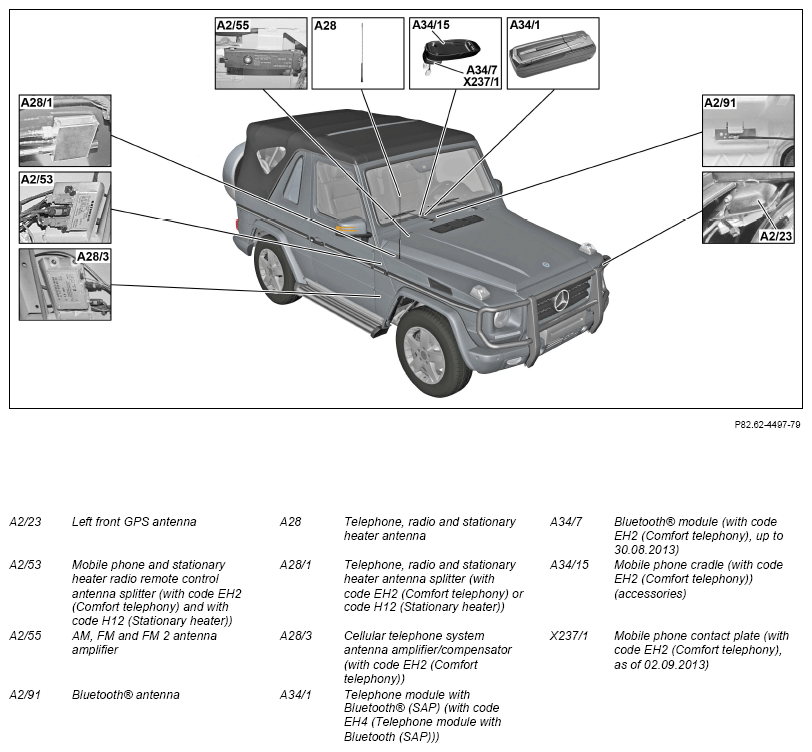

Model 463.202 up to 31.07.2014 telematics antenna system

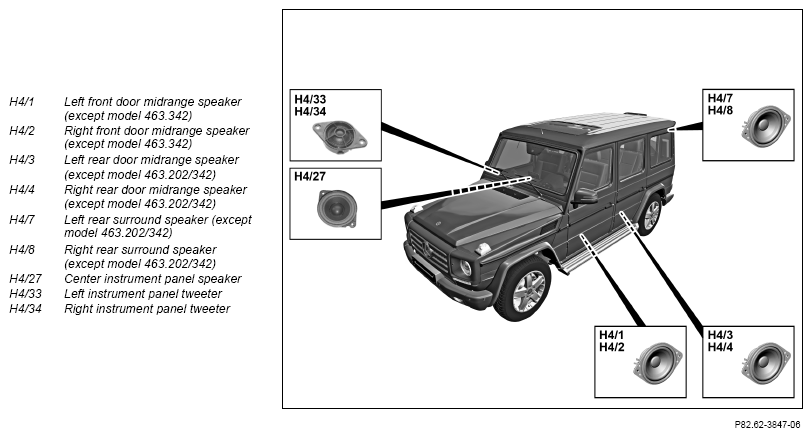

Speaker system except code EU9 (Harman Kardon® Logic 7® surround sound system), shown on model 463.236

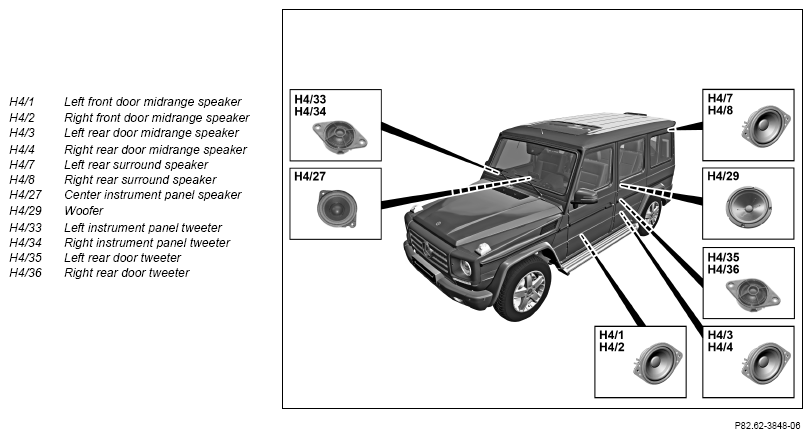

Speaker system with code EU9 (Harman Kardon® Logic 7® surround sound system), shown on model 463.236
| Component description for instrument cluster | Model 463 as of model year 2013 up to model year 2019 A1 |
GF54.30-P-6000GW | |
| Component description for the radio | Model 463.342 as of model year 2017 up to model year 2019 with code EF8 (Radio with Bluetooth) Model 463.342 as of model year 2017 up to model year 2019 with code EF9 (Radio with Bluetooth and navigation) A2 |
GF82.60-P-3122GW | |
| Component description for COMAND controller unit | Model 463 as of model year 2017 up to model year 2019 with code EU4 (COMAND Online) A40/3 |
GF82.85-P-3136GWA | |
| Model 463 as of model year 2013 up to model year 2017 A40/3 |
GF82.85-P-3136GW | ||
| Component description for Audio/COMAND display | Model 463 (except 463.342) as of model year 2013 up to model year 2019 A40/8 |
GF54.30-P-6150GW | |
| Component description for Audio/COMAND control panel | Model 463 (except 463.342) as of model year 2013 up to model year 2019 A40/9 |
GF54.21-P-4501GW | |
| Digital TV tuner, component description | Model 463 as of model year 2013 up to model year 2017 with code EM8 (TV tuner) A90/3 |
GF82.60-P-3118GW | |
| Tuner unit, component description | Model 463 as of model year 2017 up to model year 2019 with code EF6 (Digital radio (DAB)) Model 463 as of model year 2017 up to model year 2019 with code EM8 (TV tuner) Model 463 as of model year 2017 up to model year 2019 with code ZU8 (National version for USA) A90/4 |
GF82.60-P-5015GW | |
| Stealth lights control unit, component description | Model 463.342 as of model year 2017 with code E11 (Blackout lighting with convoy light) N1 |
GF82.10-P-2021GW | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GW | |
| SAM control unit, component description | Model 463 (except 463.342) as of model year 2013 up to model year 2019 N10 |
GF54.21-P-4157GW | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GW | |
| Component description for sound system amplifier control unit | Model 463 as of model year 2013 up to model year 2019 with code EU9 (Harman Kardon® Logic 7® surround sound system) N40/3 |
GF82.62-P-5010GW | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GW | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GW | |
| Component description for Digital Audio Broadcasting control unit | Model 463 as of model year 2013 up to model year 2017 with code EF6 (Digital radio (DAB)) N87/3 |
GF82.62-P-5000GW | |
| Satellite digital audio radio (SDAR) control unit, component description | Model 463 as of model year 2013 up to model year 2017 with code ZU8 (National version for USA) N87/5 |
GF82.85-P-3121GWU | |
| HERMES control unit, component description | Model 463 as of model year 2017 up to model year 2019 with code EK1 (Communications module (LTE) for the use of Mercedes) Model 463 as of model year 2017 up to model year 2019 with code EM2 (Communications module (UMTS) for the use of Merced) N112/9 |
GF82.85-P-0221GW | |
| Component description for emergency call system control unit | Model 463 as of model year 2013 up to model year 2017 with code ZU8 (National version for USA) N123/4 |
GF82.95-P-3212GWU | |
| Component description for media interface control unit | Model 463 as of model year 2013 up to model year 2017 with code EH3 (Media interface) N125/1 |
GF82.60-P-5000GW | |
| Table of contents for function description, telematics | GF82.85-P-0993GW |
