Digital TV Tuner, Component Description - GF82.60-P-3118GWM
Model 463 (except 463.342)
as of model year 2019
with code EM8 (TV tuner)

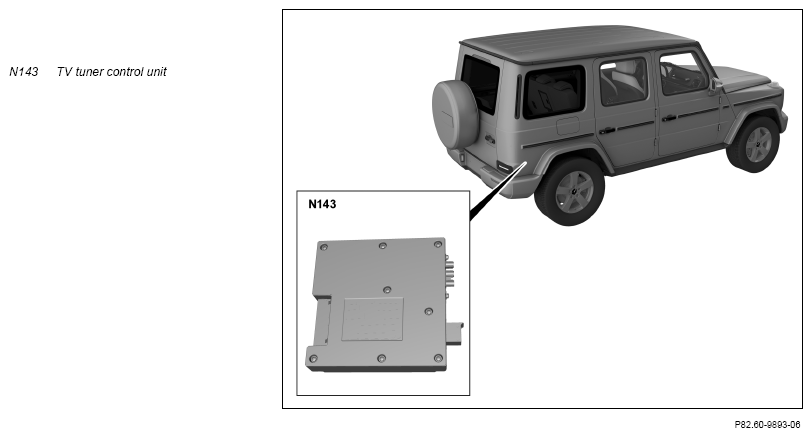

Location
The TV tuner control unit is located at the right in the toolbox in the trunk.
Tasks
The TV tuner control unit has the following tasks:
- Receive signals
- Processing signals
- Transmitting signals
Receive signals
The input factors are read in via the following connections:
- Media Oriented System Transport (MOST)
- Direct lines
MOST
The TV tuner control unit is a MOST participant and communicates over this with the head unit (A26/17).
Direct lines
The TV tuner control unit receives the following signals via direct lines:
- Power supply over circuit 31 and circuit 30T
- Electronic wake-up for MOST
- TV-1 signals from right rear side window pane antenna (A2/170) over the TV 1 antenna amplifier (A94/5)
- TV-2 signals from right rear side window pane antenna over the FM 2, DAB 2, TV 2 antenna amplifier (A2/108)
- TV-3 signals from left rear side window pane antenna (A2/169) over the TV 3 antenna amplifier (A94/7)
Processing signals
- The TV tuner control unit decodes and demodulates the TV signals and separates them into video and audio signals.
Transmitting signals
The initial parameters are transmitted over the following connections:
- MOST
- Direct lines
MOST
The TV tuner control unit is a MOST participant and communicates over this with the head unit. The audio signals are sent to the head unit and to the sound system amplifier control unit (N40/3) (with code EU8 (Burmester 3D surround sound system)).
Direct lines
The TV tuner control unit sends the following signals over direct lines:
- Supply voltage to TV 1 antenna amplifier
- Supply voltage to FM 2, DAB 2, TV 2 antenna amplifier
- Supply voltage to TV 3 antenna amplifier
- Video signals over a high speed video link (HSVL) line to the head unit
Structure
On vehicles except code ZJ1 (Version for Japan), the TV tuner control unit is equipped with a Common Interface Plus (CI+) slot. A CI+ module is inserted into this CI+ slot. The CI+ slot is equipped with a cover.
| Wiring diagram for TV tuner control unit | PE82.60-P-2110-97ZHA |
