Remove/Install Lower Engine Compartment Lining - Ar61.20-P-1105GWX
Model 463.234
up to model year 2019 with code ZQ0 (G 500 4x4 2 )
Model 463.255
up to model year 2019
with code MUK2 (USA or Canada vehicle model designation)
with code ZQ0 (G 500 4x4 2 )
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Remove/install | |||
| 1 | Raise vehicle | Model 463.234 as of model year 2010 up to model year 2013 with code ZQ0 (G 500 4x42 ) |
AR00.60-P-1000G |
| 2 |

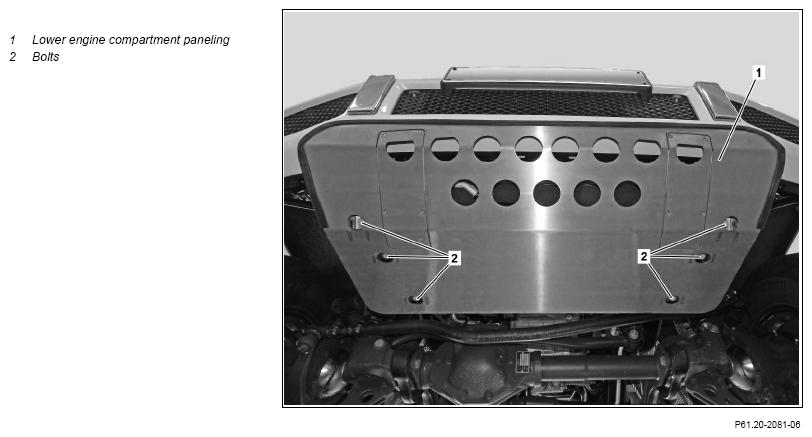

Secure engine compartment paneling (1) against falling down 000 588 10 62 00 Support plate |
WS26.00-P-3309B | |
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 3 | Remove screws (2) | ||
| 4 | Remove bottom engine compartment paneling (1) downward | ||
| 5 | Install in the reverse order |
