Seam Sealing Following Repair, Rear End Damage - Ar97.10-P-4000-02XG
Model 463
as of model year 2019
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
Processing difference in the seam seal

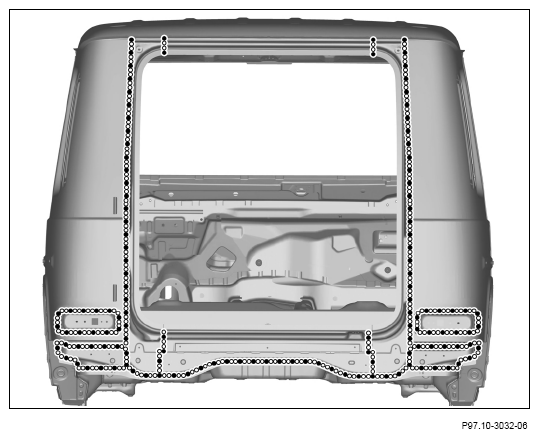

Area on rear end

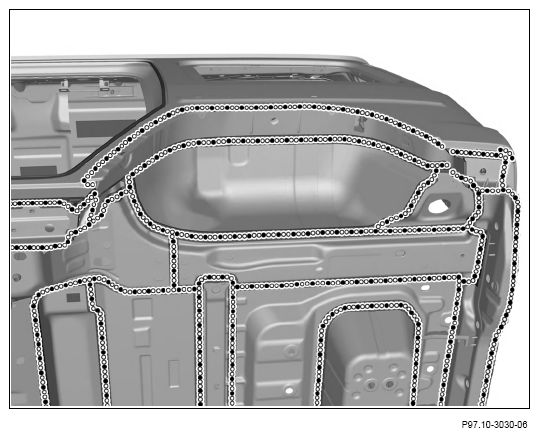

Area of fender and left rear wheel arch

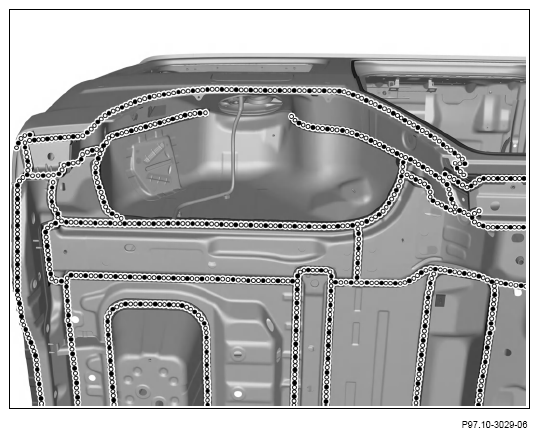

Area of fender and right rear wheel arch

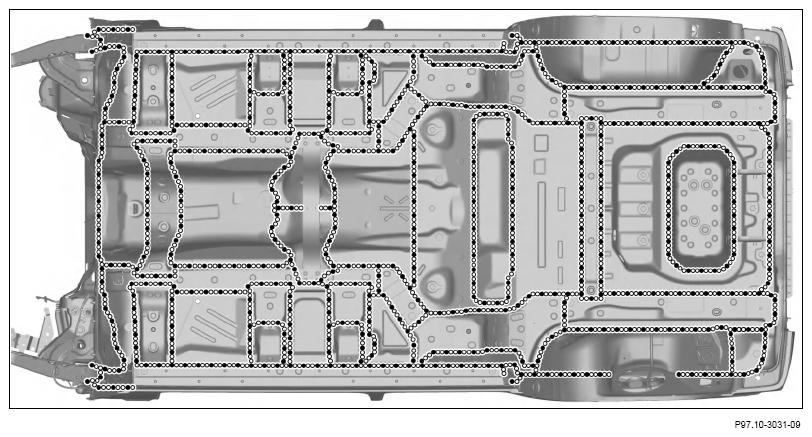

Area on underbody
- Seal connecting flanges, welded joints and riveted joints of the repaired area with sealant or seam seal.
- Insert grommets and feed-through grommets with sealant.
Observe standard sealing.
Seal only primed body parts.
Seal accessible spot weld flanges on both sides.
Ensure that the threads of the weld nuts and threaded pins as well as the drain openings and contact surfaces of the axle attachments, windows or detachable parts are kept free of seam sealant material.
