Seam Sealing Following Repair, Front End Damage - Ar97.10-P-4000-01XG
Model 463
as of model year 2019
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
Distinguish when processing seam seals:

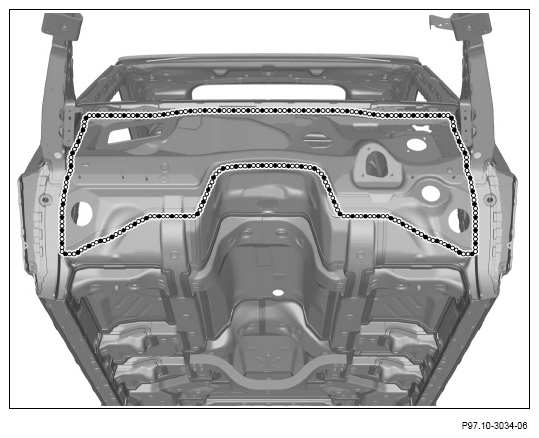

Area of outer firewall

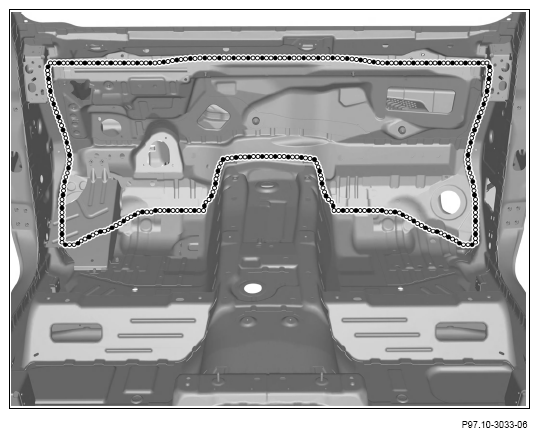

Area of inner firewall

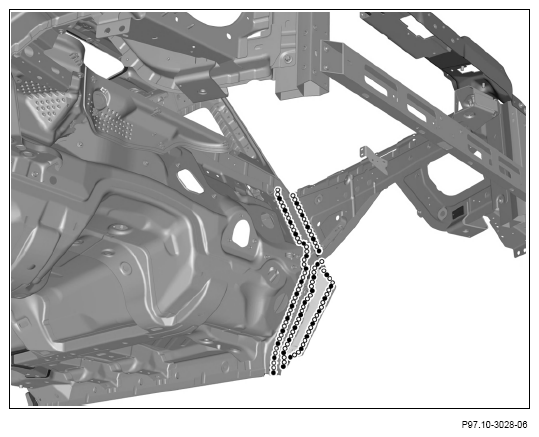

Area on inside of longitudinal member
- Seal connecting flanges, welded joints and riveted joints of the repaired area with sealant or seam seal.
Observe standard sealing.
Seal only primed body parts.
Seal accessible spot weld flanges on both sides.
Ensure that the threads of the weld nuts and threaded pins as well as the drain openings and contact surfaces of the axle attachments, windows or detachable parts are kept free of seam sealant material.
- Insert grommets and feed-through grommets with sealant.

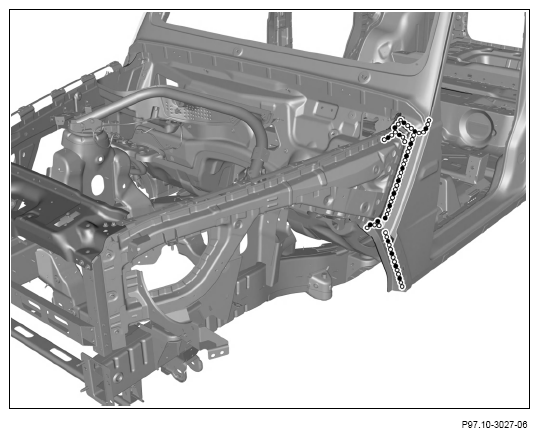

Area on outside of longitudinal member
