Remove Upper Firewall - Ar62.25-P-1200-01G

Model 461

except code 979 (Special protection MB Guard)

Model 463

up to model year 2019

except code 979 (Special protection MB Guard)

Courtesy of MERCEDES-BENZ USA

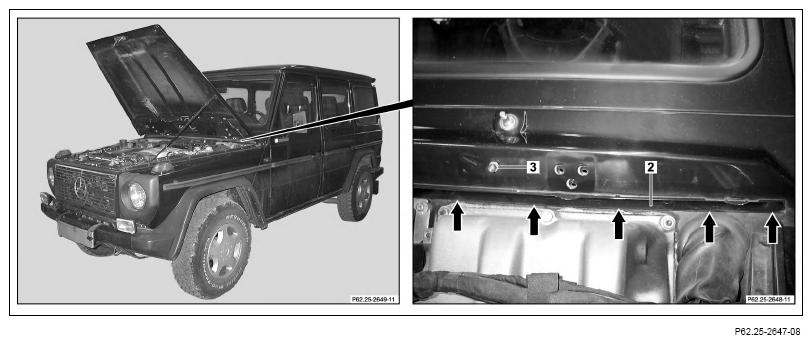

The following operation steps are shown on model 463 on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

1. Determine the installation position of the ground bolt (3).
2. Separate the ground bolt (3) from the firewall paneling (1) with the cutting disk.
3. Fold down sealing bar (2) in the repair area (arrows).

   In order to enable the removal of the firewall paneling (1).

   Courtesy of MERCEDES-BENZ USA

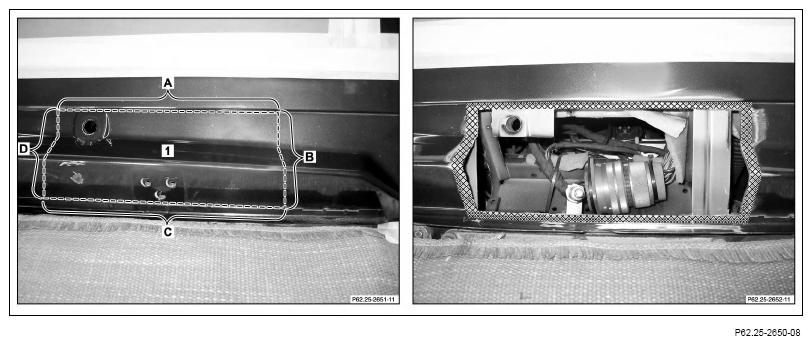

4. Scribe separation lines on firewall paneling (1) (areas A, B, C and D).
5. Separate firewall paneling (1) at separating points with body saw or cutting disk (areas A, B, C and D).

   Do not damage underlying metal sheets.

6. Remove damaged firewall paneling (1).
7. Grind mating surfaces down to bare metal in cross-hatched areas.
8. Remove grinding and sawing shavings using wet/dry vacuum cleaner.
