Prepare Upper Front Longitudinal Member - Ar62.20-P-1286-02XG
Model 463
as of model year 2019
The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.
The higher-level service information as well as the safety information must be observed.

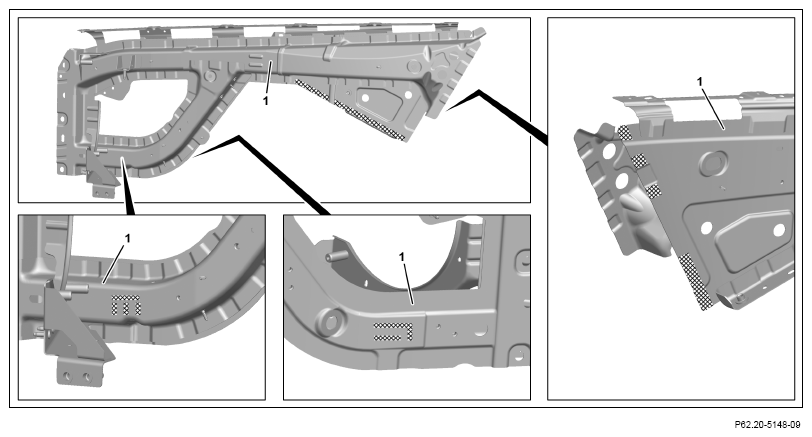

- Grind mating surfaces at longitudinal member (1) down to bare metal in cross-hatched areas.
Sand down spot weld flanges to bare metal on both sides.
- Remove grinding dust.
- Coat insides of spot weld flanges with zinc dust paint.

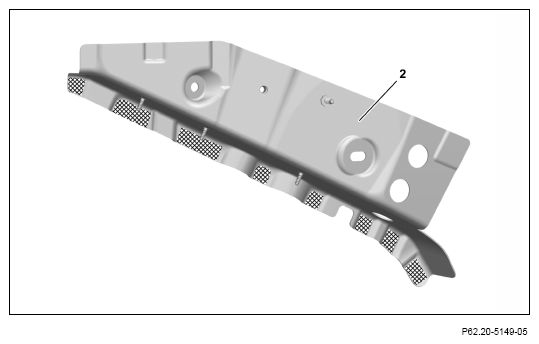

- Sand down mating surfaces on strut (2) to bare metal in crosshatched areas.
- Remove grinding dust.
- Coat insides of spot weld flanges with zinc dust paint.

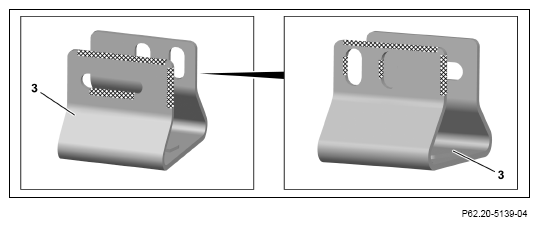

- Grind mating surfaces at bracket (3) down to bare metal in cross-hatched areas.
