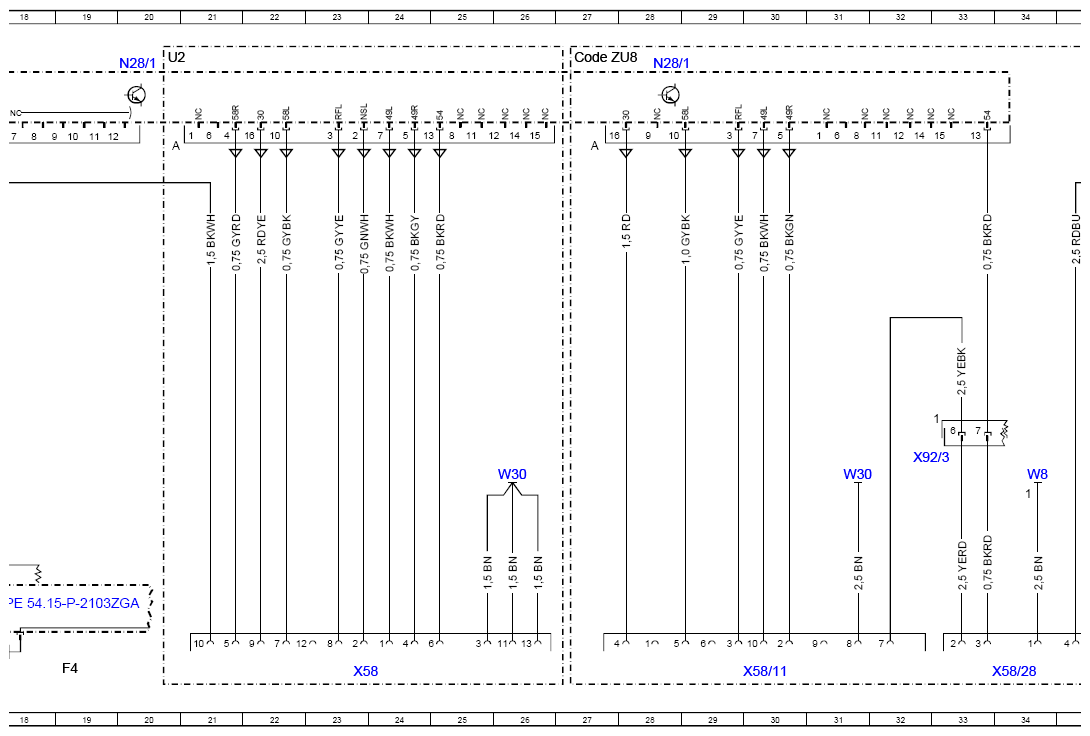

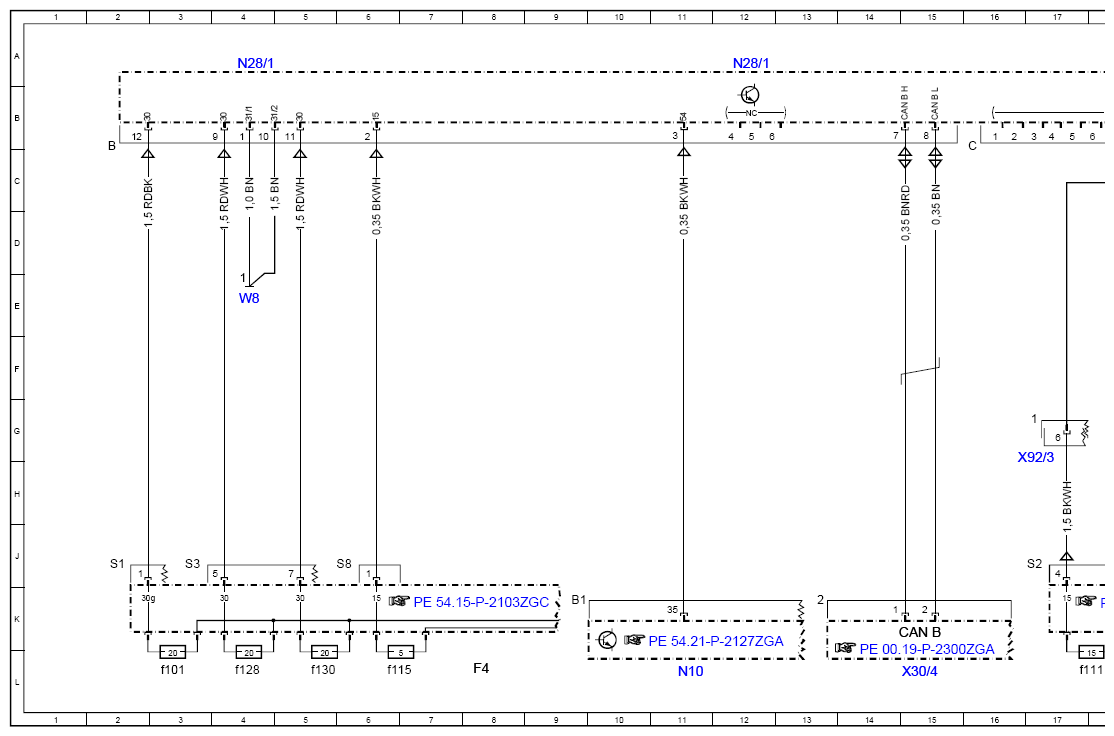

Trailer Recognition Control Unit Wiring Diagram - PE31.19-P-2101-97ZGA
Model 463 as of model year 2013 up to model year 2019
/year model 2012 model refinement package up to year model 2018 model refinement package, control unit N28/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| CAN B | Interior CAN | 15K |
| Code ZU8 | USA version | 27A |
| F4 | Rear fuse and relay module | 38L |
| F4 | Rear fuse and relay module | 8L |
| F4 | Rear fuse and relay module | 19L |
| F4f101 | Fuse 101 | 3L |
| F4f111 | Fuse 111 | 18L |
| F4f115 | Fuse 115 | 6L |
| F4f124 | Fuse 124 | 37L |
| F4f128 | Fuse 128 | 4L |
| F4f130 | Fuse 130 | 5L |
| N10 | SAM control unit | 11L |
| N28/1 | Trailer recognition control unit | 4A |
| N28/1 | Trailer recognition control unit | 12A |
| N28/1 | Trailer recognition control unit | 20A |
| N28/1 | Trailer recognition control unit | 28A |
| U2 | Valid for all except USA | 20A |
| W30 | Frame ground point | 26H |
| W30 | Frame ground point | 31H |
| W8 | Liftgate ground point | 4E |
| W8 | Liftgate ground point | 34H |
| X30/4 | Interior CAN 1 (CAN B) potential distributor electrical connector | 15L |
| X58 | Trailer socket | 23L |
| X58/11 | Trailer hitch socket (7-pin) | 30L |
| X58/28 | Electronic brake system electrical connector | 34L |
| X92/3 | Vehicle frame electrical connector (22-pin) | 17H |
| X92/3 | Vehicle frame electrical connector (22-pin) | 33H |
