Remove/Install Trim Piece On Passenger-Side Instrument Panel - AR68.10-P-1187XG

Model 463

as of model year 2019

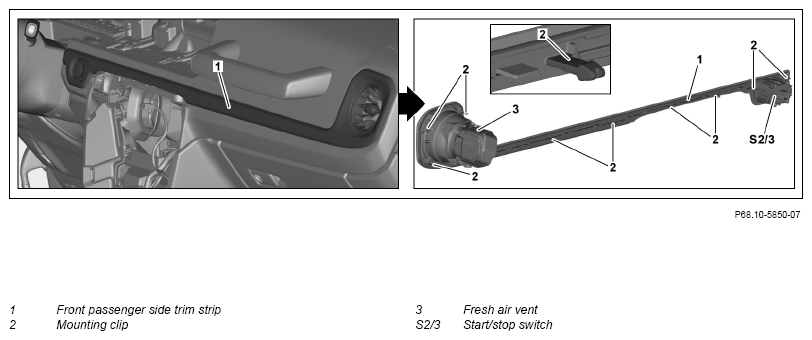

Fig 1: Trim Piece On Passenger-Side Instrument Panel Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove the center instrument panel cover.		AR68.10-P-3430XG
2	Unclip the front passenger side trim strip (1) from the retaining clips (2).	Long wedge	Fig 3
		Dismantling tool	Fig 2
3	Disconnect the electrical connector for the start/stop switch (S2/3).
4	Modify the air vent (3).	When replacing the front passenger side trim strip (1).
5	Modify the start/stop switch (S2/3).	When replacing the front passenger side trim strip (1).
6	Install in reverse order.

Fig 2: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
