Remove/Install Load Compartment Cover Guide Rail - AR68.30-P-1100XG
Model 463
as of model year 2019
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove trim on C-pillar. | AR68.30-P-4490XG | |
| 2 | Remove the D-pillar trim. | AR68.30-P-4497XG | |
| 3 | Unhook the load compartment roller cover. | ||
| 4 | Unscrew the bolt (2). | ||

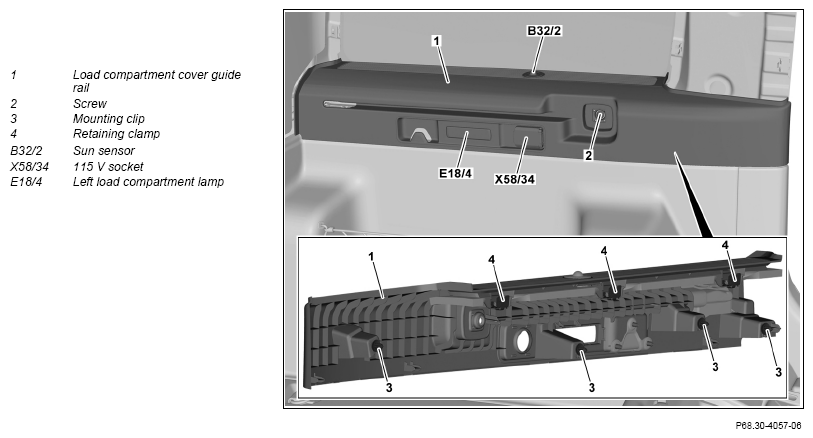

| 5 | Unclip the load compartment cover guide rail (1) from the retaining clip (3) and the retaining clamps (4). | ||
| 6 | Disconnect the electrical connector from the 115 V socket (X58/34). | ||
| 7 | Disconnect the electrical connector from the left load compartment lamp (E18/4) and the right load compartment lamp (E18/5). | ||
| 8 | Disconnect the electrical connector from the sun sensor (B32/2). | ||
| 9 | Remove the load compartment cover guide rail (1). | ||
| 10 | Install in reverse order. |
