Remove/Install Front Bumper - AR88.20-P-2000GWB
Model 463
as of model year 2016 up to model year 2019
with code C13 (Front bumper in steel)

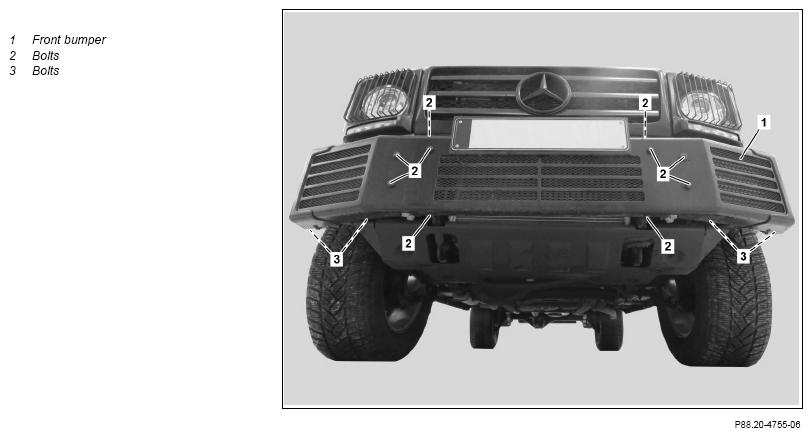

Fig 1: Front Bumper Components Location - Model 463 As Of Model Year 2016 Up To Model Year 2019 With Code C13
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove bolts (3) | ||
| 2 | Secure front bumper (1) against falling down | ||
| 3 | Unscrew bolts (2) | ||
| 4 | Guide front bumper (1) to right side | ||
| 5 | Guide out front bumper (1) to left side and remove front bumper (1) | ||
| 6 | Install in the reverse order |
