Remove/Install Front Bumper - AR88.20-P-2000GWA
Model 463
as of model year 2016 up to model year 2019
except code 990 (AMG car docs./desig. plate allocation)
except code C13 (Front bumper in steel)

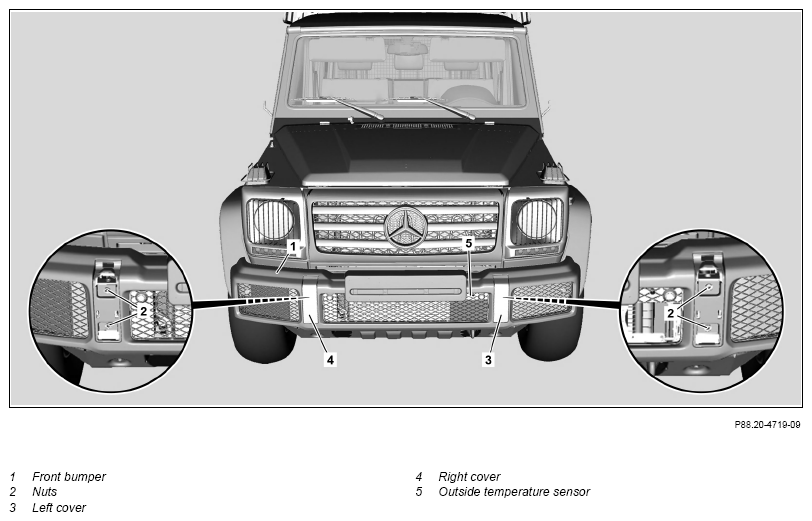

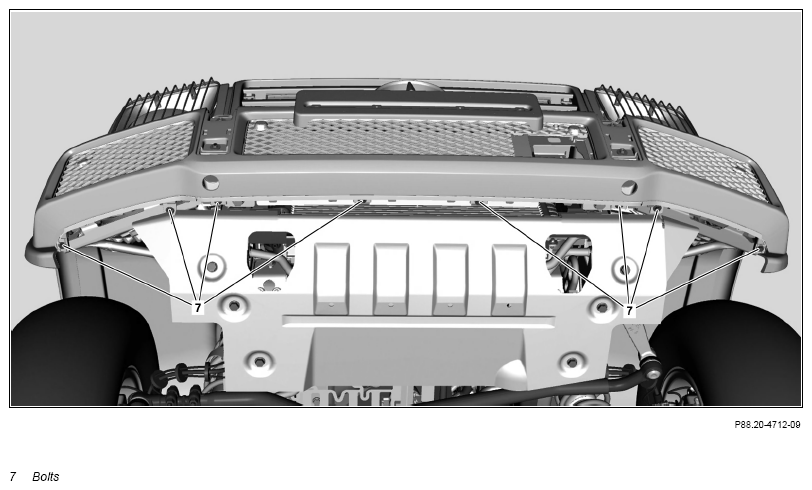

Fig 1: Front Bumper Components Location - Model 463 As Of Model Year 2016 Up To Model Year 2019 Except Code 990 Except Code C13
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Lift vehicle with vehicle lift | Model 463 as of model year 2016 up to model year 2019 except code 990 (AMG car docs./desig. plate allocation) except code C13 (Front bumper in steel) |
AR00.60-P-1000-01G |
| 2 | Unclip right cover (4) and left cover (3) | ||
| 3 | Remove screws (7) | ||
| 4 | Unscrew nuts (2) | ||
| 5 | Pull front bumper forward (1) until the electrical connectors are accessible | ||
| 6 | Unclip outside temperature sensor (5) from bumper (1) | ||
| 7 | Release and disconnect electrical connectors of the park sensors | Model 463 as of model year 2016 up to model year 2019 with code EZ8 (PARKTRONIC) except code 990 (AMG car docs./desig. plate allocation) except code C13 (Front bumper in steel) |
|
| 8 | Remove bumper (1) forward | ||
| 9 | Install in the reverse order |
