Remove/Install Front Bumper - AR88.20-P-2000GW
Model 463
as of model year 2013 up to model year 2019
with code 990 (AMG car docs./desig. plate allocation)
except code C13 (Front bumper in steel)

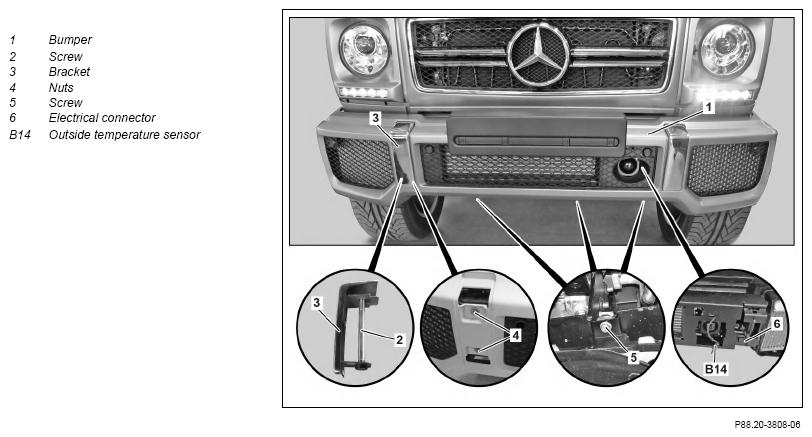

Fig 1: Front Bumper Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019 With Code 990 Except Code C13
| Remove/install | |||
| Remove screw/bolt (2) | |||
| Pull out bracket (3) | |||
| Unscrew screw (5) | |||
| Unscrew nuts (4) | |||
| Unclip outside temperature sensor (B14) from the bumper (1) | |||
| Disconnect electrical connector (6) | |||
| Remove bumper (1) forward | |||
| Install in the reverse order |
