Remove/Install Bumper Body-Styling Bar - AR88.30-P-0025XG
Model 463 (except 463.276/277)
as of model year 2019
with code C74 (Impact protection, painted black)
Model 463 (except 463.276/277)
as of model year 2019
with code C75 (Stainless steel brush guard)
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||

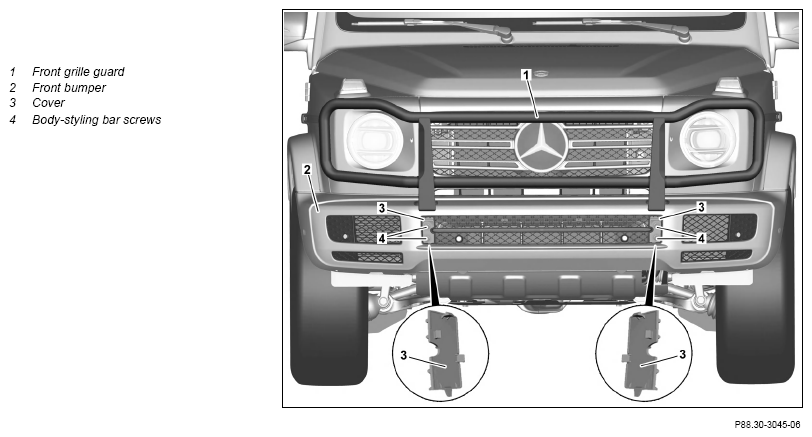

| 1 | Unclip trims (3) in upper area from front bumper (2) and remove upwards out of bumper (2). | Fig 1 | |
| 2 | Remove body-styling bar screws (4) at crossmember. | *BA88.30-P-1016-01C | |
| 3 | Remove body-styling bar (1) upwards out of front bumper (2). | ||
| 4 | Install in reverse order. |
DETACHABLE BODY COMPONENTS, UNDERRIDE GUARD
| Number | Designation | Model 463 up to model year 2019 | Model 463 as of model year 2019 | ||
|---|---|---|---|---|---|
| BA88.30-P-1016-01C | Bolt, mounting console/front grille guard to crossmember | M10 | Nm | - | 63 |
