Replace Front Reinforcement - Ar62.30-P-1400XG
Model 463
as of model year 2019
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove | |||
| 1 | Remove detachable parts in area of repair point. | ||

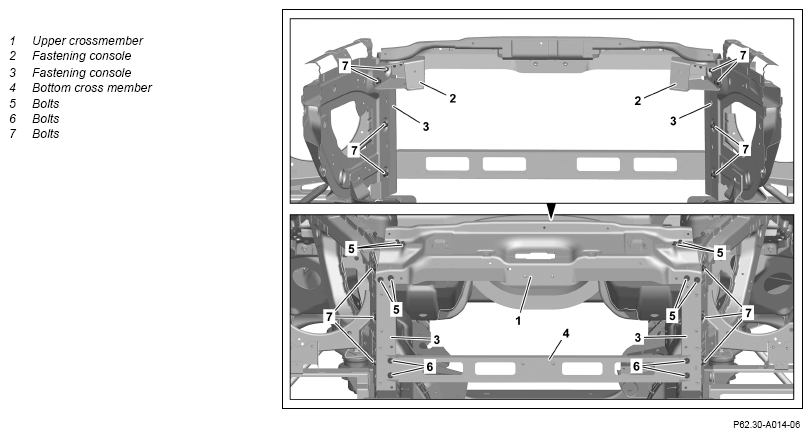

| 2 | Remove screws (7) from the mounting supports (3). | ||

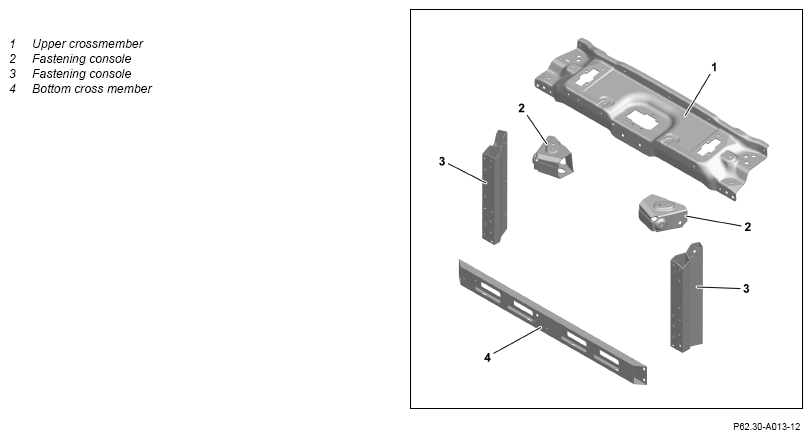

| 3 | Remove top crossmember (1) and bottom crossmember (4) together with the mounting supports (2, 3). | ||
| Install | |||
| 4 | Install mounting supports (2, 3) and screw in screws (7) up to end stop. | ||
| 5 | Install top crossmember (1) and screw in screws (5) up to end stop. | ||
| 6 | Install bottom crossmember (4) and tighten screws (6). | as of model year 2019 Bolt, mounting support to connecting carrier/side wall |
*BA62.30-P-1008-01J |
| 7 | Tighten the screws (7). | as of model year 2019 Bolt, side wall to connecting carrier |
*BA62.30-P-1007-01J |
| 8 | Tighten screw screw/bolts (5). | as of model year 2019 Bolt, front crossmember (top) to connecting carrier/mounting support |
*BA62.30-P-1005-01J |
| 9 | Apply wax at connections to body. | Cavity preservation (free of solvents), 1 liter | *BR00.45-Z-1003-05A |
| 10 | Install all detachable parts in area of repair point. | ||

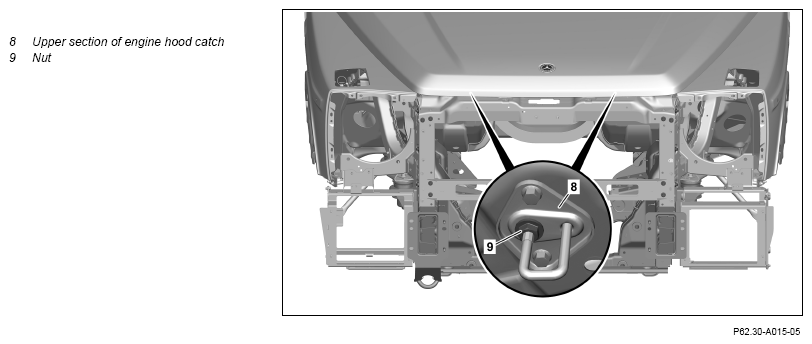

| 11 | Adjust height of the hood flush to the left and right fender by turning the nut (9) on the left and right hood catch upper section (8). |
CROSS MEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA62.30-P-1005-01J | Bolt, front crossmember (top) to connecting carrier/mounting support | M8 | Nm | 22 |
CROSS MEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA62.30-P-1007-01J | Bolt, side wall to connecting carrier | M8 | Nm | 22 |
CROSS MEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA62.30-P-1008-01J | Bolt, mounting support to connecting carrier/side wall | M8 | Nm | 22 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-05A | Cavity preservation (free of solvents), 1 liter | A 000 986 72 70 10 |
